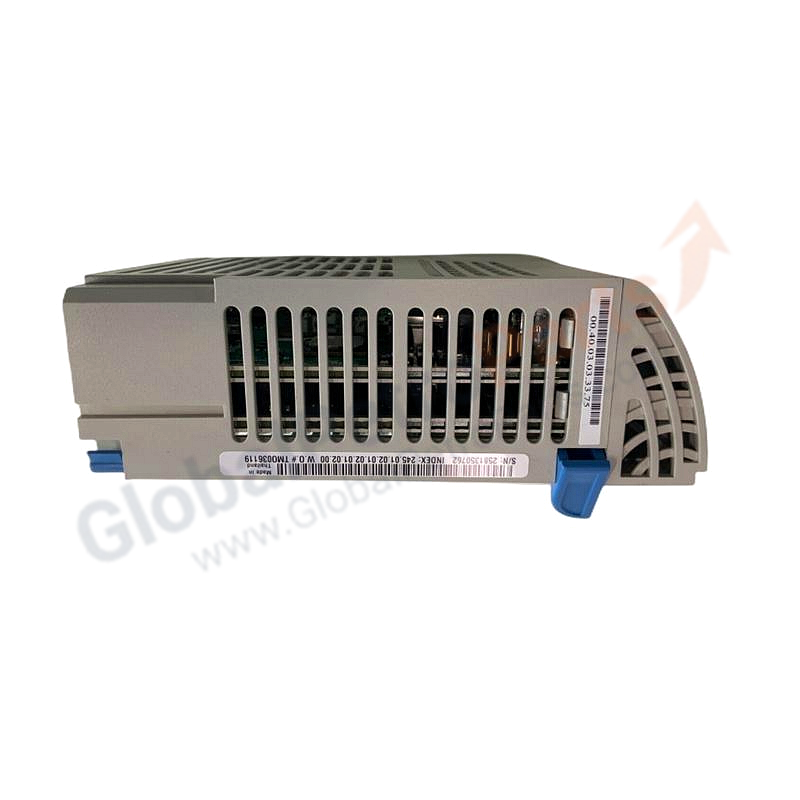

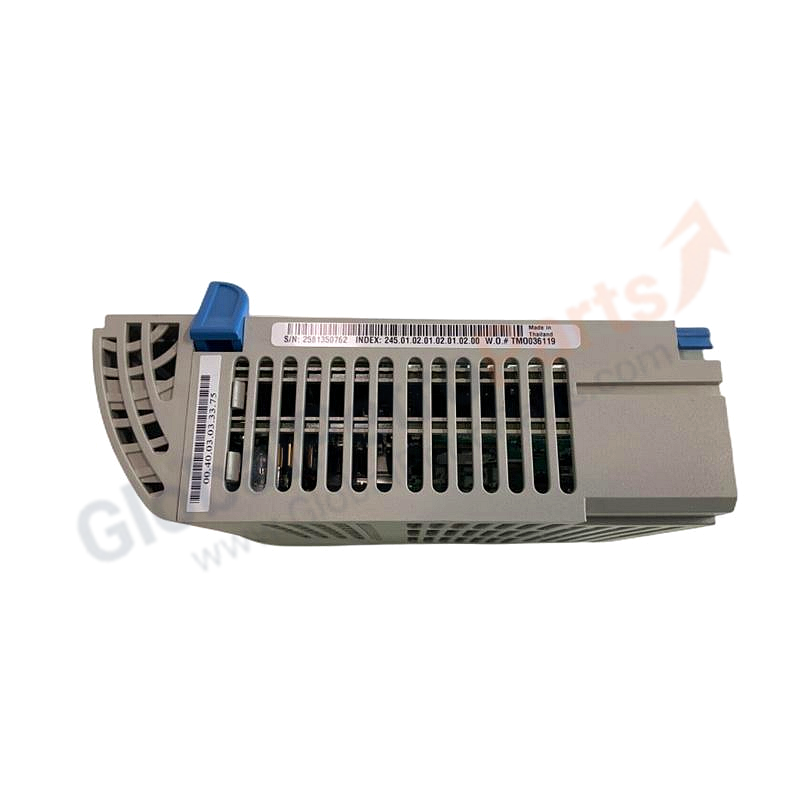

Westinghouse Ovation 5X00481G01 OCR1100 Controller Atom CPU Module

Product Summary

The Emerson Ovation 5X00481G01 is an OCR1100 Controller Atom CPU Module for the Emerson Ovation distributed control system (DCS). It serves as the core processing unit, executing control strategies, data acquisition, and system communication for power generation, oil & gas, and water treatment applications. The module features an Intel Atom processor, solid-state storage, and multiple communication interfaces in a rugged, hot-swappable design.

Core Specifications

• Model Number: 5X00481G01
• Type: OCR1100 Controller Atom CPU Module
• Processor: Intel Atom E6400 @ 1.2 GHz (some variants use Atom D525 @ 1.8 GHz)
• Memory: 1 GB DDR2 SDRAM (or 2 GB DDR3 on some variants)
• Storage: 4 GB solid-state drive (SSD) or eMMC
• Operating System: Windows Embedded Standard 7
• Communication: 2× Ethernet ports, 2× USB ports, 1× RS-232 port
• Power Supply: 24V DC
• Power Consumption: <25W
• Dimensions: 140 × 100 × 25 mm (5.51 × 3.94 × 0.98 in)
• Weight: 370 g (13 oz)
• Manufacturer: Emerson (formerly Westinghouse)

Key Features

• High-performance Intel Atom processor for real-time control algorithms
• Solid-state storage for reliable operation without moving parts
• Dual Ethernet ports for redundant network connectivity
• Hot-swappable design minimizes downtime during maintenance
• Rugged construction withstands harsh industrial environments
• Supports redundant controller configurations for high availability

Environmental Limits

• Operating Temperature: -40°C to +70°C (-40°F to 158°F)
• Storage Temperature: -55°C to +85°C (-67°F to 185°F)
• Humidity: 0% to 95% RH, non-condensing
• Vibration: 5 g RMS, 10 Hz to 500 Hz
• Shock: 15 g, 11 ms half-sine; 30 g on some variants

Frequently Asked Questions

What is the 5X00481G01 used for?

It is the core CPU module for Emerson Ovation DCS systems, executing control strategies, data acquisition, and communication for industrial process control.

What processor does the 5X00481G01 use?

Most sources indicate an Intel Atom E6400 @ 1.2 GHz. Some suppliers list the Atom D525 @ 1.8 GHz. Verify exact processor with your supplier before ordering.

Does the 5X00481G01 support redundancy?

Yes — it supports hot-standby redundant controller configurations when paired with a second OCR1100 module, providing bumpless failover.

What is the difference between 5X00481G01 and 5X00481G04?

The 5X00481G04 is a related OCR1100 controller CPU card with potentially different memory, storage, or firmware configuration. Consult Emerson for specific differences.

Installation Guide

Safety Precautions

• De-energize the Ovation controller rack before installation
• Use proper ESD protection when handling the CPU module
• Verify firmware compatibility with existing Ovation system

Step-by-Step Procedure

1. Power down the Ovation controller rack
2. Remove the existing CPU module (if replacing)
3. Align the 5X00481G01 with the rack slot and insert firmly
4. Secure the module retaining clips
5. Connect Ethernet, USB, and serial cables as required
6. Power up the rack and verify boot sequence via status LEDs

Selection Tips

• Verify processor variant (E6400 vs D525) with your supplier before ordering
• Confirm memory and storage capacity meet your application requirements
• For redundant systems, order two identical modules with same firmware revision
• Ensure Windows Embedded Standard 7 license is included for new units

Related Part Numbers

• 5X00481G04 — OCR1100 Controller CPU Card (alternate variant)
• 5X00226G02 — I/O Interface Module
• 5X00357G04 — Enhanced Events Input Module
• 5X00594G01 — Ovation I/O Module (compatible)
• 1X00416H01 — Ovation Power Supply Module
