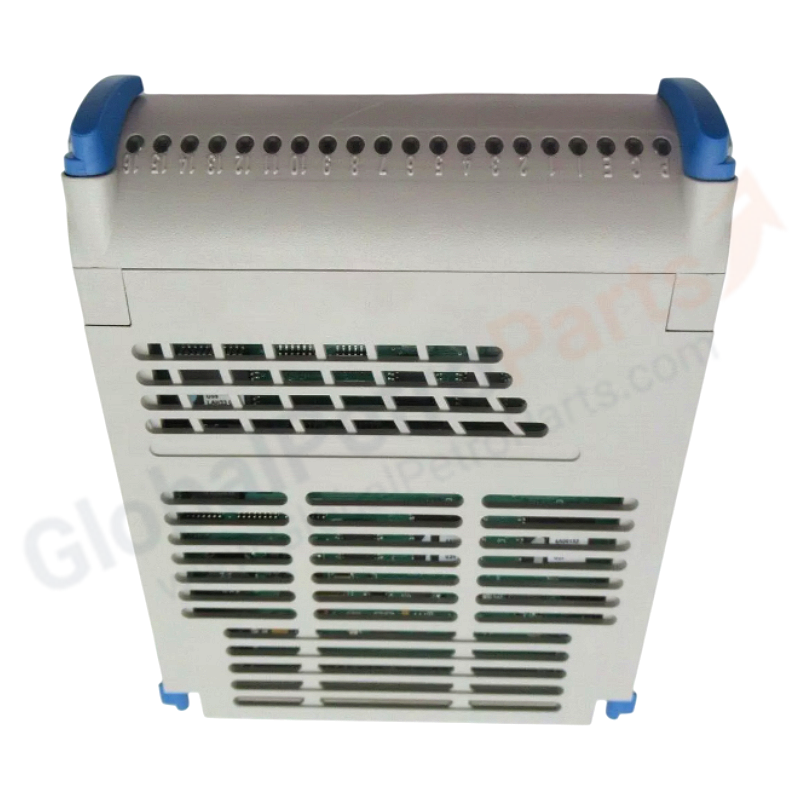

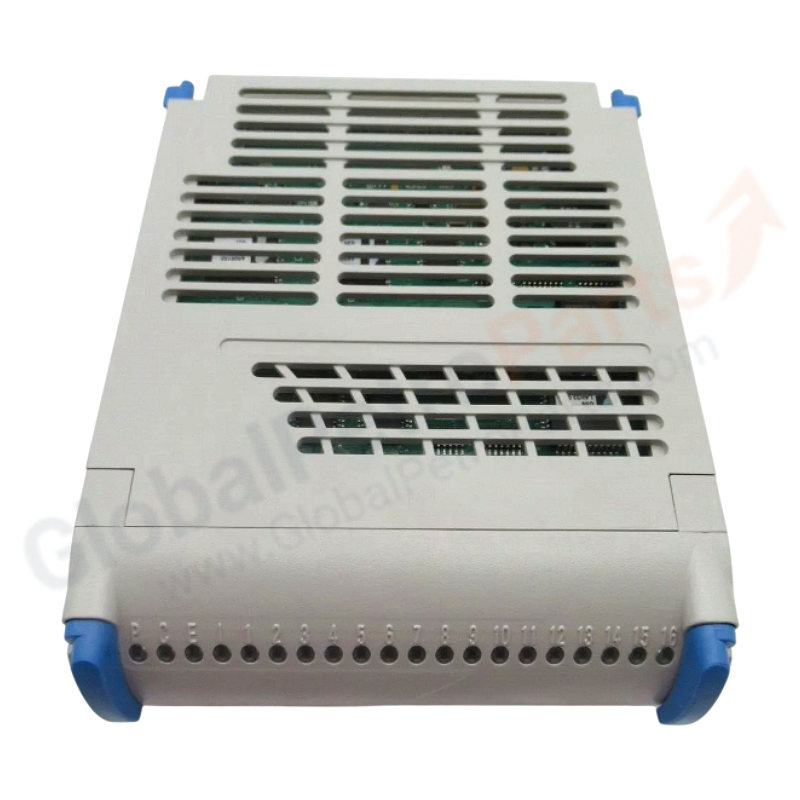

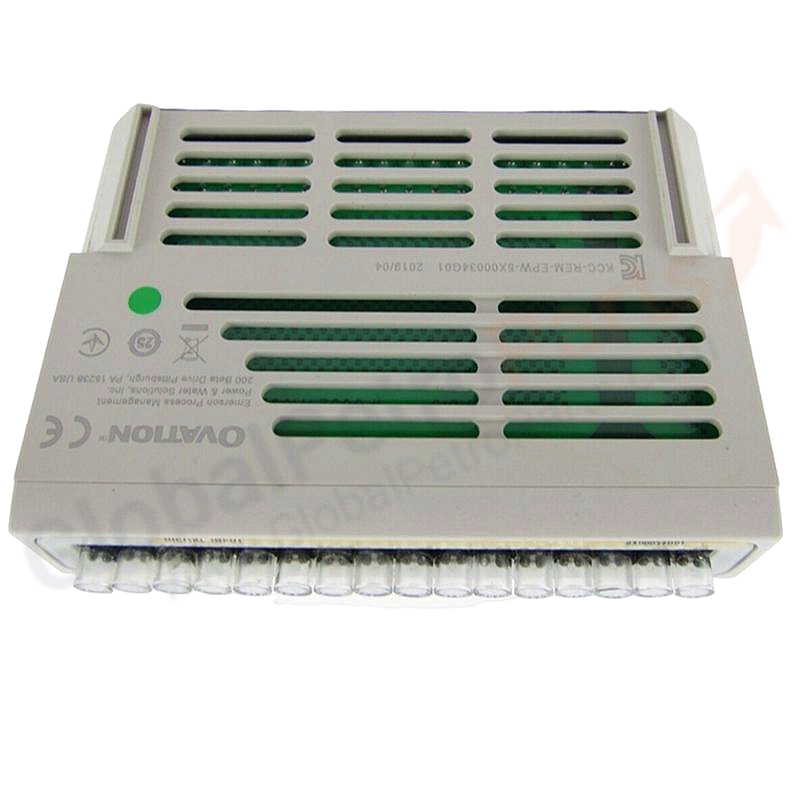

Westinghouse Ovation 5X00500G01 32 Channel Digital Output Module

Overview

The Emerson 5X00500G01 is a 32-Channel Digital Output Module for the Ovation™ distributed control system. It provides discrete output control for driving field devices such as solenoids, relays, and indicators in industrial automation applications.

Technical Specifications

• Manufacturer: Emerson (Westinghouse)
• Model: 5X00500G01
• Type: 32-Channel Digital Output Module
• Output Current: 500 mA per channel
• Total Module Current: 2 A maximum
• Output Voltage: 24 VDC
• Weight: 0.3 kg

Key Features

• 32-channel high-density digital output for maximum I/O capacity
• 500 mA per channel with 2 A total module capacity
• Optical isolation protects against ground loops and transients
• LED diagnostics for channel status and module health

FAQ

Q: What is the maximum current per channel?
A: Each channel supports up to 500 mA, with a total module limit of 2 A.

Q: Can I drive relays with this module?
A> Yes, the 24 VDC output is suitable for driving standard industrial relays and solenoids.

Selection Tips

• Choose 5X00500G01 when you need 32 channels of discrete output control.
• Calculate total current draw to ensure the 2 A module limit is not exceeded.
