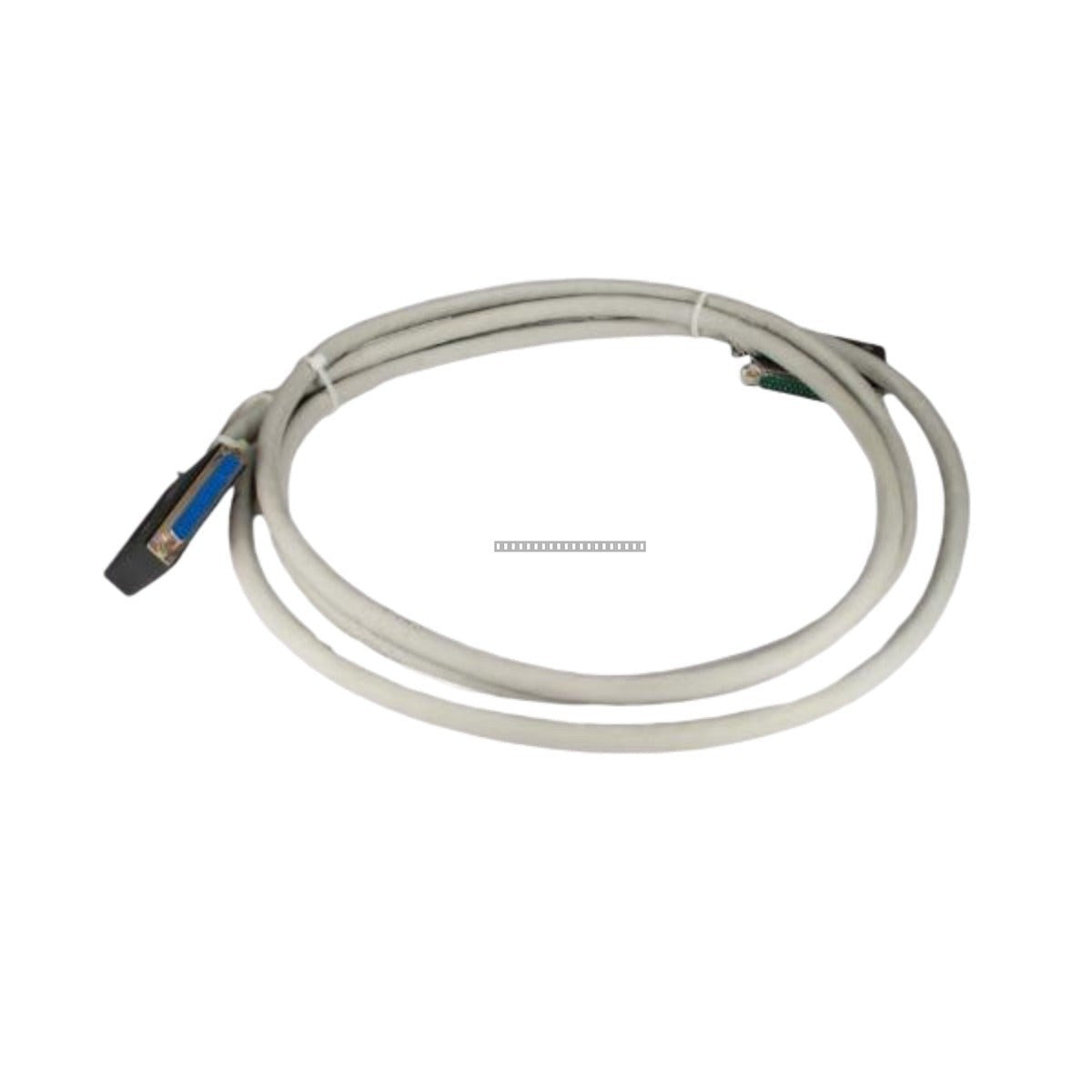

Woodward 5417-040 Netcon Analog Cable Assembly

Description

The Woodward 5417-040 is a high-integrity 10-foot analog interface cable designed specifically for Netcon 4700 series control systems. This low-density cable assembly provides the critical physical link between analog I/O modules and field termination blocks. Engineered for precision signal transmission in demanding industrial environments such as gas turbine power plants and petrochemical refineries, the 5417-040 ensures minimal signal attenuation and high noise rejection. Proper utilization of this standardized cabling solution is vital for maintaining sensor accuracy and reducing system troubleshooting time, thereby ensuring continuous operation of mission-critical machinery.

Interconnect Architecture

This cable features a specialized low-density pin configuration optimized for analog voltage and current signals. The assembly utilizes high-grade shielded twisted-pair wiring to protect sensitive low-level signals from electromagnetic interference (EMI). Robust strain relief at the connector headers prevents mechanical failure caused by vibration or improper routing within the control cabinet. The 10-foot length is standardized for typical chassis-to-terminal-strip distances, ensuring a clean and manageable cable path that simplifies system maintenance and module replacement.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before connecting or disconnecting the cable assembly to prevent electrical damage to I/O modules.
• Route the cable away from high-voltage power lines and high-EMI sources to maintain signal integrity.
• Utilize the integrated strain relief to secure the cable at both connection points, preventing mechanical stress on the connector pins.
• Ensure that the cable is not bent beyond its minimum bend radius during installation to avoid internal conductor damage.
• Verify that all connector pins are aligned correctly before seating the header to prevent bent or broken pins.

FAQ

What is the primary function of the Woodward 5417-040 cable?

The 5417-040 is an analog interface cable designed to connect analog I/O modules to field termination blocks within the Woodward Netcon 4700 control system architecture.

Is this cable shielded?

Yes, the assembly utilizes high-grade shielded twisted-pair wiring to minimize electromagnetic interference (EMI) and ensure accurate transmission of sensitive analog voltage and current signals.
