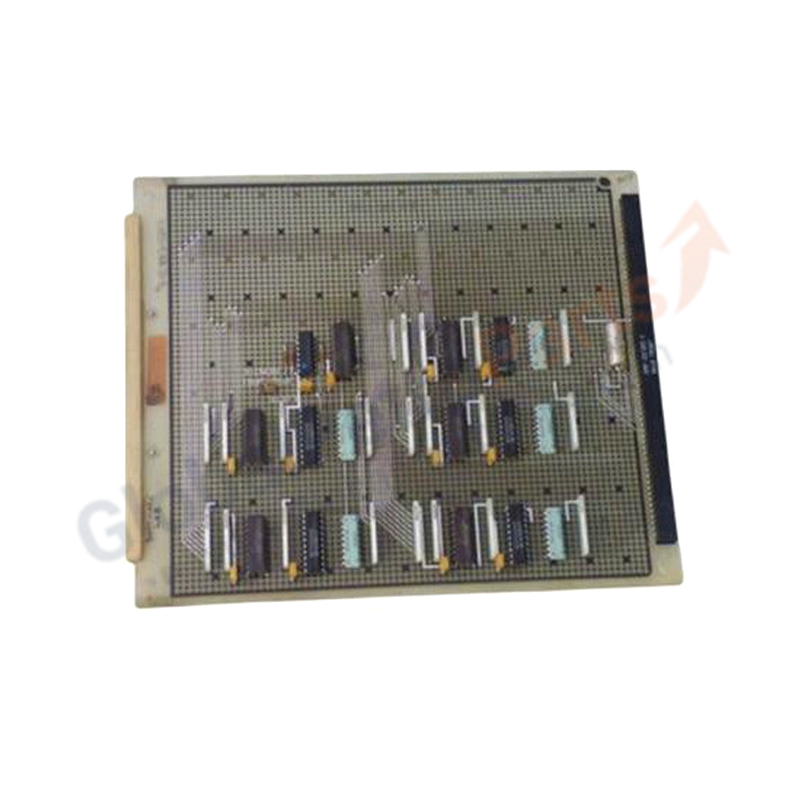

Woodward 5461-648 Transceiver/T/C Module

Product Overview

The Woodward 5461-648 is a Transceiver Module (also referred to as T/C Input/Transceiver Module) designed for use in turbine control systems, particularly steam turbines. This module efficiently manages speed/frequency inputs from sensors such as magnetic pickups and provides both digital and analog I/O signals. It ensures reliable operation with critical safety features including auto-start, shutdown control, and critical speed avoidance, and is often integrated into larger Woodward control systems to enhance overall turbine functionality and safety.

Key Technical Specifications

• Product Type: Transceiver Module / T/C Input Module
• Series: Woodward 5461 Series
• Function: Signal conversion (speed/frequency)
• Application: Turbine control (steam turbines)
• I/O Types: Digital I/O, Analog I/O (4–20 mA, 0–10V)
• Communication Ports: RS-232, RS-485, Ethernet
• Safety Features: Auto-start, Shutdown, Critical speed protection
• Module Revisions: Rev F, Rev D (and others)
• Compatibility: Woodward turbine governors and control systems
• Origin: USA

Key Features

• Signal Conversion: Converts speed and frequency signals from magnetic pickups for precise turbine control
• Versatile I/O: Digital and analog outputs including 4–20 mA and 0–10V signals
• Multiple Communication Options: RS-232, RS-485, and Ethernet for flexible system integration
• Critical Speed Protection: Essential for protecting turbine and associated equipment from damage due to excessive speed
• Auto-Start & Shutdown: Safe operation capabilities crucial for turbine startup and shutdown sequences
• Governor Compatibility: Works seamlessly with Woodward governors and other turbine control components

Applications

• Steam turbine speed/frequency signal processing
• Turbine auto-start and shutdown sequencing
• Critical speed avoidance protection
• Woodward governor system integration
• Power generation turbine control

Installation Guide

1. Install in Woodward control chassis at designated slot
2. Connect magnetic pickup speed sensor inputs
3. Wire digital and analog I/O to field devices
4. Connect RS-232/RS-485/Ethernet for system communication
5. Configure auto-start, shutdown, and critical speed parameters
6. Test signal conversion accuracy and safety function response

FAQ

Q: What sensors does it interface with?
A: Magnetic pickup (MPU) speed sensors for speed/frequency signal acquisition.

Q: What analog output signals does it provide?
A: 4–20 mA and 0–10V analog outputs for control and monitoring.

Q: What communication protocols are supported?
A: RS-232, RS-485, and Ethernet.

Q: What safety features are included?
A: Auto-start, shutdown control, and critical speed avoidance protection.

Model Selection Tips

• 5461-648 = Transceiver/T/C Input Module for steam turbine control
• Verify MPU sensor specifications (gap, voltage output) match module input requirements
• Confirm required I/O types (digital vs. analog) and communication protocol
• Check revision compatibility (Rev F, Rev D) with existing system
• For analog output only, consider 5461-644; for speed input, consider 5461-647
