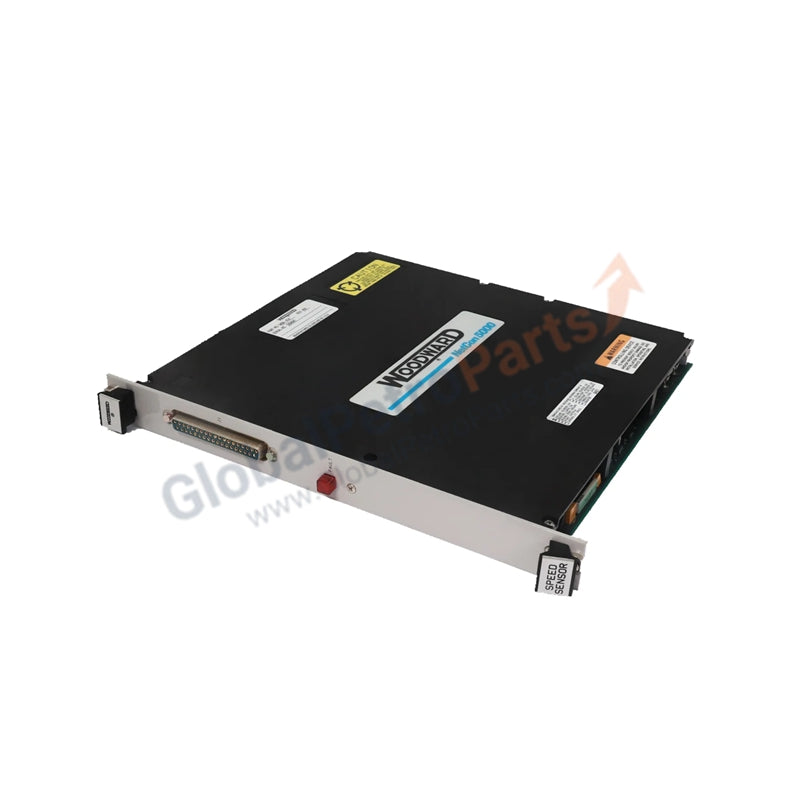

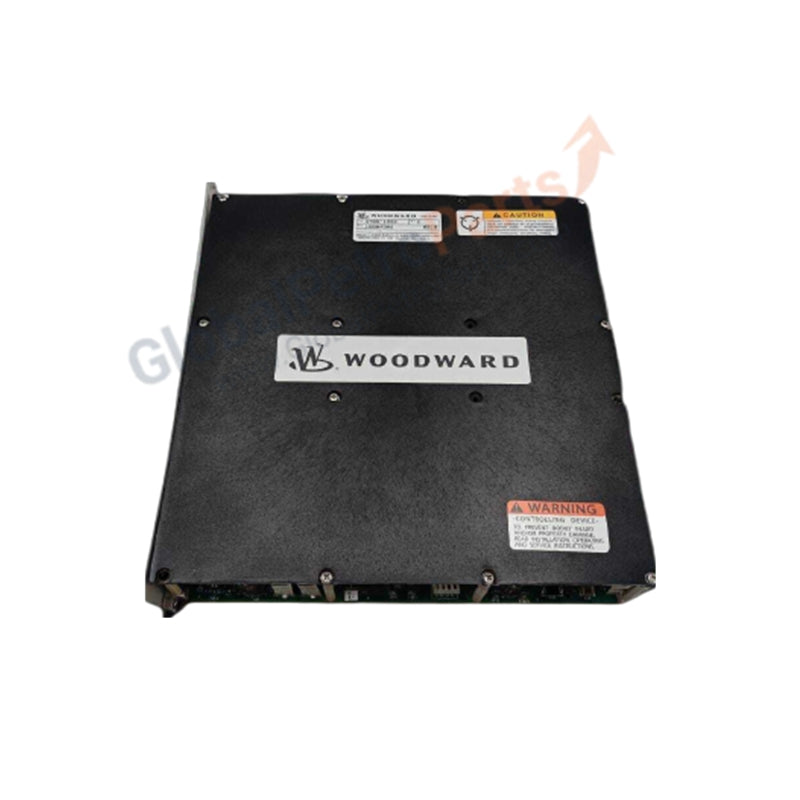

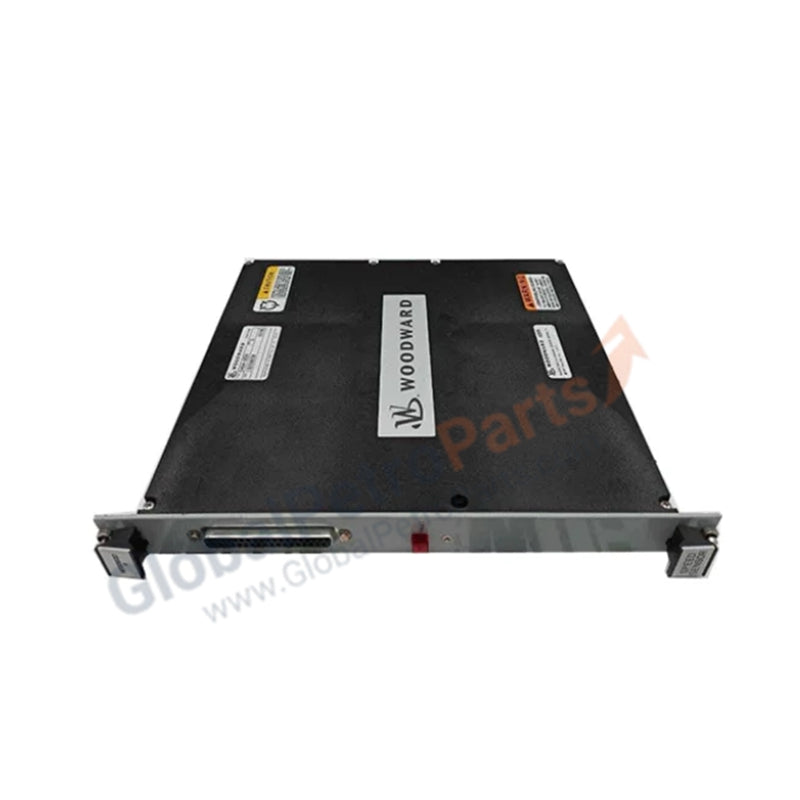

Woodward 5466-1000 MicroNet Plus 24VDC Power Supply PLC Card

5466-1000 Woodward MicroNet Plus 24VDC Power Supply Control Module

The 5466-1000 serves as a dual-function power supply and control interface within the Woodward MicroNet Plus digital controller platform. Engineered for mission-critical turbine and engine management, this module provides the necessary voltage regulation and processing overhead to manage complex closed-loop automation tasks. It facilitates high-speed synchronization, load sharing, and overspeed protection for gas and steam turbines, ensuring operational stability in demanding industrial power environments.

5466-1000 Technical Specifications

The following parameters define the operational limits and hardware capabilities of the 5466-1000 (Part Number: 5466-1000) module.

• Series: MicroNet Plus Digital Control System

• Input Voltage: 24 VDC (LVD and UL compliant)

• Input Range: Supports redundant power supply configurations

• Power Consumption: 13.5 Watts (typical), 15.0 Watts (maximum)

• Processor Architecture: 32-Bit real-time multitasking operating system

• Discrete Slots: Occupies 2 slots in a MicroNet chassis

• Communication Protocols: Modbus TCP (Dual Ethernet), Modbus RTU (RS-485)

• Front Panel Ports: Up to 3 RS-485 serial ports for localized diagnostics

• Operating Temperature: -40°C to +70°C (Industrial Grade)

• Storage Temperature: -55°C to +85°C

• Diagnostics: Integrated Fault LEDs for CPU, actuator, and internal hardware monitoring

• Module Weight: 0.49 kg (1.08 lbs)

• Certifications: CSA Certified
