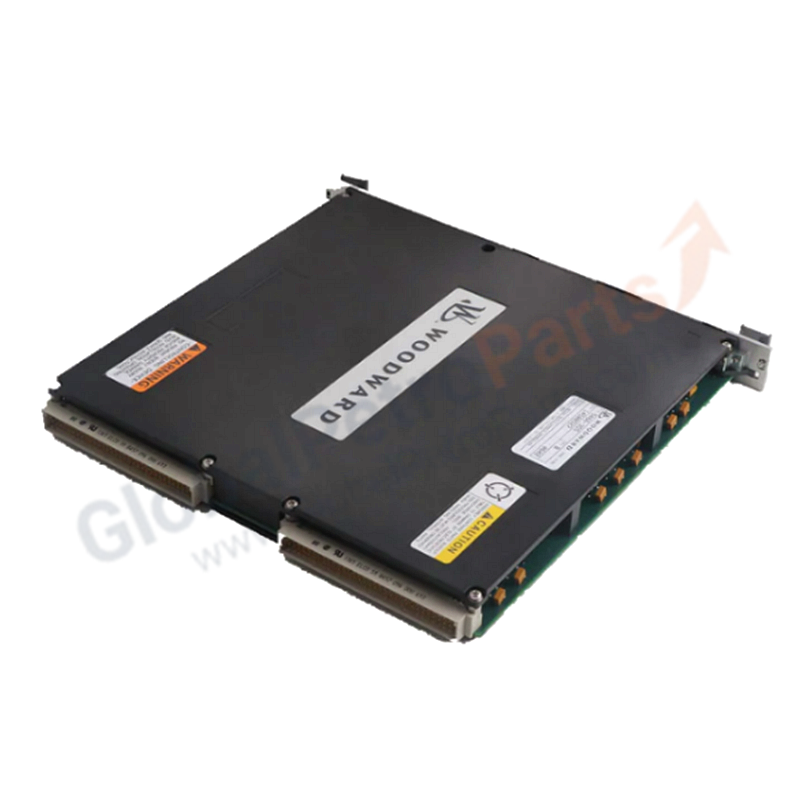

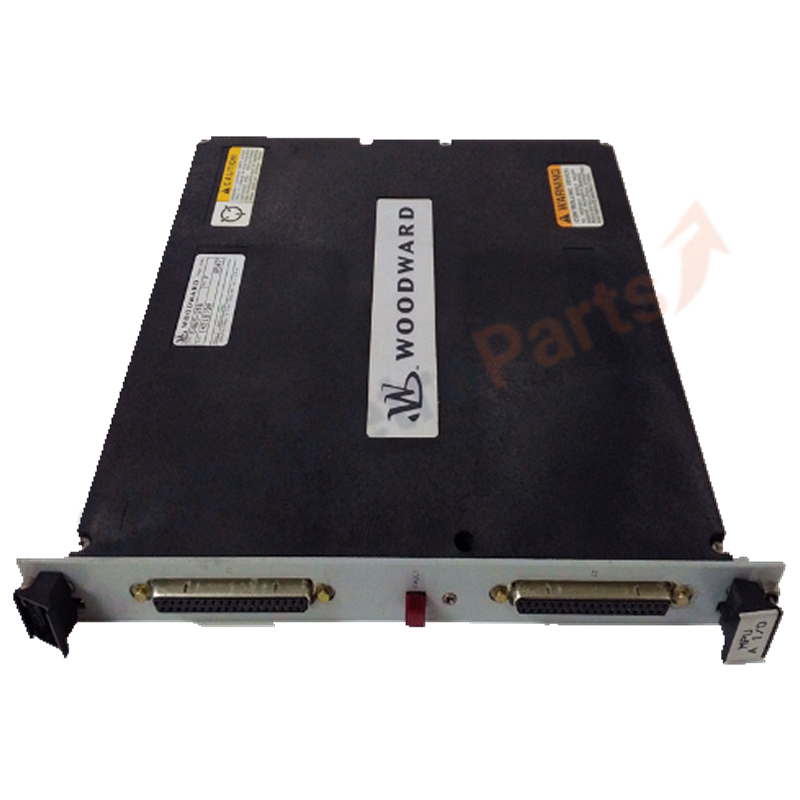

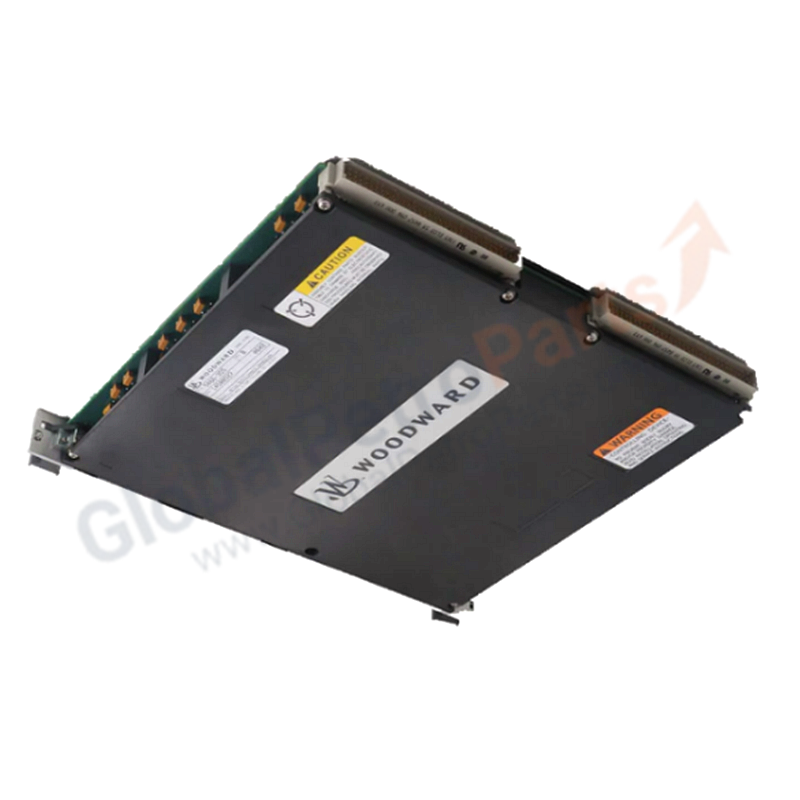

Woodward 5503-335 MicroNet 5200 CPU Module

Product Overview

The Woodward 5503-335 is a MicroNet CPU Module from Woodward's MicroNet control system family. It serves as the central processing unit for MicroNet-based turbine, engine, and generator control systems, executing real-time control algorithms, managing I/O communications, and coordinating system operations. The 5503-335 is designed for high-performance industrial control with deterministic execution and robust reliability.

Key Technical Specifications

• Product Type: MicroNet CPU Module
• Series: Woodward MicroNet
• Function: Central Processing Unit
• Processor: High-performance industrial microprocessor
• Memory: On-board RAM and Flash for application storage
• Communication: Industrial Ethernet, Modbus, Profibus
• Mounting: MicroNet chassis slot-mounted
• Origin: USA

Related MicroNet Modules

• 5503-173 — MicroNet VME CPU Adapter
• 5503-279 — TC/RTD Module
• 5503-282 — FTM, Analog
• 5503-335 — CPU

Key Features

• Real-Time Control: Deterministic execution of control algorithms
• Multi-Protocol Communication: Supports Ethernet, Modbus, and Profibus
• I/O Management: Coordinates analog and digital I/O modules
• Redundancy Support: Compatible with MicroNet TMR configurations
• Industrial Grade: Designed for continuous operation in harsh environments

Applications

• Gas turbine control systems
• Steam turbine governor control
• Diesel engine management
• Power generation unit control
• Industrial process automation

Installation Guide

1. Install in MicroNet chassis CPU slot
2. Connect 24V DC power supply
3. Wire Ethernet/communication cables
4. Install I/O modules in adjacent slots
5. Download control application via Woodward tools
6. Configure I/O mapping and control parameters
7. Verify real-time execution performance

FAQ

Q: Is 5503-335 a standalone CPU?
A: Yes, it is the main CPU module for MicroNet systems, but requires I/O modules for complete functionality.

Q: Does it support redundancy?
A: MicroNet systems support TMR (Triple Modular Redundancy) with appropriate CPU and I/O module configurations.

Model Selection Tips

• 5503-335 is the MicroNet CPU module — verify chassis compatibility
• For simplex configurations, pair with 5501-371 MPU & AIO modules
• For TMR redundant control, use 5466-318 or 5466-350 TMR CPU modules
• Confirm communication protocol requirements (Ethernet vs. serial)
• Check memory capacity for your control application size
