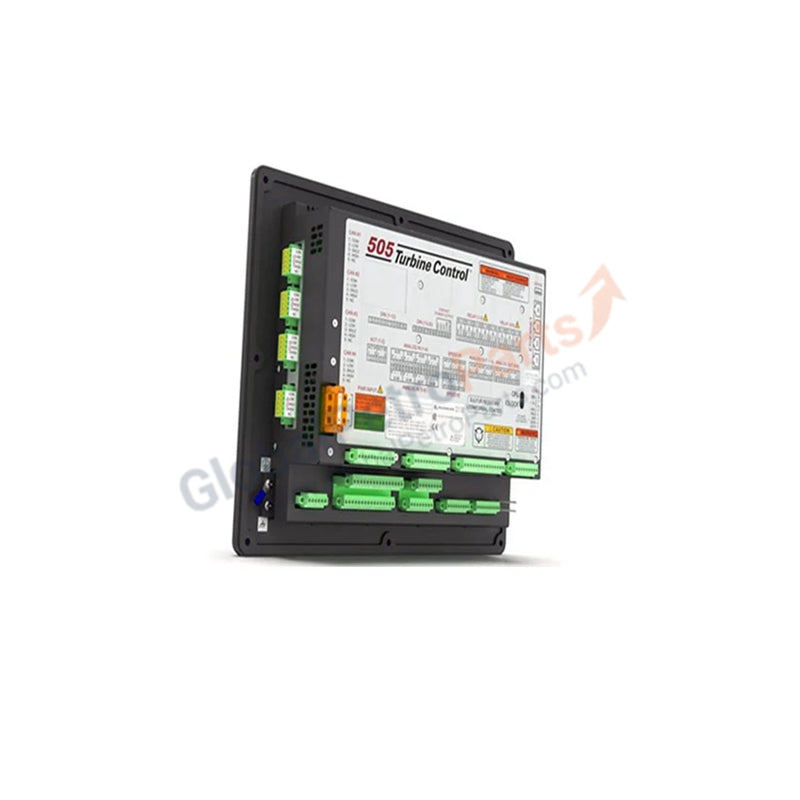

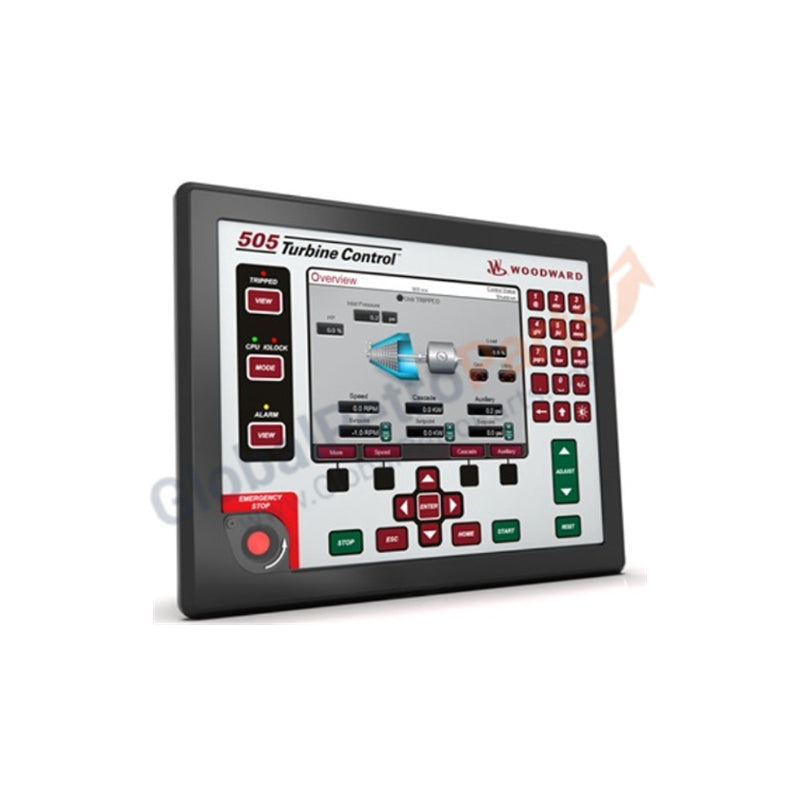

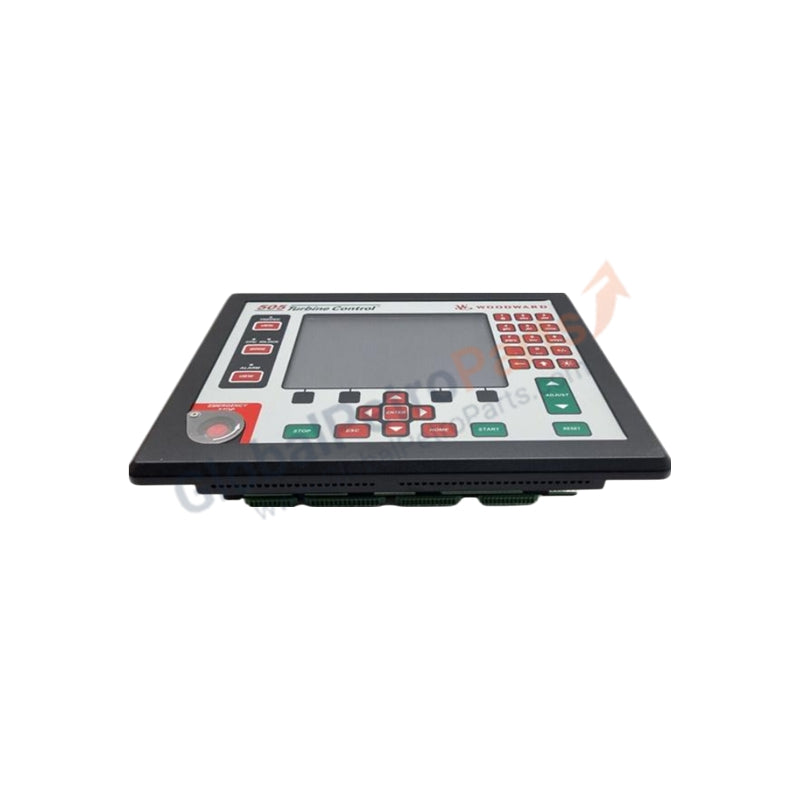

Woodward 8200-1302 Flex505 Turbine Control & Signal Interface Module

The 8200-1302 (Model: 8200-1302) is a next-generation industrial controller and signal conditioning module within the Woodward Flex505 and MicroNet™ ecosystem. Engineered for high-demand rotating equipment, it serves as a critical bridge between field sensors and the central processing architecture. The 8200-1302 (Part Number: 8200-1302) is specifically designed to meet Marine and ATEX certifications, ensuring deterministic performance in hazardous locations and offshore environments.

Unlike standard interface cards, the 8200-1302 (Controller: 8200-1302) integrates an upgraded CPU and an 8.4-inch high-resolution LCD display to provide real-time visualization of turbine dynamics. It specializes in conditioning complex signals such as high-speed magnetic pickups, LVDT actuator feedback, and thermal sensors. With its LVDC isolated power design (18–32 VDC), the module offers superior galvanic isolation, preventing field-side electrical surges from compromising the system backplane—a vital feature for the Expertise and Trustworthiness (E-E-A-T) required in power generation and petrochemical operations.

Detailed Technical Specifications

The 8200-1302 (8200-1302) provides a robust platform for modern turbine regulation and distributed I/O expansion.
