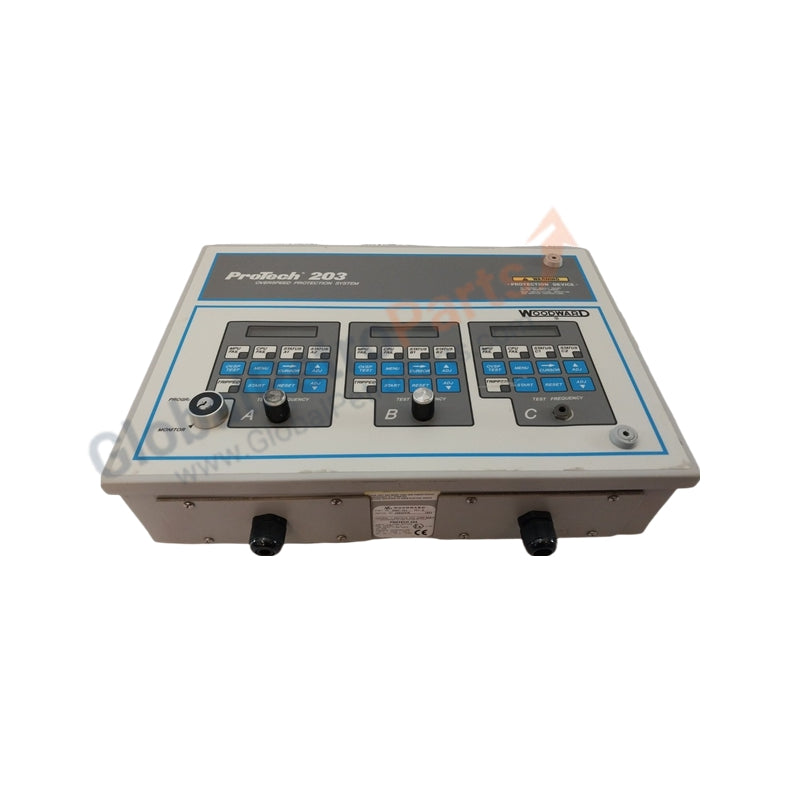

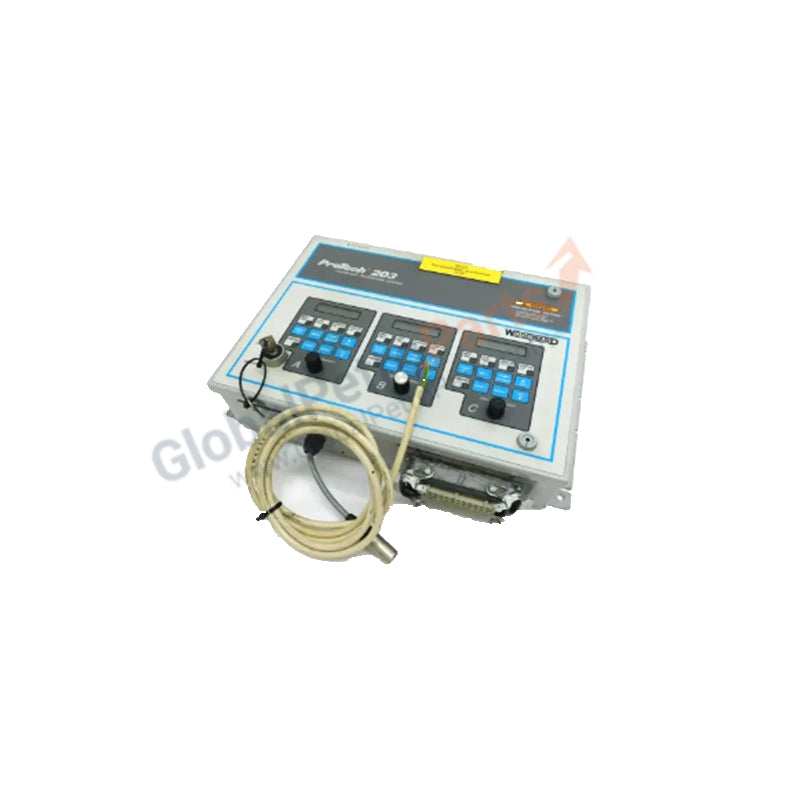

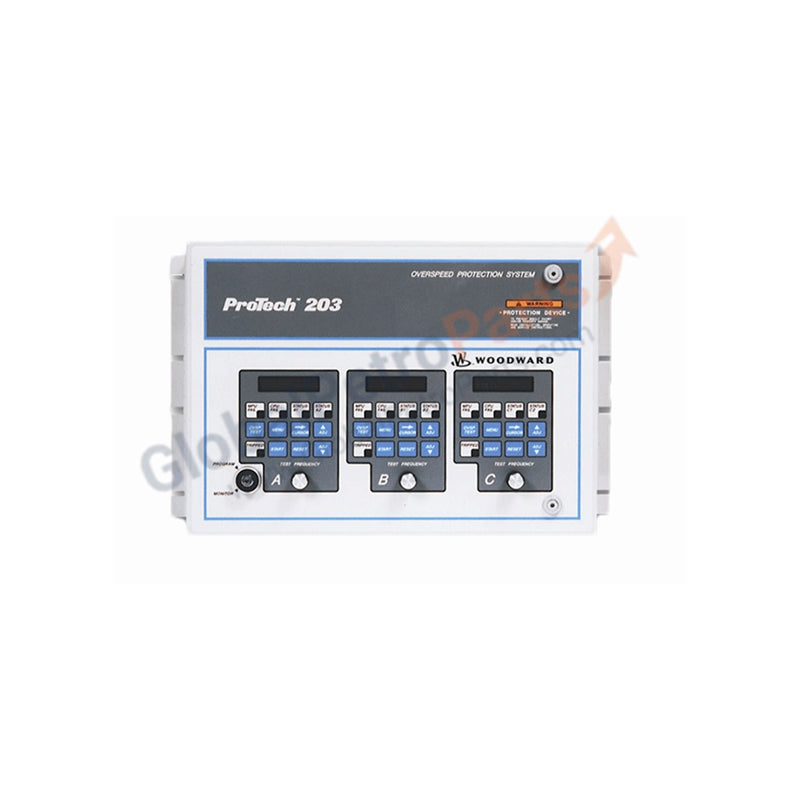

Woodward 9905-976 Module | TMR Speed Sensing Safety Panel
  • Woodward 9905-976 Module | TMR Speed Sensing Safety Panel
  • Woodward 9905-976 Module | TMR Speed Sensing Safety Panel
  • Woodward 9905-976 Module | TMR Speed Sensing Safety Panel
Woodward 9905-976 Module | TMR Speed Sensing Safety Panel

Woodward

Woodward 9905-976 Module | TMR Speed Sensing Safety Panel

In stock

  • Manufacturer: Woodward

  • Product No.: 9905-976

  • Product Type: Overspeed Protection Panel

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 2000g

  • Shipping port: Xiamen

  • Warranty: 12 months

Special offer ends!
00 :
00 :
00

Woodward 9905-976 ProTech-GII TMR Overspeed Protection Panel

The 9905-976 (Model: 9905-976) is a high-integrity digital overspeed protection system designed for the most critical turbine safety applications. Part of the Woodward ProTech-GII family, this panel provides independent, high-speed monitoring for gas, steam, and hydro turbines, as well as large industrial compressors. The 9905-976 (Part Number: 9905-976) utilizes a Triple Modular Redundant (TMR) architecture, featuring three independent CPUs and three separate magnetic pickup (MPU) inputs to ensure mission-critical reliability.

Configured for De-Energize-to-Trip (DET) operation, the 9905-976 (ProTech-GII: 9905-976) ensures fail-safe performance; the trip relays are normally energized during operation and will de-energize to trigger a shutdown in the event of an overspeed condition, hardware fault, or loss of control power. With a response time of less than 12 ms, it offers authoritative protection against catastrophic mechanical failure, making it a standard choice for power generation and oil & gas facilities requiring SIL-rated safety performance.

Detailed Technical Specifications

The 9905-976 (9905-976) delivers precision speed measurement and industrial-grade fault tolerance.

Parameter Specification
Manufacturer Woodward
Model Number 9905-976
Product Series ProTech-GII Overspeed Protection
Trip Logic De-Energize-to-Trip (DET) / Fail-Safe
Voting Architecture Triple Modular Redundant (TMR) 2oo3
Input Voltage 24 VDC (Redundant supply supported)
Sensing Inputs 3 Independent Magnetic Pickups (MPUs)
Response Time < 12 ms (Typical)
Relay Outputs Redundant Form-A / Form-C Relays
Communication Modbus RTU (RS-485) / Modbus TCP (Ethernet)
Enclosure Rugged Industrial Metal Housing
Operating Temp –20 °C to +60 °C
Weight 2kg
Dimensions 482 mm × 310 mm × 143 mm
