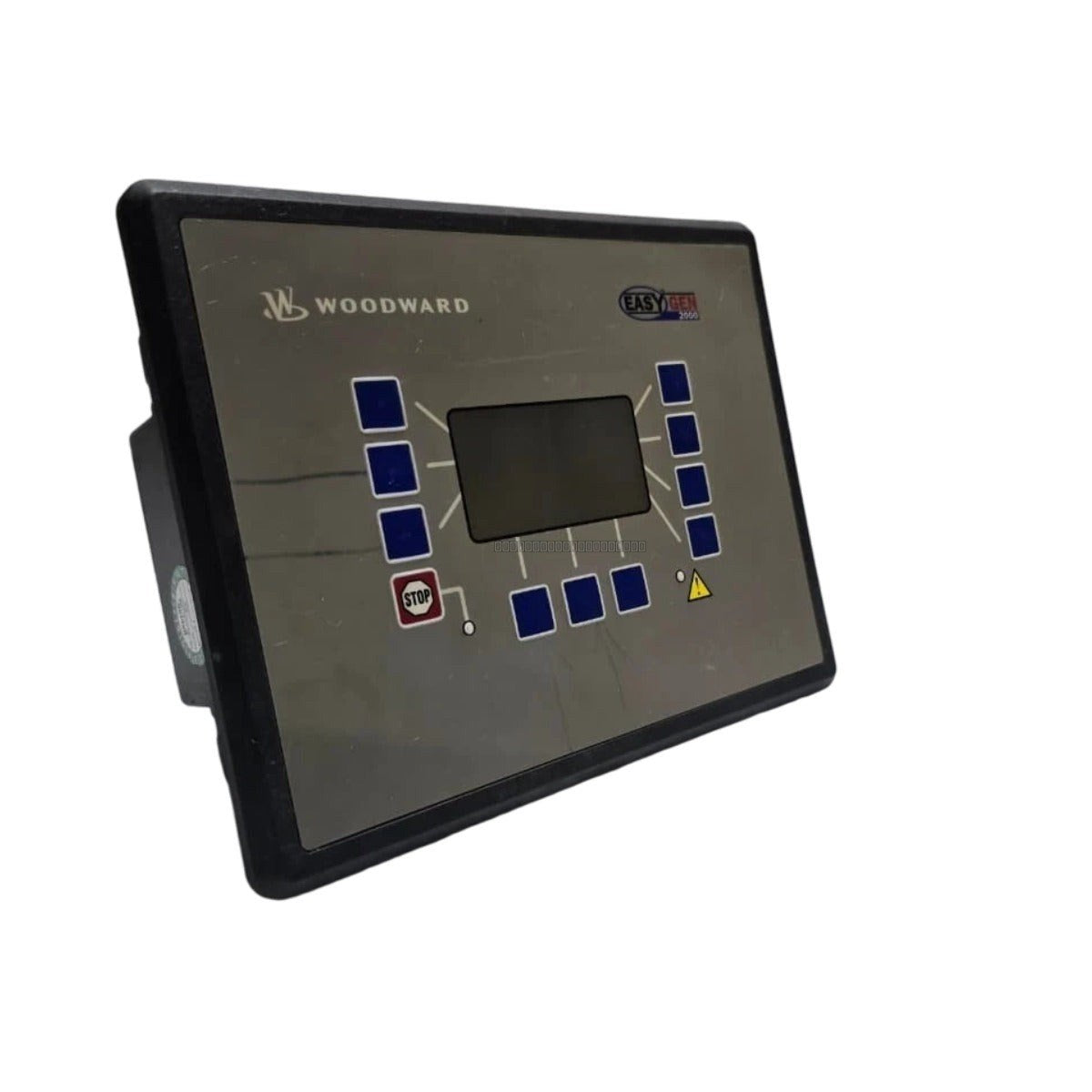

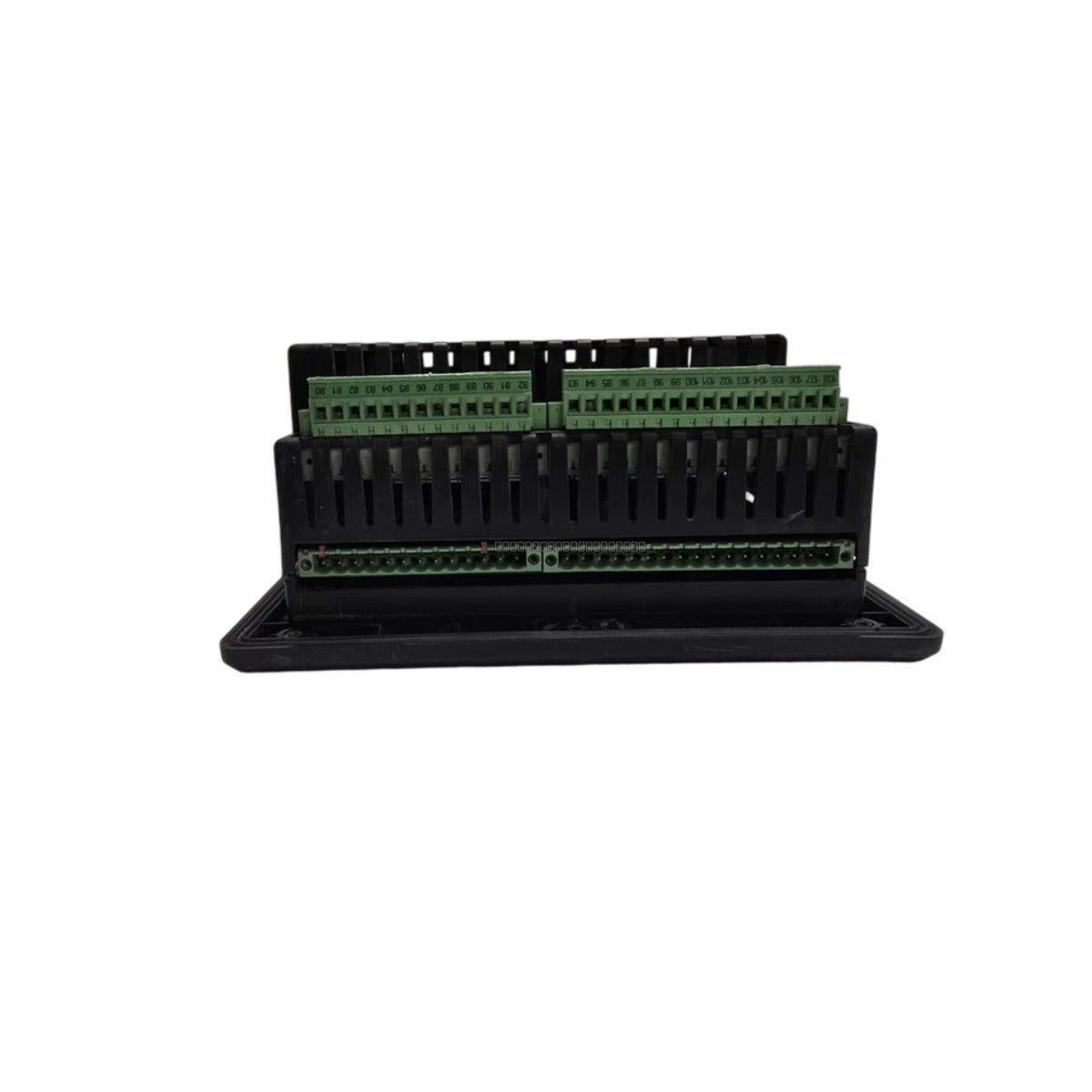

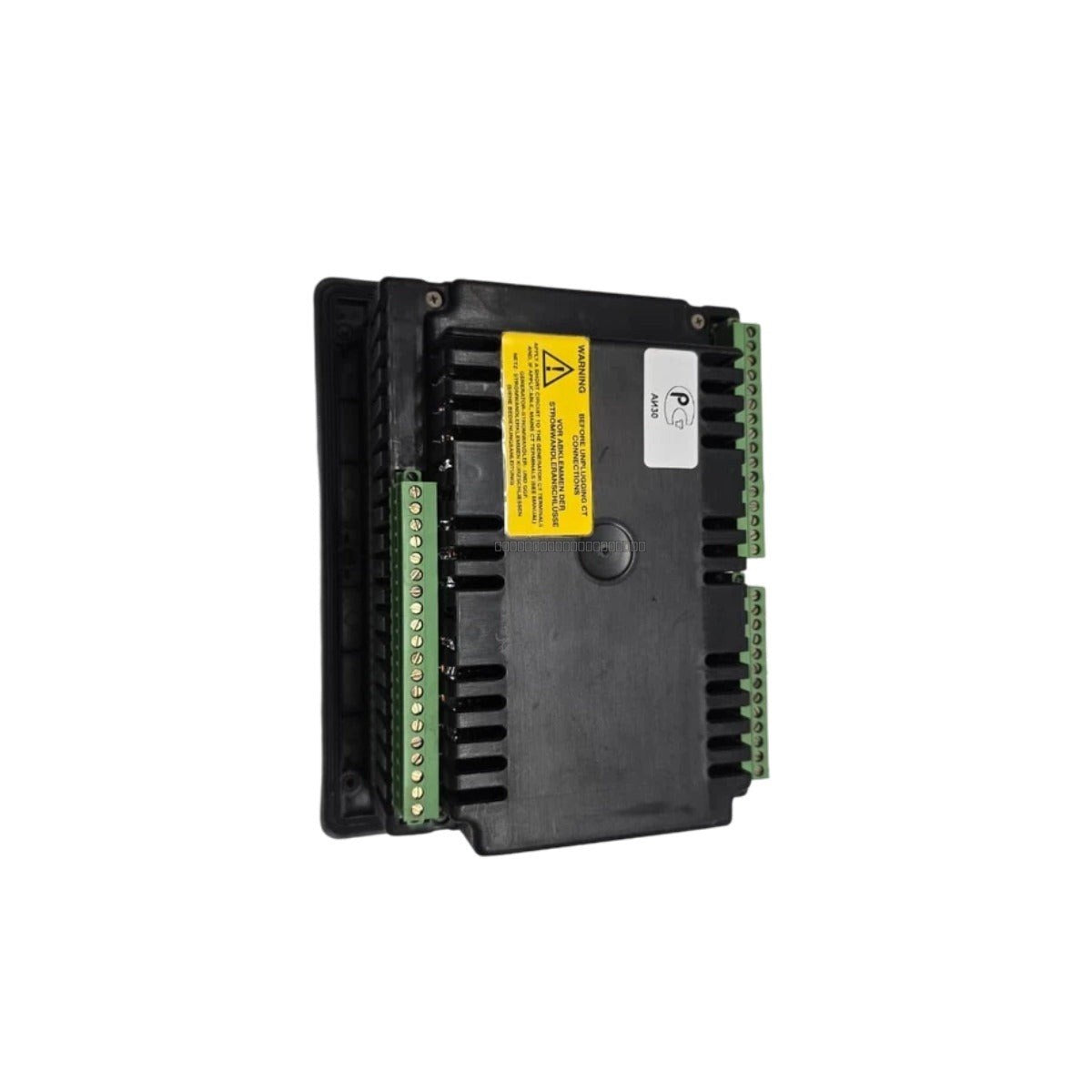

Woodward EASYGEN-2500-5 Genset Controller

Description

The Woodward EASYGEN-2500-5 is a versatile genset control unit designed for complex power management applications. This controller excels in synchronizing and load sharing for up to 32 generators in isolated, island, or utility-parallel operations. Engineered for deployment in data centers, remote mining sites, and emergency standby power plants, the EASYGEN-2500-5 provides automated engine start-stop sequencing and comprehensive protection for both the engine and the alternator. Its high-speed logic processing optimizes fuel efficiency and ensures rapid response to load fluctuations, which is essential for maintaining grid stability and minimizing operational downtime in mission-critical facilities.

Features

• Integrated LogicsManager for programmable I/O responses without external PLC hardware.
• Supports up to 32 generators in parallel configurations.
• Comprehensive engine and alternator protection monitoring.
• Multi-protocol support including CANopen and Modbus RTU for BMS and SCADA integration.
• High-contrast LCD for real-time electrical parameter monitoring and alarm logging.
• Dead-bus closure and automatic synchronization capabilities.

Applications

The EASYGEN-2500-5 is suitable for mission-critical power environments including data centers, industrial manufacturing facilities, remote mining operations, and emergency standby power plants where grid stability and automated load management are required.

Technical Specifications

Installation Guidelines

• Ensure the controller is flush-mounted in a vibration-dampened panel enclosure.
• Maintain proper clearance around the unit to ensure adequate ventilation and heat dissipation.
• Use shielded twisted-pair cabling for all communication interfaces (CANopen/Modbus) to minimize EMI interference.
• Verify supply voltage polarity before powering the unit; ensure the DC supply is within the 8 to 40 VDC range.
• Always disconnect power before performing wiring changes or maintenance on the terminal blocks.
• Ensure a solid chassis ground connection to the panel to prevent electrical noise issues.

FAQ

Does the EASYGEN-2500-5 require an external PLC?

No, the unit features an integrated LogicsManager that allows users to program custom I/O logic directly within the controller, eliminating the need for external PLC hardware for standard power management tasks.

Can this controller manage multiple generators?

Yes, the EASYGEN-2500-5 is designed to support load sharing and synchronization for up to 32 generators in a single system.
