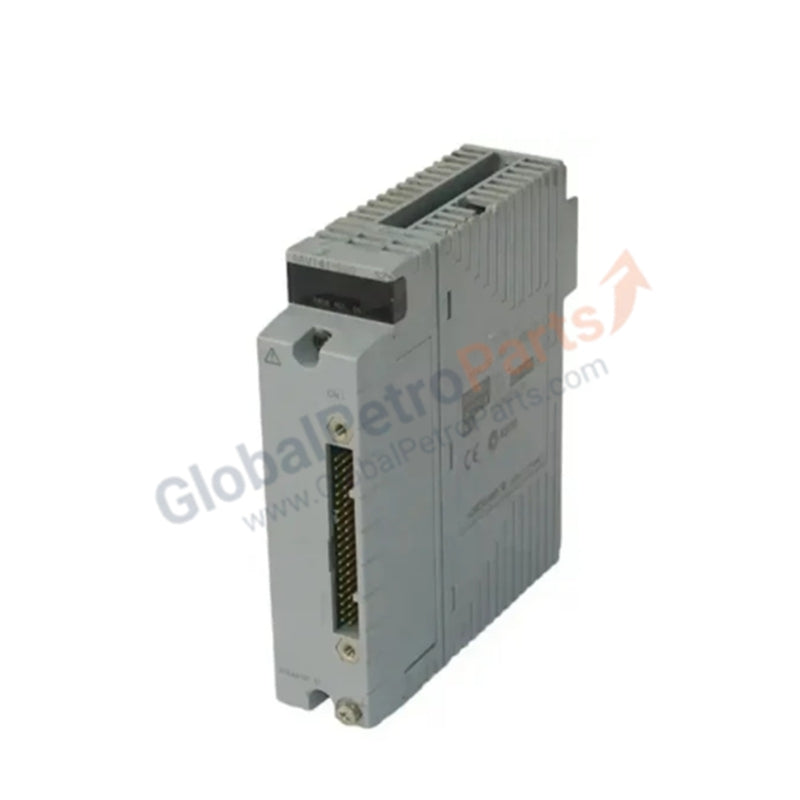

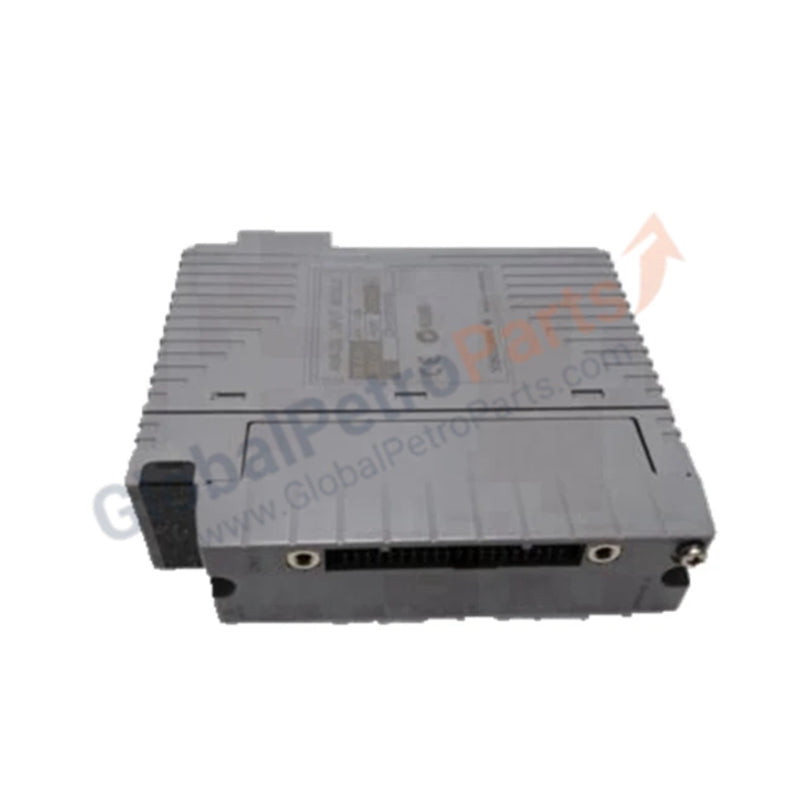

Yokogawa AAI141-H00/K4A00 16-Channel Analog Input Module | CENTUM VP

Product Overview

The Yokogawa AAI141-H00/K4A00 functions as a high-density analog input interface for the CENTUM VP distributed control system. This module captures 4 to 20 mA signals from 16 independent field transmitters, providing the DCS with critical process telemetry. By integrating the HART protocol, it enables bidirectional digital communication, allowing the system to extract device diagnostics and secondary variables directly from smart instruments. This specific configuration includes the /K4A00 option, featuring a factory-installed KS Cable Interface Adapter (Model ATK4A-00) for streamlined connectivity. We provide this unit as 100% Brand New and original to ensure peak measurement accuracy in your control loops.

Part Number Breakdown

The AAI141 series utilizes specific suffix and option codes to define its communication capabilities and physical interface:

Technical Specifications

The AAI141-H00/K4A00 delivers deterministic data acquisition within a compact, rack-mounted form factor.

• Number of Channels: 16 (Non-isolated)

• Input Signal: 4 to 20 mA DC

• Digital Communication: HART Protocol (Superimposed on analog signal)

• Interface Type: KS Cable Interface (via ATK4A-00 adapter)

• Data Update Period: 10 ms

• Accuracy: ±16 µA (Standard range)

• Input Resistance: 250 Ω (Typical)

• Operating Temperature: -10°C to +55°C

• Condition: 100% Brand New and Original

Engineering Advantages

The AAI141-H00/K4A00 resolves complex integration and maintenance challenges through its hybrid communication and interface design:

• Bidirectional Asset Management: Integrated HART support eliminates the need for external HART multiplexers. This allows the DCS to monitor instrument health, verify calibration, and adjust transmitter parameters remotely from the control room, significantly reducing field inspection hours.

• Optimized Wiring via KS Interface: The pre-installed ATK4A-00 adapter facilitates the use of standard Yokogawa KS cables. This system replaces hundreds of individual wire terminations with a single plug-and-play connection to the terminal board, minimizing wiring errors and accelerating cabinet assembly timelines.

• High-Density Signal Processing: Managing 16 points on a single module maximizes I/O nest utilization. This density allows for smaller cabinet footprints and reduces the overall hardware requirements for large-scale industrial projects.

• Enhanced Diagnostics: The module continuously monitors the 4-20 mA loop for out-of-range values or transmitter failures. Combined with HART data, it provides maintenance teams with clear, actionable insights into field-side anomalies before they result in process downtime.

FAQs

Does the AAI141-H00/K4A00 require a special terminal board?

Yes. The /K4A00 option utilizes the ATK4A-00 adapter, which specifically connects to Yokogawa AEA4D terminal boards or equivalent units using KS cables. Always verify the compatibility of your existing termination board before installation.

Can I use this module to replace an AAI141-S00 (Standard type)?

Physically, the modules are interchangeable within the same I/O nest. However, the AAI141-H00 adds HART communication. You must ensure your DCS software configuration supports the HART data path to utilize the digital diagnostic features.

What is the benefit of the non-isolated design in this model?

The non-isolated architecture of the AAI141-H00 offers a cost-effective solution for high-point-count monitoring where transmitters share a common electrical reference. For applications requiring channel-to-channel isolation, we recommend the AAI143 series.

How does the KS Cable Interface Adapter improve system maintenance?

The ATK4A-00 adapter allows for rapid module replacement. By disconnecting the KS cable rather than individual wires, maintenance technicians can swap modules in seconds, ensuring the fastest possible Mean Time to Repair (MTTR).
