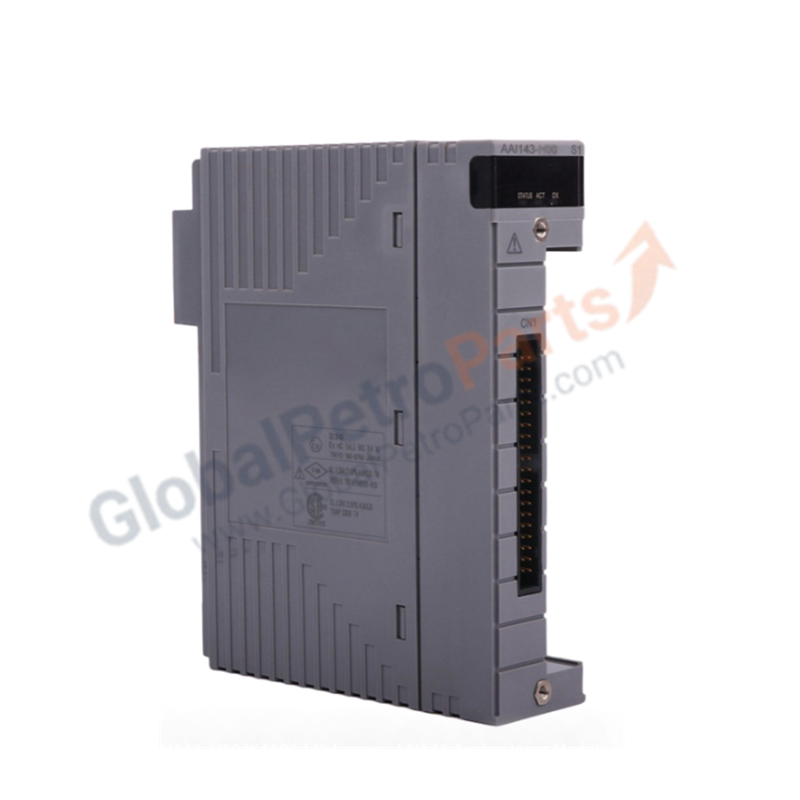

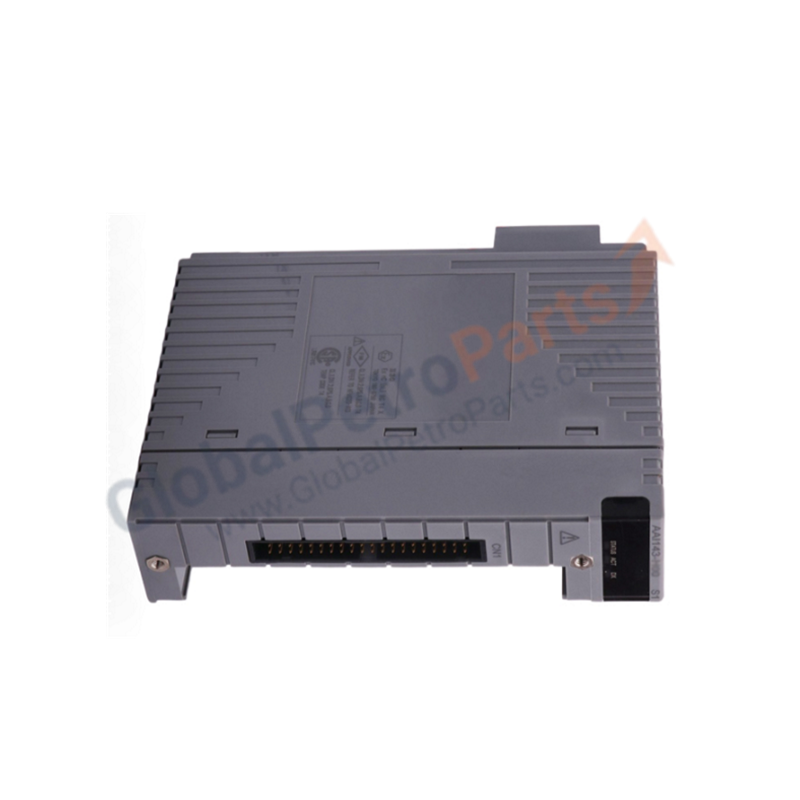

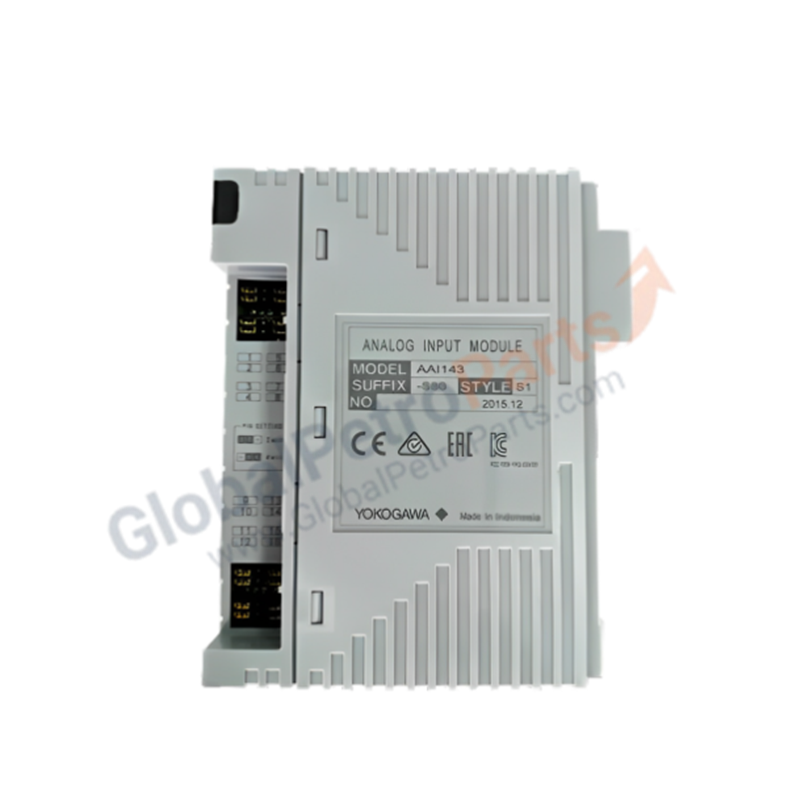

Yokogawa AAI143-H50 CENTUM VP Analog Input Module

Product Overview

The Yokogawa AAI143-H50 functions as a high-density interface for modern distributed control systems (DCS). This module accepts 16 channels of 4 to 20 mA signals, providing critical data acquisition from field transmitters to the controller. By utilizing full channel isolation, the AAI143-H50 eliminates ground loop interference and protects system integrity in dense electrical environments. We supply this unit as 100% Brand New in original factory packaging to guarantee immediate deployment readiness.

Part Number Breakdown

Technical Specifications

• Input Channels: 16 channels, isolated.

• Input Signal: 4 to 20 mA DC.

• Communication Protocol: HART (Digital communication superimposed on analog signal).

• Input Impedance: 250 Ω (during power-on).

• Withstanding Voltage: 1500 V AC between input and system.

• Update Cycle: 10 ms (Standard process control speed).

• Accuracy: ±0.1% of span.

• Power Consumption: Max 230 mA (5 V DC) / 450 mA (24 V DC).

Engineering Advantages

• Streamline Field Asset Management: The integrated HART protocol allows engineers to perform remote diagnostics and device configuration. This capability removes the need for technicians to physically access transmitters in difficult or hazardous locations, reducing maintenance man-hours.

• Superior Signal Isolation: Each of the 16 channels features robust galvanic isolation. This design prevents a failure in one field loop from propagating to other channels or damaging the expensive CPU rack, ensuring maximum system availability.

• High-Density Cabinet Optimization: The compact 16-channel footprint maximizes I/O density within the cabinet. This allows engineers to reduce the total number of racks required, directly lowering hardware costs and saving valuable floor space in control rooms.

• Simplified Integration: The AAI143-H50 interfaces seamlessly with standard Yokogawa terminal boards. Direct mounting and clear pin-out configurations accelerate the installation phase and minimize wiring errors during commissioning.

FAQs

• Does this module support both 2-wire and 4-wire transmitters?

  Yes, the AAI143-H50 accommodates both 2-wire and 4-wire configurations. Ensure you verify the external power supply requirements for 4-wire devices to maintain signal consistency.

• How does the "H" suffix affect my existing system?

  The "H" suffix enables HART pass-through. If your existing module lacked this feature, upgrading to the AAI143-H50 allows your DCS to read secondary variables (like temperature or device status) from HART-enabled field instruments without changing the analog wiring.

• What is the significance of the "50" suffix?

  The "5" indicates a non-explosion protected version, suitable for standard control rooms and non-hazardous areas. The "0" represents the basic hardware type. Always confirm your area classification before installation.

• Is this a refurbished or used unit?

  No. We strictly provide 100% Brand New Yokogawa inventory. Each module arrives with the original factory seal, ensuring the latest firmware revision and full manufacturer performance specifications.
