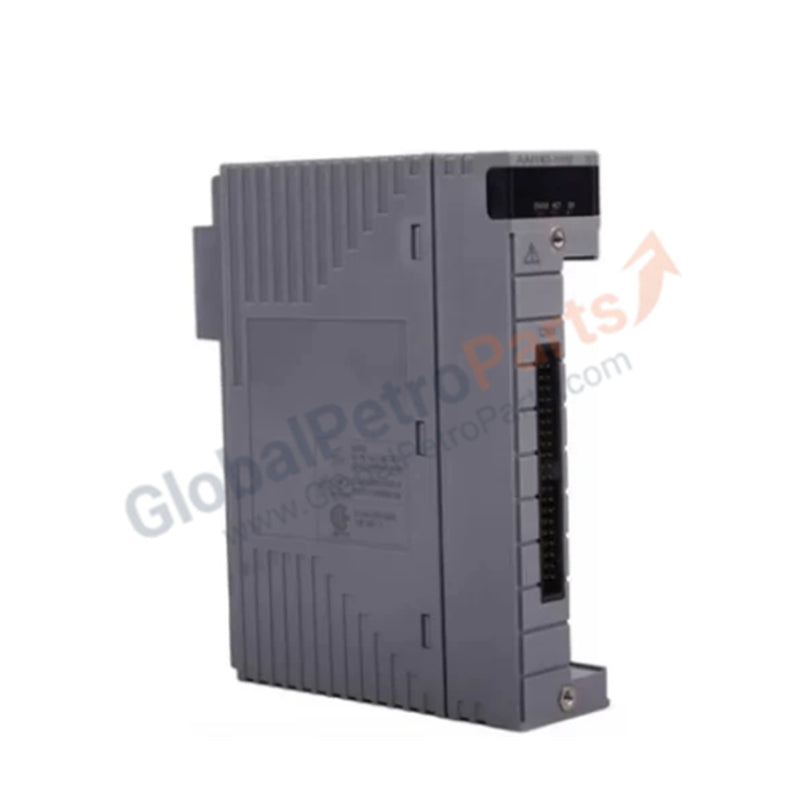

Yokogawa AAI143-S00/A4S00 CENTUM VP 16-Channel Isolated Analog Input Module

Product Overview

The Yokogawa AAI143-S00/A4S00 functions as a high-density, isolated analog input interface for the CENTUM VP Distributed Control System (DCS). This module captures 4 to 20 mA signals from 16 independent channels, providing the central controller with precise process telemetry. By utilizing full galvanic isolation between channels, it ensures signal integrity in complex industrial environments. This specific configuration includes the /A4S00 option, which provides a factory-integrated Pressure Clamp Terminal Block (Model ATA4S-00) for secure and efficient field wiring. We supply this unit as 100% Brand New and original to meet the rigorous demands of mission-critical automation loops.

Part Number Breakdown

The AAI143-S00/A4S00 utilizes a specific suffix and option structure to define its hardware tier and termination method:

Technical Specifications

The AAI143-S00/A4S00 delivers high-performance data acquisition with the following parameters:

• Number of Input Channels: 16, fully isolated

• Input Signal Range: 4 to 20 mA DC

• Termination Type: Pressure Clamp (Screwless) via ATA4S-00

• Withstanding Voltage: 1500 V AC between input and system for 1 minute

• Data Update Period: 10 ms

• Input Resistance: 250 $\Omega$ (Typical)

• Condition: 100% Brand New and Original

• System Compatibility: Yokogawa CENTUM VP / CS 3000

Engineering Advantages

The AAI143-S00/A4S00 resolves critical installation and signal interference challenges:

• Superior Galvanic Isolation: Full isolation between the 16 channels prevents ground loop currents from corrupting measurement data. This architecture ensures that a fault on one field transmitter does not propagate to other channels or damage the DCS backplane.

• Screwless Wiring Efficiency: The /A4S00 pressure clamp terminal block eliminates the need for manual screw tightening. Technicians simply insert the wire to establish a gas-tight, vibration-resistant connection. This reduces installation time by up to 50% and prevents intermittent signals caused by loose screws in high-vibration areas.

• High-Density Signal Processing: By packing 16 isolated channels into a single module slot, this unit maximizes I/O nest utilization. This density allows for smaller cabinet footprints, reducing the overall cost of control room infrastructure.

• Reliable Field Maintenance: The module supports hot-swapping within the CENTUM VP framework. Maintenance teams replace faulty units without interrupting the remaining system segments, maintaining continuous process availability and reducing Mean Time to Repair (MTTR).

FAQs

What is the benefit of the /A4S00 Pressure Clamp over standard terminals?

The /A4S00 terminal block (ATA4S-00) utilizes spring-tension technology. It maintains constant pressure on the wire, which prevents the "loosening" effect common in traditional screw terminals subjected to thermal cycling or mechanical vibration.

Does the AAI143-S00/A4S00 support 2-wire transmitters?

Yes. The module supports both 2-wire and 4-wire configurations. For 2-wire transmitters, the module or the associated terminal board provides the necessary loop power while the AAI143 captures the 4-20 mA current signal.

How does this module differ from the AAI141 series?

The AAI143 series provides full channel-to-channel isolation, whereas the AAI141 is a non-isolated version. Choose the AAI143-S00/A4S00 for environments where signal interference or differing ground potentials pose a risk to data accuracy.

What is the recommended cable gauge for the pressure clamp terminals?

The ATA4S-00 typically accepts solid or stranded wire ranging from 0.2 to 2.5 $mm^2$ (24 to 12 AWG). We recommend using ferruled wires for the most secure and professional cabinet finish.
