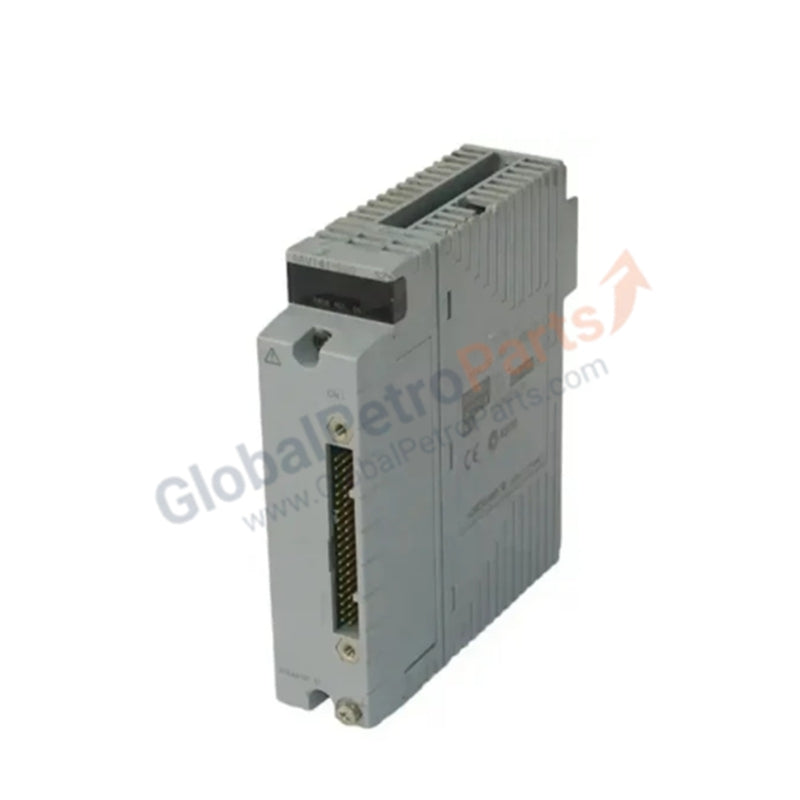

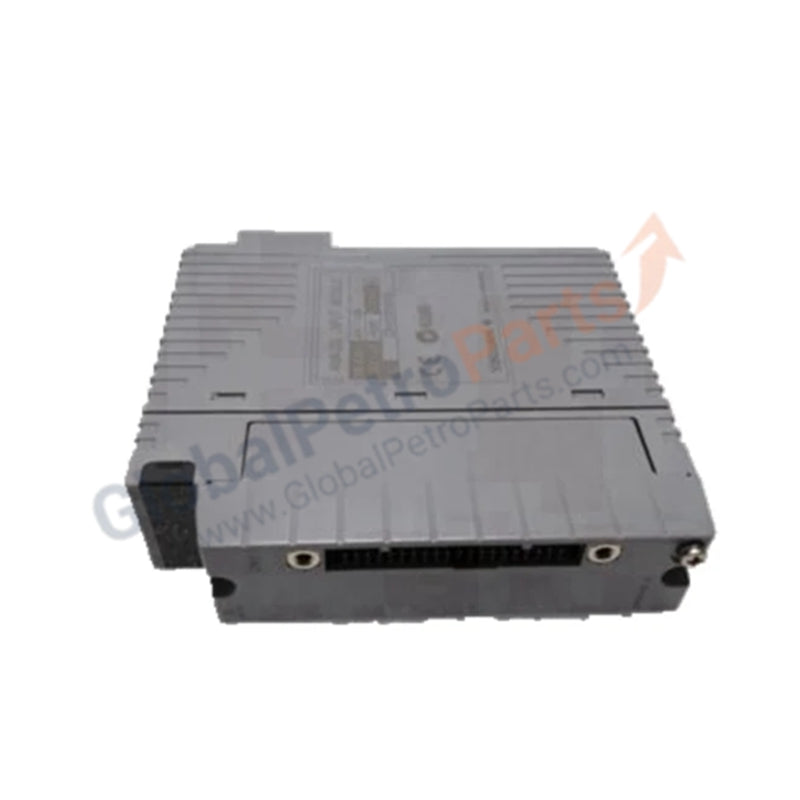

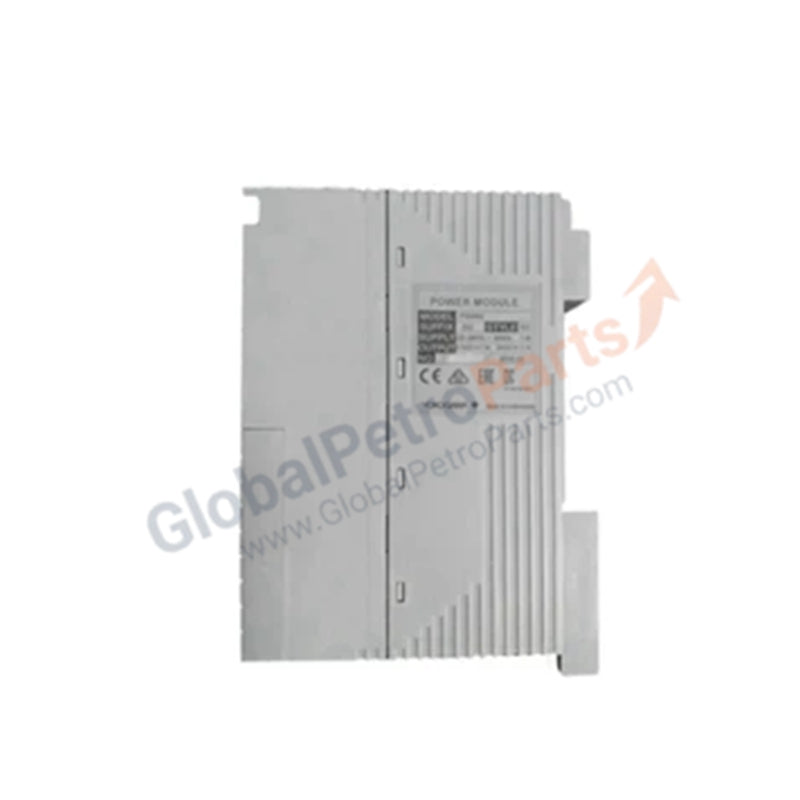

Yokogawa AAI143-S53 CENTUM VP 16-Channel Isolated Analog Input Module

Product Overview

The Yokogawa AAI143-S53 functions as a high-density, isolated analog input interface for the CENTUM VP Distributed Control System (DCS). This module captures 4 to 20 mA signals from 16 independent channels, providing the central controller with precise process telemetry. By utilizing full galvanic isolation between channels, it ensures signal integrity in complex electrical environments. The S53 configuration specifically incorporates ISA Standard G3 conformal coating, enabling the hardware to withstand corrosive atmospheres. We supply this unit as 100% Brand New and original, ensuring peak performance for mission-critical control loops.

Part Number Breakdown

The AAI143-S53 utilizes a specific suffix logic to define its environmental resilience and safety configuration:

Technical Specifications

The AAI143-S53 delivers high-performance data acquisition with the following technical parameters:

• Number of Input Channels: 16, fully isolated

• Input Signal: 4 to 20 mA DC

• Accuracy: ±16 $\mu$A

• Data Update Period: 10 ms

• Withstanding Voltage: 1500 V AC (Between input and system for 1 minute)

• Input Resistance (Power ON): 270 $\Omega$ at 20 mA; 350 $\Omega$ at 4 mA

• Input Resistance (Power OFF): $\ge$ 500 k$\Omega$

• Transmitter Power Supply: 19.0 V min (at 20 mA) to 25.5 V max

• Current Limit: 25 mA

• Environmental Protection: ISA Standard G3 compliant

• Condition: 100% Brand New and Original

Engineering Advantages

The AAI143-S53 addresses critical integration and environmental challenges in harsh process industries:

• High-Integrity Signal Isolation: 1500 V AC galvanic isolation separates field-side inputs from the system backplane. This barrier prevents ground loop currents and high-voltage surges from damaging the central DCS processors, maintaining system uptime during field-side electrical faults.

• Corrosive Atmosphere Resilience: The ISA Standard G3 conformal coating protects internal circuitry from "creeping corrosion" caused by Hydrogen Sulfide ($H_{2}S$), Chlorine ($Cl_{2}$), and high humidity. This makes the module essential for refineries, chemical plants, and wastewater treatment facilities where standard electronics fail prematurely.

• Rapid Control Response: A 10 ms data update period ensures the DCS receives real-time telemetry. This high-speed processing supports fast-acting control loops, such as turbine speed or pressure regulation, where millisecond delays could compromise process stability.

• Robust Transmitter Support: The integrated power supply provides a minimum of 19.0 V at full loop current. This ensures sufficient voltage for 2-wire transmitters even across long cable runs with significant impedance, eliminating the need for external loop power boosters.

FAQs

How does the AAI143-S53 handle a failure in the field wiring?

The module includes a current limit of 25 mA and features a high-impedance state ($\ge$ 500 k$\Omega$) when powered off. This protects the internal circuitry from overcurrent and ensures that a fault on one channel does not propagate to the other 15 isolated channels.

Can I replace a standard AAI143-S00 with this S53 version?

Yes. The AAI143-S53 acts as a "drop-in" high-specification replacement for the S00 variant. It offers identical electrical input characteristics while adding superior environmental protection (G3 coating). Simply verify that your specific system configuration does not require explosion protection (Suffix 5 indicates no explosion protection).

What is the benefit of the isolated architecture in this module?

Channel-to-system isolation ensures that noise or electrical interference on the field side cannot enter the internal DCS logic. It also allows field sensors to reside at different ground potentials without causing the circulating currents that frequently corrupt data in non-isolated modules.

Is any special software configuration required for the 10 ms update period?

No. The AAI143-S53 hardware natively supports the 10 ms update period within the CENTUM VP environment. You simply configure the scan rate within the System View software to match your control requirements.
