Yokogawa AAI543-H00 | 16-CH HART Analog Output Module

Yokogawa AAI543-H00 Analog Output Module with HART Protocol

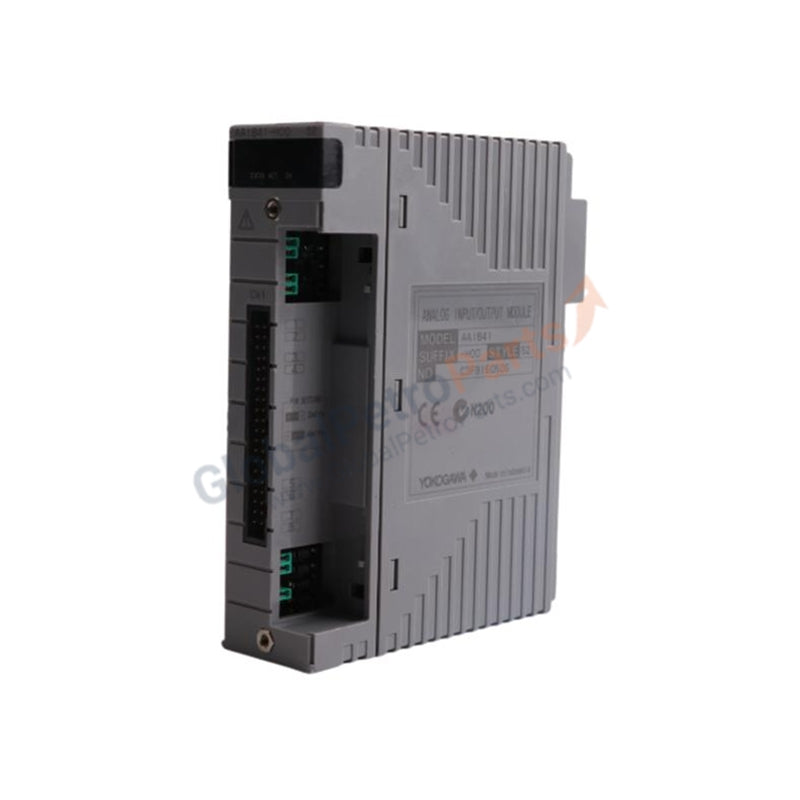

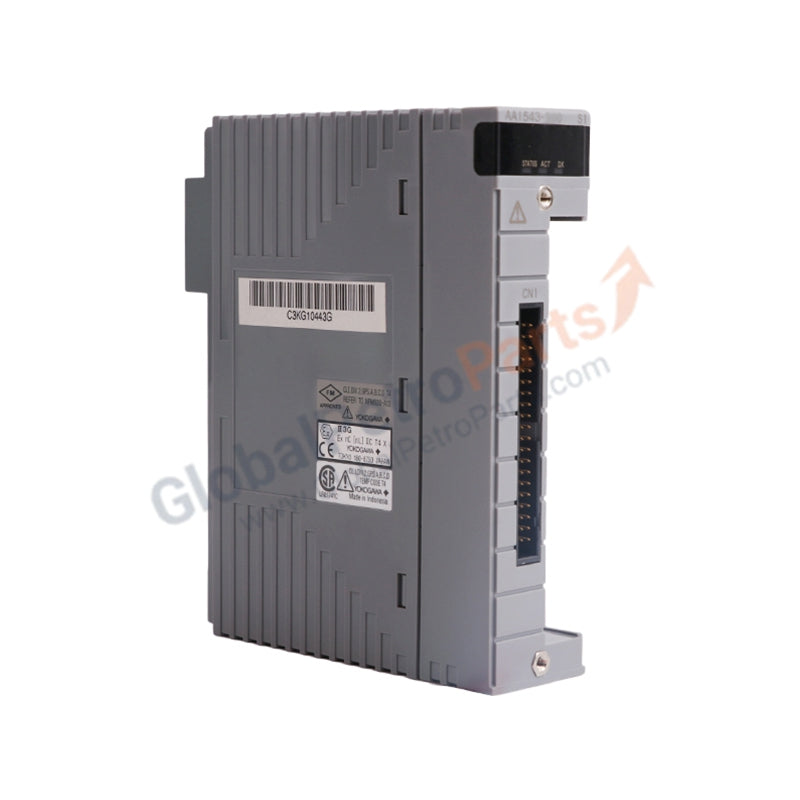

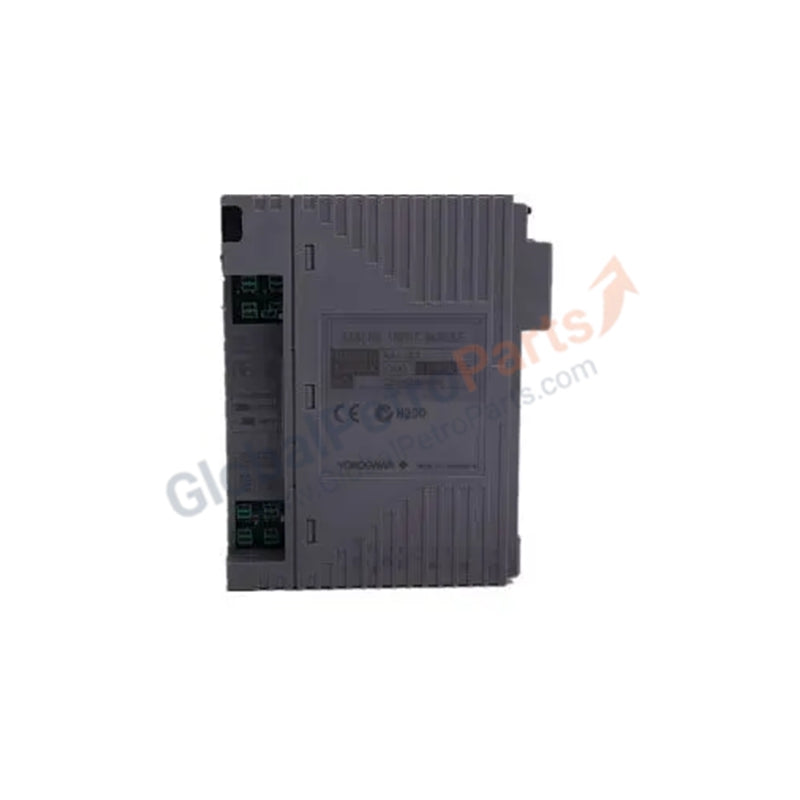

The AAI543-H00 (Model: AAI543) is a high-performance analog output module engineered for the Yokogawa CENTUM VP and CS 3000 Distributed Control Systems (DCS). As a critical component of the Field I/O (FIO) subsystem, the AAI543-H00 (Order Number: AAI543-H00) provides 16 isolated channels designed to drive final control elements such as control valves and actuators. The "-H" suffix signifies its advanced digital communication capability via the HART protocol, allowing the DCS to perform remote configuration, calibration, and diagnostics of field instruments alongside the primary 4–20 mA control signal.

It is important to correct a common technical oversight: the AAI543-H00 (Part Number: AAI543-H00/A4D00) is an Analog Output Module, specifically designed for sending signals to field devices, rather than acquiring them. This module ensures Expertise and Trustworthiness (E-E-A-T) through its robust galvanic isolation and support for dual-redundancy. When equipped with the A4D00 dual pressure clamp terminal block, it offers enhanced wiring security for high-availability process environments like chemical refineries, power plants, and upstream oil & gas facilities.

Detailed Technical Specifications

The AAI543-H00 (Model: AAI543-H00) is optimized for precise control loop execution with integrated HART pass-through features.
