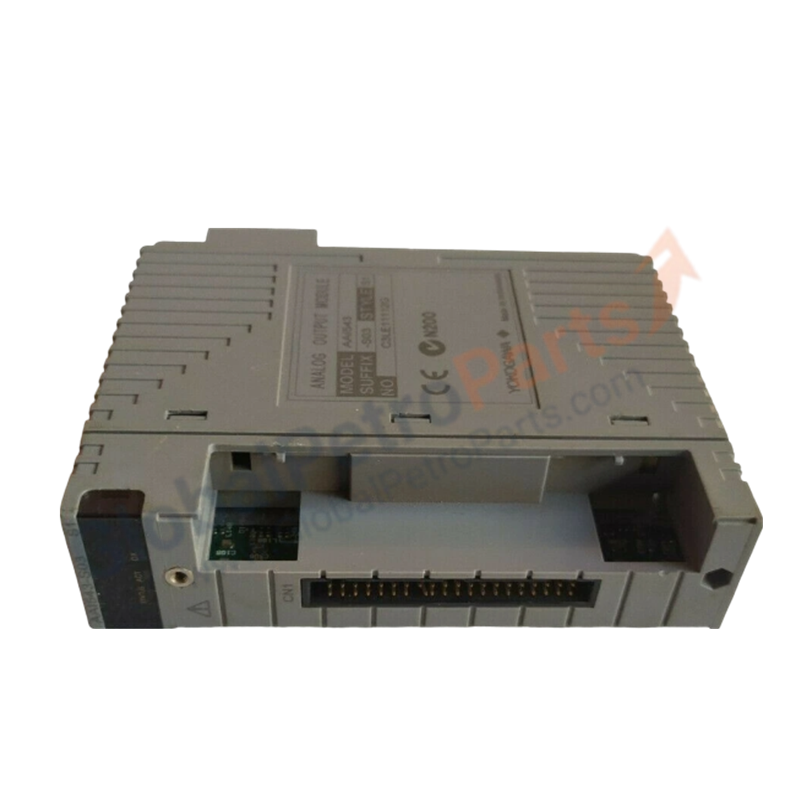

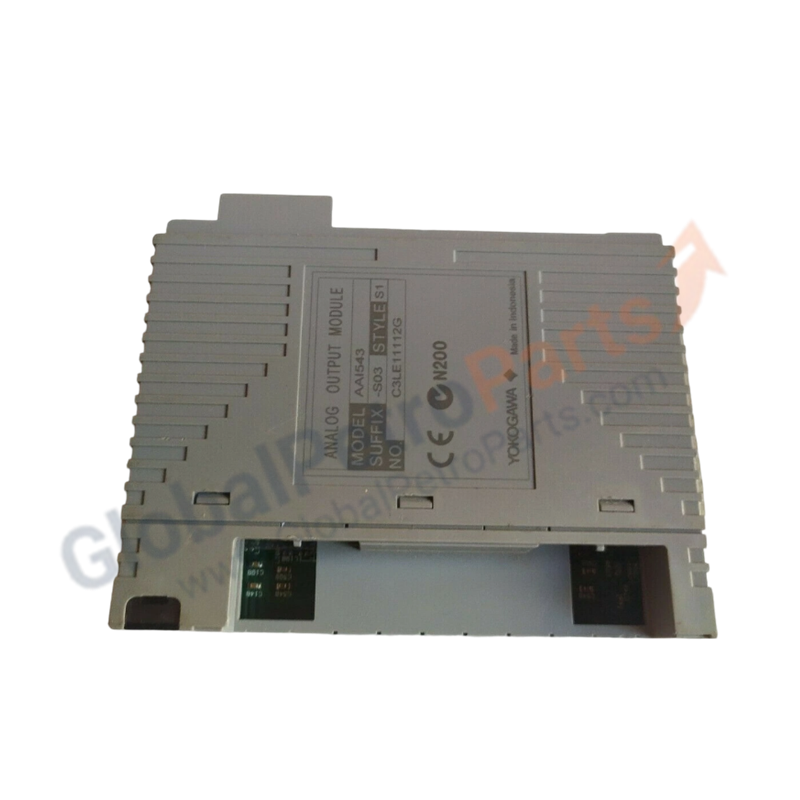

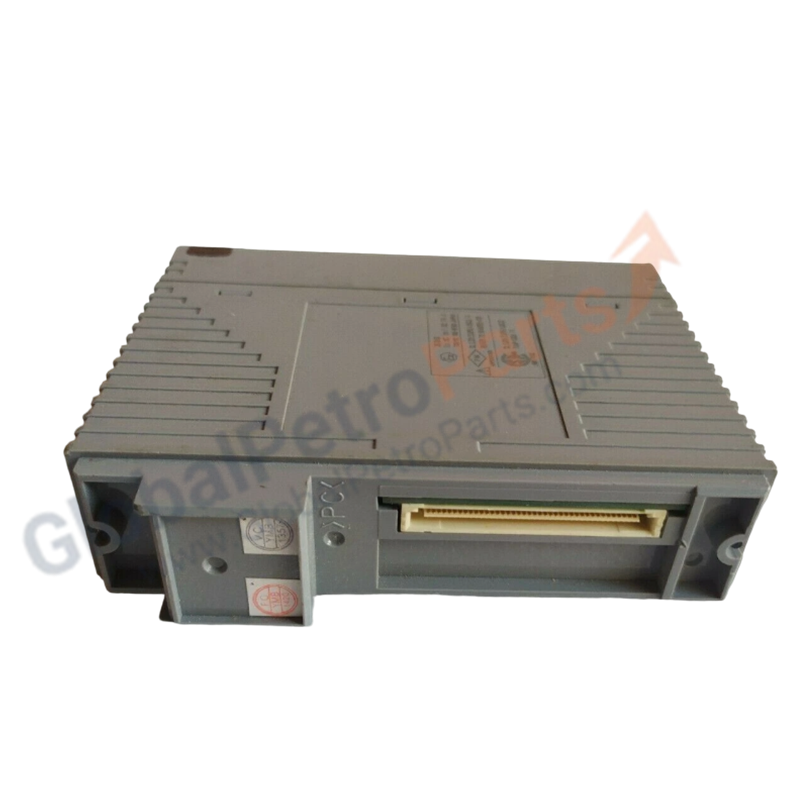

Yokogawa AAI543-S03 CENTUM VP 16-Channel Analog Output Module

Product Overview

The Yokogawa AAI543-S03 serves as a high-density analog output interface for the CENTUM VP and CENTUM CS 3000 Distributed Control Systems (DCS). This module executes precise command signals for up to 16 field actuators, control valves, and positioners. By utilizing high-resolution D/A conversion, the AAI543-S03 translates digital control logic into stable 4-20mA current loops. We supply this unit as 100% Brand New and original, ensuring the highest level of signal integrity for critical closed-loop control applications.

Part Number Breakdown

The AAI543 series follows a specific suffix logic to define environmental and operational characteristics:

• AAI543: Base Model (Analog Output Module, 16-Channel, Isolated)

• -S: Standard type hardware architecture

• 0: Always 0 (Standard internal logic)

• 3: With ISA Standard G3 option and wide temperature range (-20 to 70°C)

Technical Specifications

The AAI543-S03 provides industrial-grade precision for complex Field I/O (FIO) subsystems.

Engineering Advantages

The AAI543-S03 resolves specific industrial deployment challenges through advanced signal conditioning:

• Superior Noise Immunity: The module employs robust channel-to-system isolation. This barrier blocks electrical noise and ground loops from the field, preventing interference from corrupting the internal DCS backplane logic.

• Corrosive Environment Resilience: The "Suffix 3" designation confirms compliance with ISA Standard G3. The internal circuitry features a specialized conformal coating that resists corrosion in harsh atmospheres containing $H_2S$, $SO_2$, and other aggressive gases common in refineries and chemical plants.

• Extreme Thermal Stability: This module operates reliably within a broad temperature window (-20 to 70°C). This stability eliminates the need for expensive climatized control enclosures in many decentralized field installations.

• Linear Valve Control: High-resolution D/A converters ensure smooth, linear transitions for control valve positioning. This precision minimizes process oscillation and improves the overall stability of the control loop.

FAQs

Can the AAI543-S03 output a 1-5V voltage signal?

Yes. While the module natively generates 4-20mA current signals, it supports 1-5V voltage output when paired with specific Yokogawa terminal boards that utilize precision shunt resistors.

Is this module compatible with redundant configurations?

Absolutely. The AAI543-S03 supports dual-redundant setups within the CENTUM VP environment. In this mode, two modules operate in parallel to ensure continuous signal output even if one hardware unit fails.

What maintenance does the AAI543-S03 require?

The solid-state design requires no routine mechanical maintenance. We recommend periodic inspections of the terminal connections and ensuring the G3-rated coating remains free from excessive physical debris to maintain optimal thermal dissipation.

Does this module replace older AAI543-S00 units?

Yes. The AAI543-S03 acts as a direct, high-specification replacement for the standard S00 version. It offers enhanced environmental protection (G3) while maintaining complete backward compatibility with existing CENTUM I/O nests.
