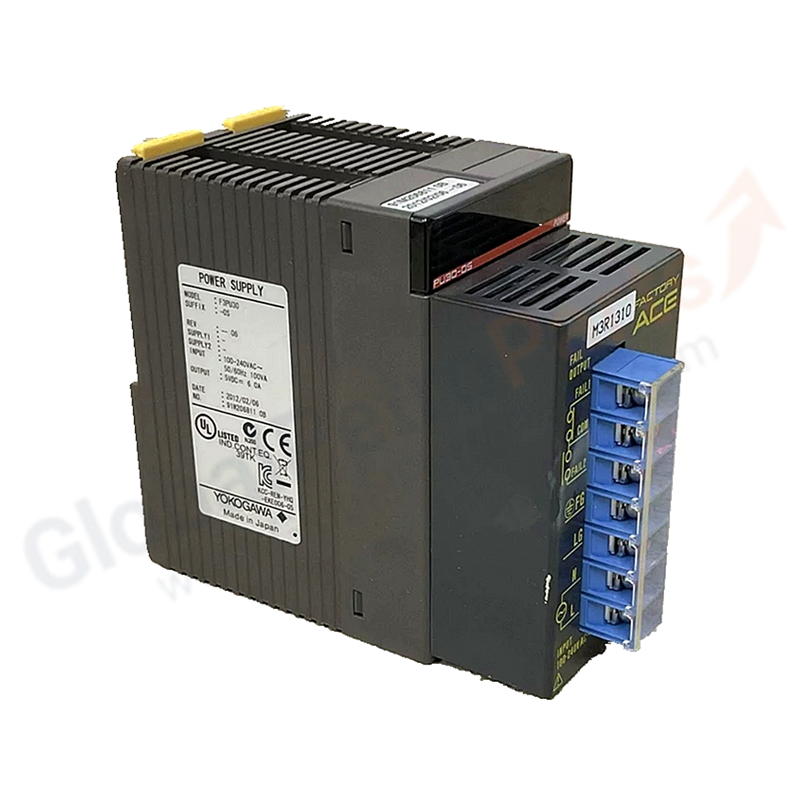

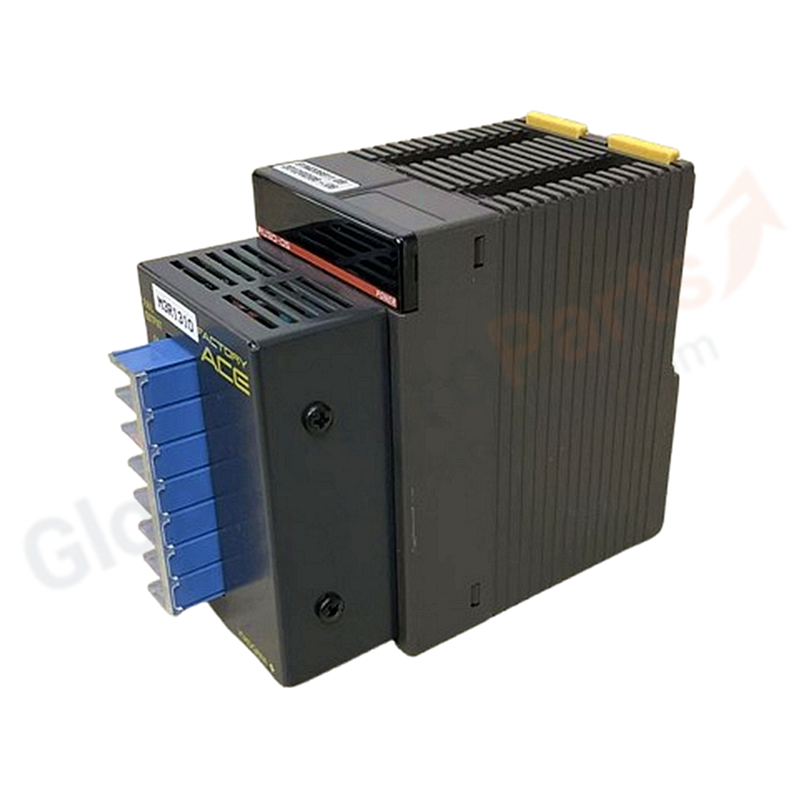

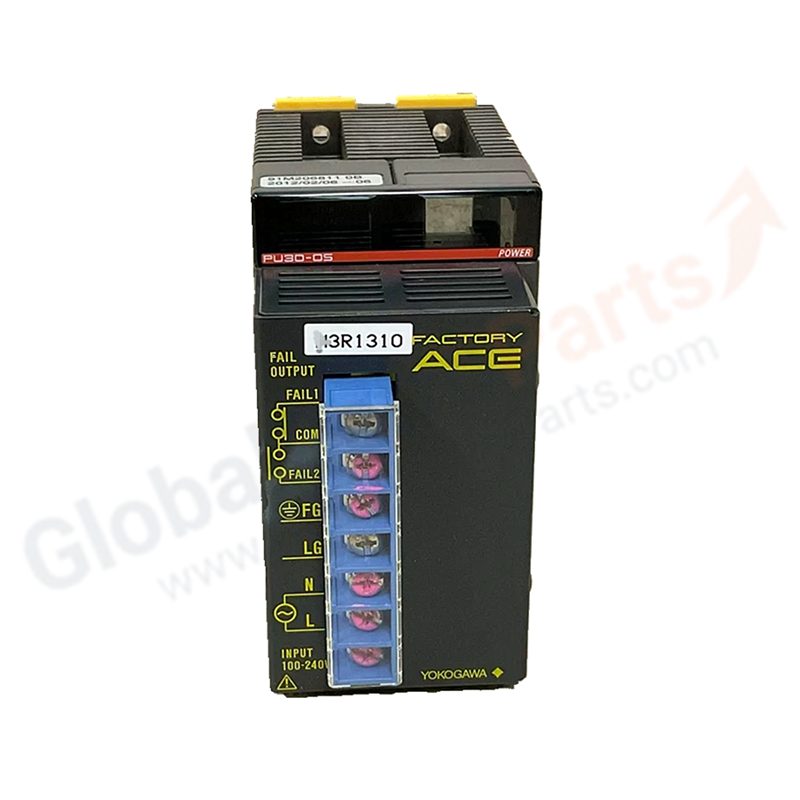

Yokogawa F3PU30-0S AC Power Supply Module

Product Overview

The Yokogawa F3PU30-0S is an AC power supply module for the FA-M3 series, providing reliable 5V DC power to all modules installed on the base unit. With a 100-240V AC universal input and 5V DC / 4.3A rated output, it supports base modules with 5, 9, 13, and 16 slots. The module features overcurrent protection and status indication for dependable continuous operation in industrial environments.

Key Specifications

• Input Voltage: 100-240V AC, single phase
• Output Voltage: 5V DC
• Rated Output Current: 4.3A at 5V DC
• Supported Base Modules: F3BU05/09/13/16 (M4 screw mounting)
• Installation: Dedicated power supply slot on base module
• Protection: Overcurrent protection
• Status Indication: Power OK LED
• Operating Temperature: 0 to 55°C
• Storage Temperature: -20 to 75°C
• Humidity: 10-90% RH (non-condensing)

Compatibility & Applications

Designed for FA-M3 base modules F3BU05-0D, F3BU09-0N, F3BU13-0N, and F3BU16-0N. Suitable for factory automation, process control, assembly systems, and material handling requiring reliable AC-to-DC power conversion for medium-to-large I/O configurations.

FAQ

• Q: How many modules can F3PU30-0S support? A: With 4.3A at 5V DC output, it can typically support 10-13 modules depending on individual current consumption. Always calculate total system draw.
• Q: Can I use F3PU30-0S with F3BU04-0N? A: F3PU30-0S is optimized for 5, 9, 13, and 16-slot bases. For 4-slot bases, F3PU10-0S or F3PU16-0S is recommended.
• Q: Is the input voltage auto-ranging? A: Yes, 100-240V AC auto-ranging input eliminates the need for voltage selection switches.
• Q: What happens during an overload? A: The module features overcurrent protection to safeguard connected modules and itself.

Installation Guide

1. Verify input voltage matches your facility supply (100-240V AC).
2. Install F3PU30-0S in the dedicated power supply slot (leftmost position).
3. Connect AC input to the terminal block with proper wire gauge.
4. Ensure earth ground is properly connected.
5. Verify total 5V DC current consumption of all modules is ≤ 4.3A.
6. Power on and confirm green Power OK LED is illuminated.

Selection Tips

• Select F3PU30-0S for medium-to-large FA-M3 systems (9-13 slots) with moderate current requirements.
• For larger systems (16 slots) with high module count, verify total current or consider F3PU36-0N.
• For smaller systems (4-6 slots), F3PU10-0S or F3PU16-0S offers a more economical choice.
• Always include a 20-30% current margin when calculating power supply requirements.
