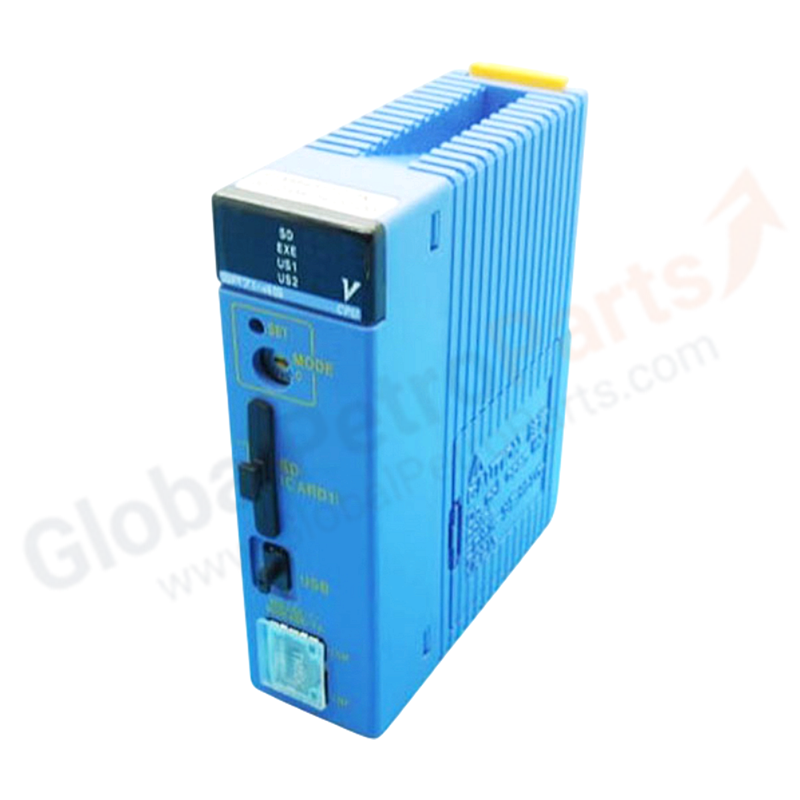

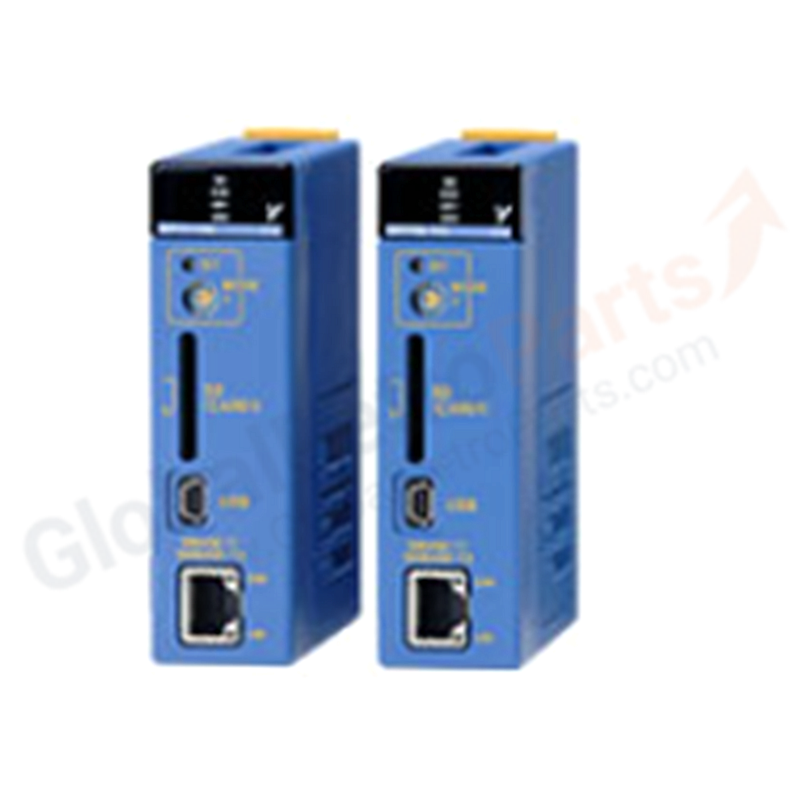

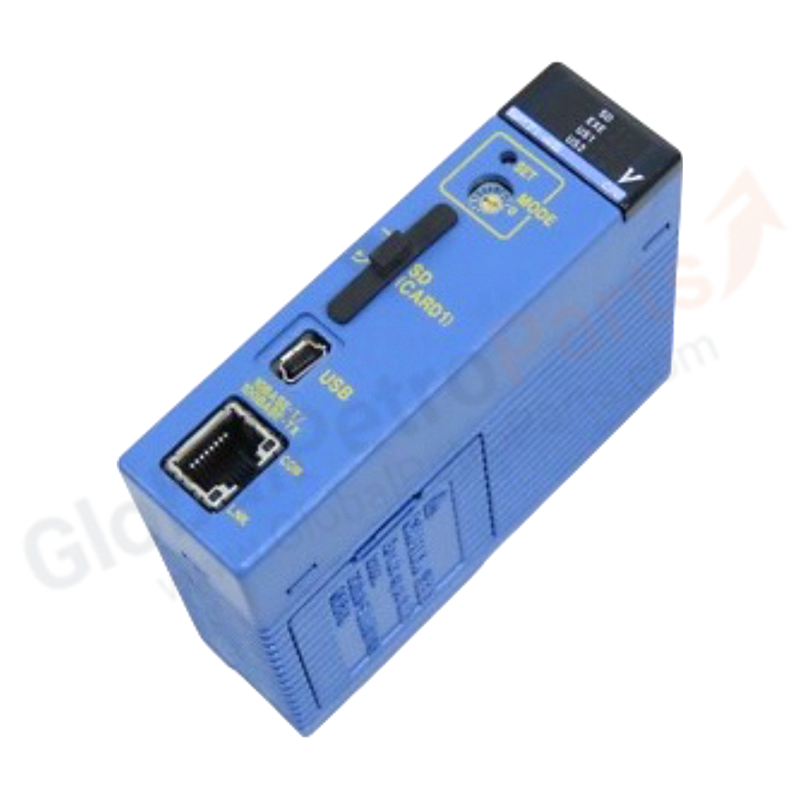

Yokogawa FA-M3 F3SP71-4S Sequence CPU Module

Product Overview

The Yokogawa F3SP71-4S is a high-performance Sequence CPU Module for the FA-M3 Range-free Multi-controller series. It serves as the computational core for large-scale industrial automation, executing complex logic at ultra-high speeds with a stored-program, repetitive operation mode. Equipped with USB 2.0 (12 Mbps) and an Ethernet port, plus an SDHC-compatible SD card slot, this CPU integrates communication, data logging, and high-speed control in a single slot.

Key Specifications

• Control Mode: Stored program, repetitive operation
• I/O Control Mode: Refreshing method / Direct I/O instructions
• Programming Language: Object ladder language
• Instruction Set: 40 Basic / 445 Application instructions
• Processing Speed: Basic instruction 0.00375 μs
• Program Capacity: Up to 60K steps
• Communication: USB 2.0 (12 Mbps) & Ethernet port
• Memory Expansion: SD memory card slot (SDHC compatible)
• Self-Diagnostics: Memory, CPU, I/O, and syntax checking
• Network Function: Modbus/TCP slave support
• Weight: Approx. 850 g

Compatibility & Applications

Compatible with all FA-M3 base modules (F3BU04~F3BU16) and power supplies (F3PU10/16/20/26/30/36 series). Ideal for robotics, packaging systems, chemical processing, oil & gas, and pharmaceutical manufacturing where high-speed sequence control and integrated Ethernet connectivity are required.

FAQ

• Q: What programming software is required? A: Yokogawa WideField3 programming software is used for development, debugging, and ladder logic download.
• Q: Does it support high-capacity SD cards? A: Yes, the SD slot is SDHC compatible for large-scale data logging and project backup.
• Q: Can direct I/O control be performed? A: Yes, besides the standard refreshing method, direct I/O instructions allow immediate action for time-critical signals.
• Q: Is this a refurbished unit? A: No, this is a 100% brand new original Yokogawa module with factory-certified hardware integrity.

Installation Guide

1. Power off the FA-M3 system completely before installation.
2. Insert the F3SP71-4S into the designated CPU slot on the base module.
3. Ensure the module is firmly seated and the locking mechanism is engaged.
4. Connect Ethernet and/or USB cables as required for your application.
5. Restore power and verify CPU status LEDs indicate normal operation.
6. Download and verify the sequence control program via WideField3.

Selection Tips

• Choose F3SP71-4S for large-scale applications requiring 60K-step program capacity and built-in Ethernet.
• For smaller systems, consider F3SP28-3S (8 MB memory, 4096 I/O points).
• Verify total 5V DC current consumption of all modules does not exceed the power supply rating.
• Use the SD card slot for data logging in SCADA-integrated applications.
