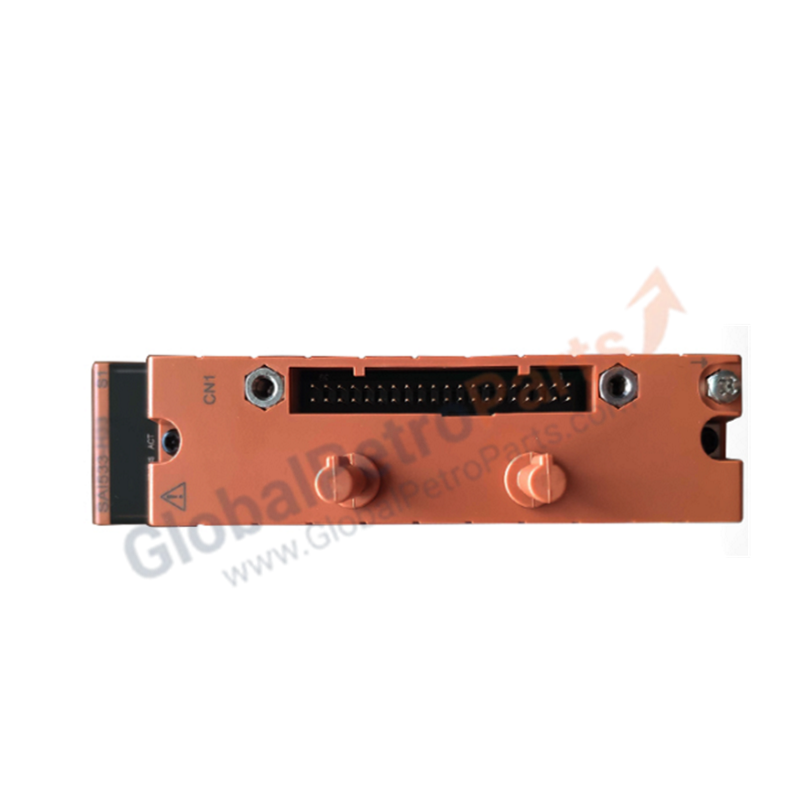

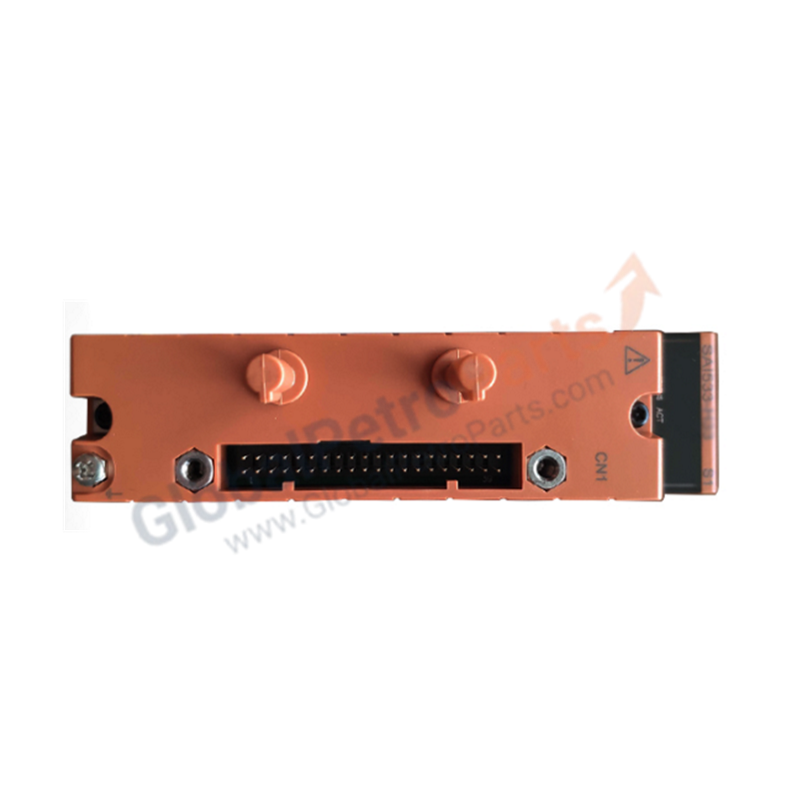

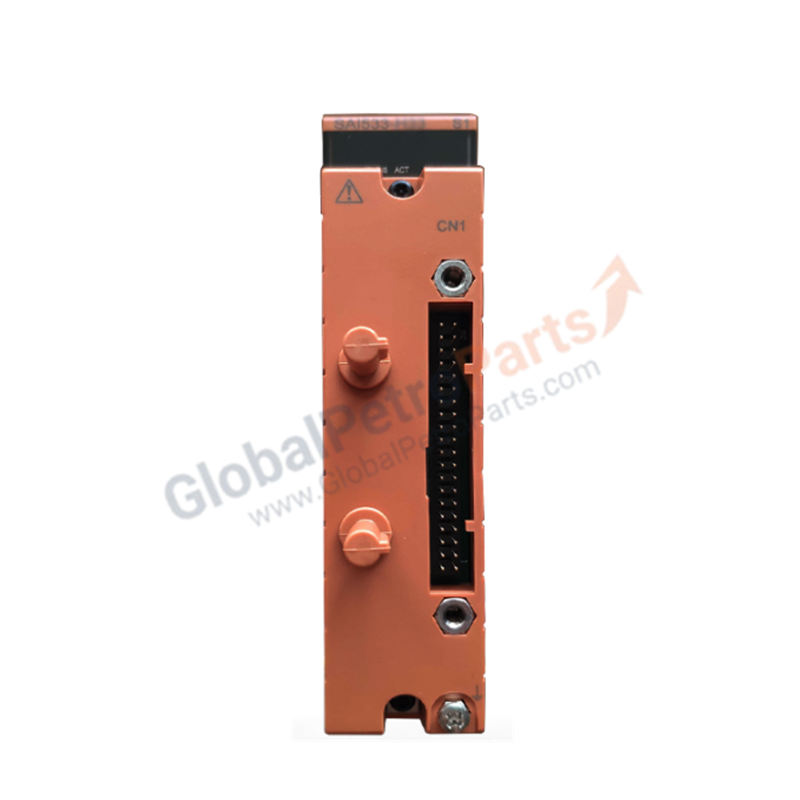

Yokogawa SAI533-H33/PRP ProSafe-RS Analog Output Module

Product Overview

The Yokogawa SAI533-H33/PRP serves as a high-integrity analog output interface within the ProSafe-RS Safety Instrumented System (SIS). This module drives final control elements—such as emergency shutdown valves (ESV) and variable speed drives—using 8 isolated 4 to 20 mA channels. Engineered for functional safety applications, it integrates bidirectional HART communication to facilitate remote device diagnostics without compromising loop integrity. We supply this unit in 100% Brand New and Original condition to ensure your safety loops meet the most stringent SIL3 requirements.

Part Number Breakdown

Technical Specifications

• Output Channels: 8 channels, module isolation.

• Output Signal: 4 to 20 mA DC.

• Communication: HART protocol superimposed on analog signal.

• Safety Level: Suitable for SIL3 safety instrumented functions.

• Operating Temperature: -20 to 70 ºC (-4 to 158 ºF).

• Environment: ISA Standard G3 compliant for corrosive gas resistance.

• Mechanical Protection: Integrated prevention pins for correct slot alignment.

• Power Consumption: Max 370 mA (24 V DC).

Engineering Advantages

• Eliminate Installation Errors: The /PRP option incorporates mechanical prevention pins. These pins physically block the module from entering the wrong slot in the I/O nest. This feature prevents accidental hardware damage and ensures that safety-critical loops remain correctly mapped during rapid maintenance or system expansion.

• Survive Corrosive Environments: The ISA Standard G3 conformal coating protects internal circuitry from aggressive pollutants like $H_2S$ and $SO_2$. This specialized barrier solves the problem of "silver corrosion" on the PCB, extending hardware life in non-climate-controlled marshaling cabinets or facilities near chemical processing zones.

• Streamline Valve Diagnostics: Integrated HART support allows the ProSafe-RS system to monitor valve positioner health and execute partial stroke tests (PST) remotely. Engineers access critical asset data through the safety rack, reducing the need for manual inspections in hazardous field areas.

• Handle Thermal Extremes: The robust hardware design maintains 0.1% accuracy across an extended temperature window of -20 to 70 ºC. This resilience ensures stable output to final control elements even when environmental conditions fluctuate in remote field enclosures.

FAQs

• How does the /PRP option assist in safety compliance?

  The prevention pin ensures that maintenance personnel cannot accidentally insert an analog output module into a slot intended for a different signal type. This mechanical safeguard minimizes human error, a critical factor in maintaining the Functional Safety Management (FSM) integrity of the plant.

• Is this module compatible with standard 4-wire positioners?

  Yes. The SAI533-H33/PRP drives both 2-wire and 4-wire (self-powered) devices. Ensure you configure the field wiring and I/O nest settings to match the specific impedance requirements of your positioner.

• Can I use the SAI533 in a non-safety DCS application?

  While physically similar to some CENTUM VP modules, the SAI533 is specifically certified for ProSafe-RS safety nests. It utilizes safety-certified diagnostics that standard DCS controllers do not support.

• What is the guarantee of originality?

  We supply the SAI533-H33/PRP in 100% Brand New factory packaging. Each unit includes the original Yokogawa serial number and factory seal, ensuring the module has never been previously installed or refurbished.
