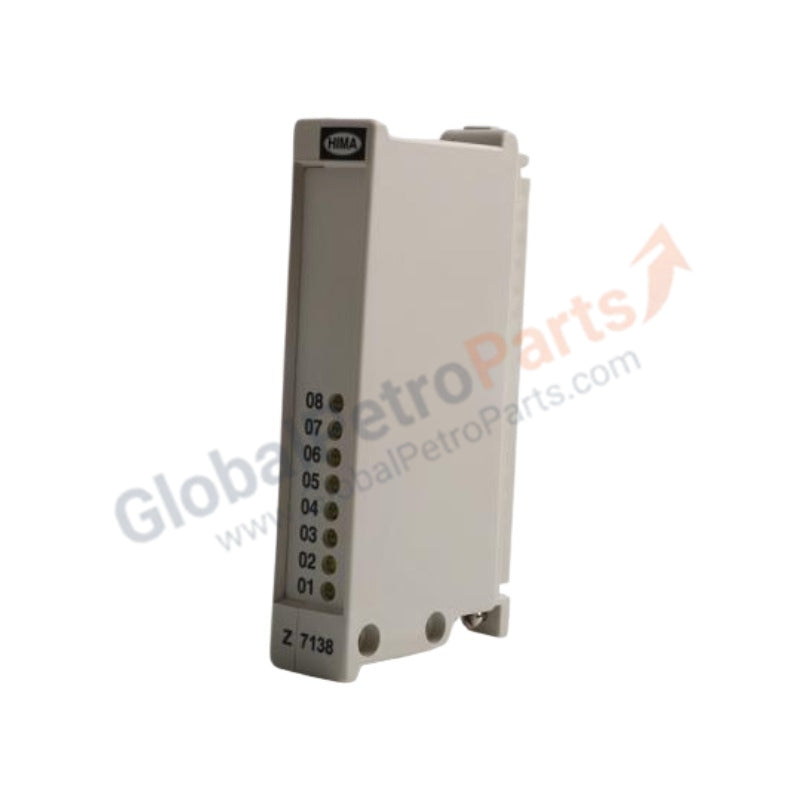

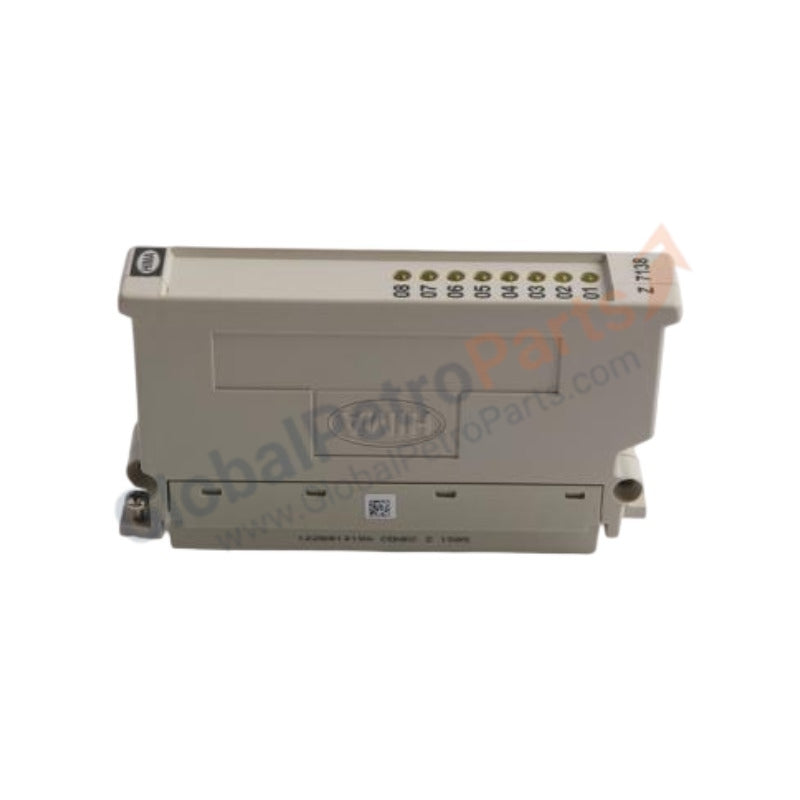

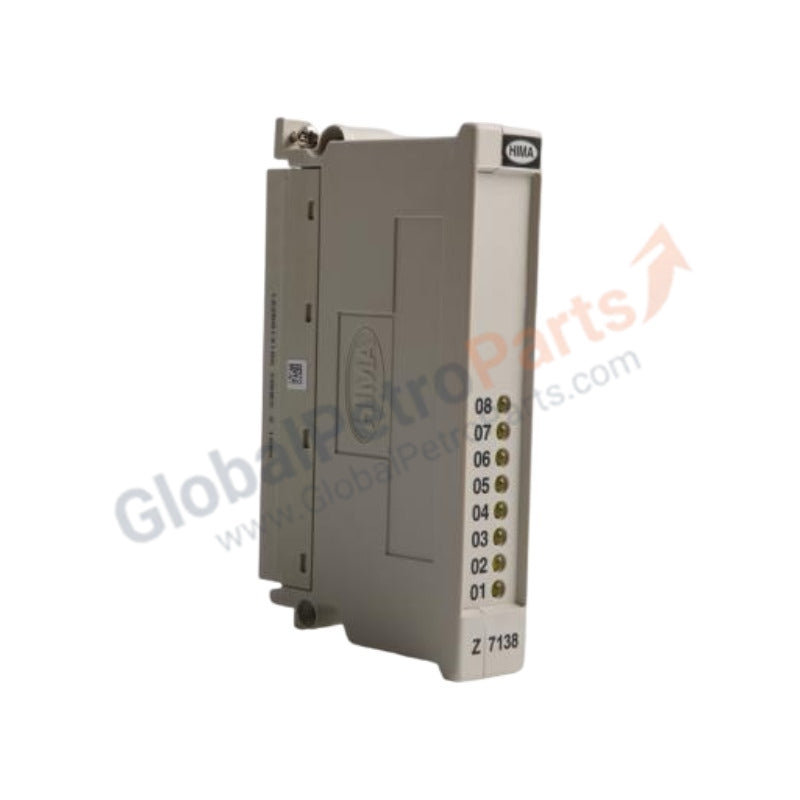

Z 7138 HIMA Safety System Output Module

Product Overview

The HIMA Z 7138 (Z7138) serves as a specialized output interface within the HIMA Planar4 safety system. This module provides the critical link between the safety logic and field-side actuators, such as solenoids, valves, and motor starters. Engineered for high-integrity environments, the Z 7138 operates within hard-wired safety architectures where software-free logic ensures maximum immunity to cyber threats and complex coding errors. This 100% Brand New original unit maintains the deterministic safety loops required for Emergency Shutdown (ESD), Fire and Gas (F&G), and Burner Management Systems (BMS) in oil refineries and chemical plants.

Technical Specifications

The Z 7138 module adheres to rigorous functional safety standards, featuring hardware-based diagnostics and robust electrical separation:

• Model: Z 7138 (Z7138)

• Brand: HIMA

• Series: Planar4

• Condition: 100% Brand New Original

• Module Type: Output Module / Output Amplifier

• Safety Rating: Suitable for SIL 3 / AK 6 applications

• Operating Voltage: 24 VDC (Nominal)

• Power Consumption: 1.5 W (Typical, internal)

• Diagnostic Features: Short-circuit monitoring and open-loop detection

• Construction: High-grade industrial PCB with corrosion-resistant coating

• Operating Temperature: 0 to 60 deg C

• Mounting: Standard HIMA 19-inch subrack / Sub-plate integration

Engineering Advantages

The HIMA Z 7138 provides technical solutions for high-risk industrial safety loops:

• Hardware-Based Reliability: Unlike microprocessor-driven cards, the Z 7138 utilizes discrete electronic components. This eliminates the risk of software hangs or firmware bugs, providing a direct, high-speed path for safety-critical trip signals.

• Integrated Line Monitoring: The module continuously scans for field wiring faults. It detects short circuits or broken wires immediately, preventing dangerous "fail-to-function" scenarios and allowing maintenance teams to address wiring issues before a trip occurs.

• Galvanic Isolation: Robust isolation barriers protect the central safety logic from field-induced surges or lightning strikes. This separation ensures that an electrical fault on a single valve solenoid does not compromise the entire safety rack.

• Extreme Longevity: HIMA designs the Planar4 series for 20-plus year lifecycles. This module uses high-MTBF (Mean Time Between Failures) components that resist thermal aging and vibration common in heavy industrial facilities.

FAQs

• Does the Z 7138 require programming or configuration?No. As part of the Planar4 hard-wired system, the Z 7138 functions based on its physical wiring and backplane connections. This "programming by wiring" approach eliminates the need for software maintenance and cybersecurity patching.

• Can this module be used in SIL 3 safety loops?Yes. The Z 7138 meets the requirements for SIL 3 according to IEC 61508. When integrated into a properly designed HIMA safety system, it supports the highest levels of risk reduction for industrial processes.

• How do I test the output functionality during commissioning?The module features front-panel test points or LED indicators (depending on the specific chassis version) that allow technicians to verify signal status without disconnecting field cables.

• Is this Z 7138 unit a refurbished or used spare?No. We supply only 100% Brand New original HIMA hardware. This ensures the module carries its full factory-rated lifespan and meets the original safety certifications required for compliance audits.
