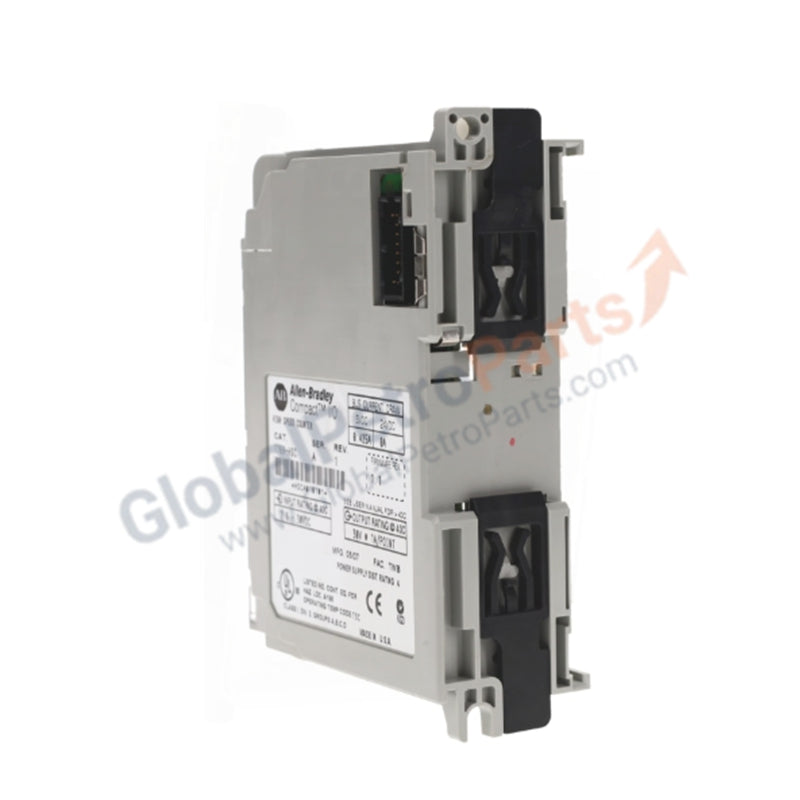

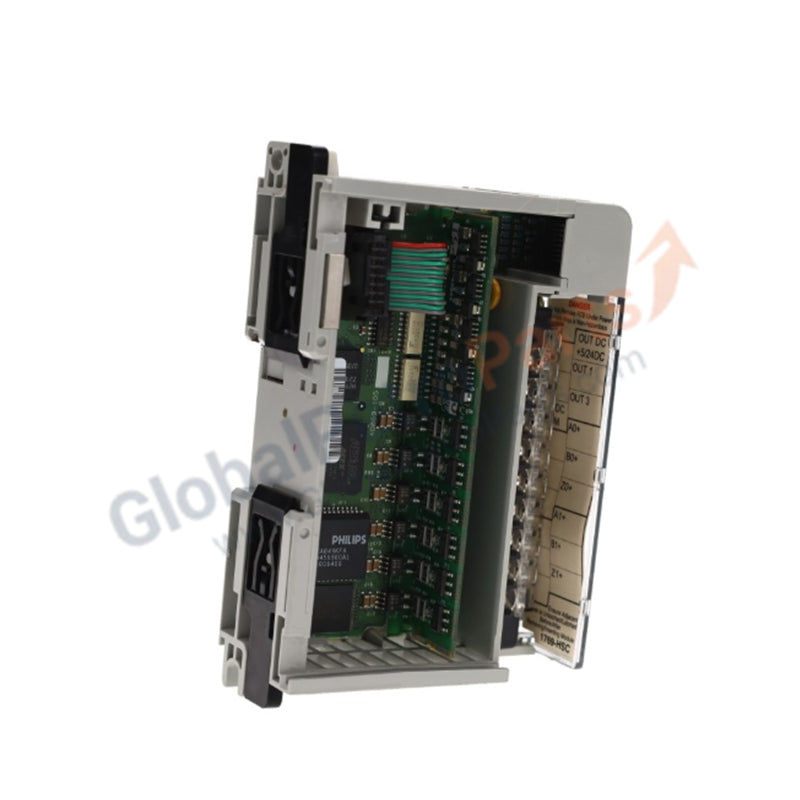

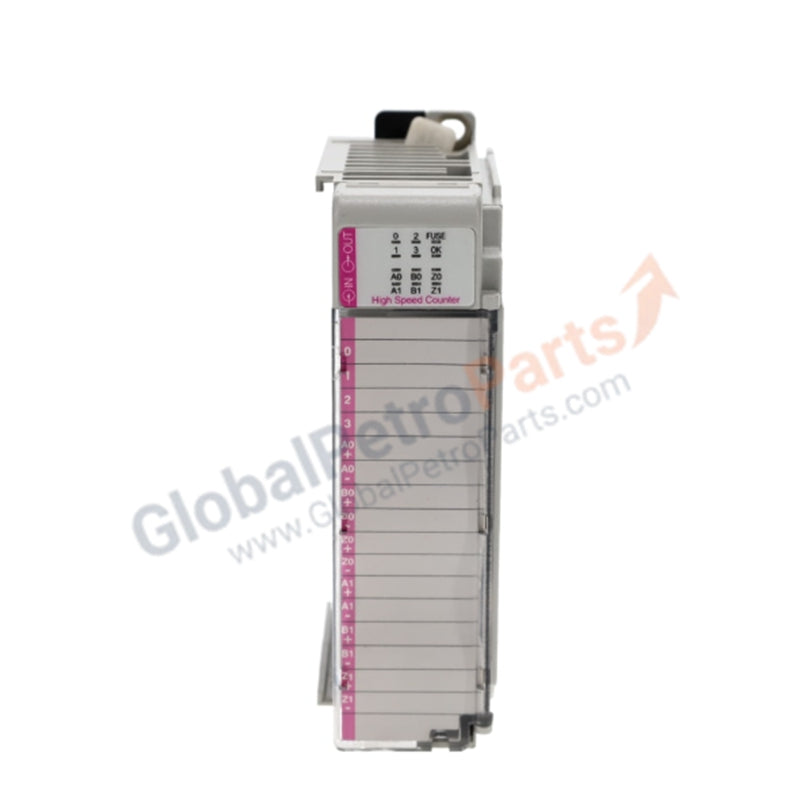

1769-HSC | Allen-Bradley | Compact I/O High-Speed Counter Module

Product Overview

The Allen-Bradley 1769-HSC functions as a high-performance, two-channel pulse counter for the CompactLogix and MicroLogix 1500 platforms. This module captures high-frequency signals from encoders and high-speed sensors that standard digital input modules cannot process. We supply this unit as 100% Brand New and Original, ensuring high-speed signal integrity for critical positioning, rate measurement, and batching applications.

Technical Specifications

Engineering Advantages

• High-Speed Signal Acquisition: The 1769-HSC processes rapid pulse trains from quadrature encoders. By handling high-frequency counts locally, the module reduces the processing load on the controller CPU, ensuring accurate positioning even during high-speed machine cycles.

• Superior Noise Immunity: The module utilizes differential inputs to eliminate common-mode noise. When combined with individually shielded twisted-pair cabling, this hardware maintains pulse count accuracy in environments saturated with electromagnetic interference from large motors or drives.

• Wide Voltage Compatibility: A broad input range of 2.6V to 30V DC allows the 1769-HSC to interface directly with diverse sensor types, including 5V TTL encoders and standard 24V industrial proximity switches, without requiring external signal converters.

• Compact System Integration: The 1769-HSC features a high-density footprint that snaps directly onto standard DIN rails. It integrates seamlessly into the CompactLogix backplane, utilizing the standard 1769 bus for high-speed data transfer to the processor.

FAQs

• How far can I install this module from the system power supply?

  The 1769-HSC has a distance rating of four. You must install this module within four slots of a system power supply (such as a 1769-PA2 or 1769-PB2) to ensure it receives adequate bus voltage and current for stable operation.

• Does this module support single-ended encoders?

  Yes. While differential wiring provides the best noise immunity, you can wire the 1769-HSC for single-ended signals. Follow the manufacturer's wiring diagrams to ensure proper reference grounding for the pulse inputs.

• What type of cable ensures the best performance?

  Always use individually shielded, twisted-pair cable. For encoder applications, follow the specific cable recommendations provided by the encoder manufacturer to prevent signal attenuation over long distances.

• Can the 1769-HSC handle 5V TTL signals?

  Yes. Since the minimum on-state voltage starts at 2.6V DC, the module comfortably detects 5V TTL logic levels, making it ideal for interfacing with high-precision laboratory or CNC encoders.
