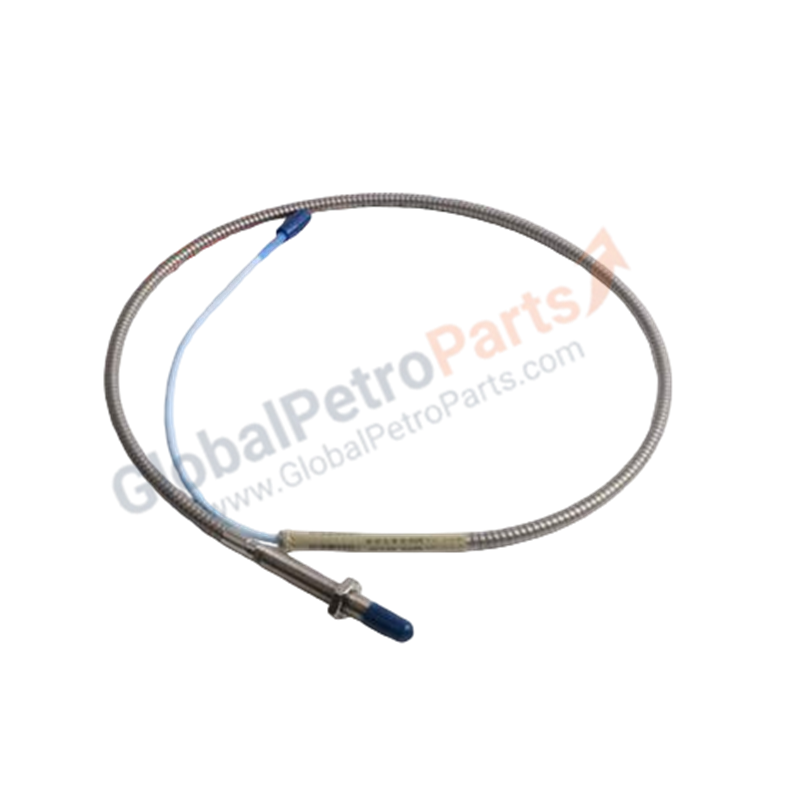

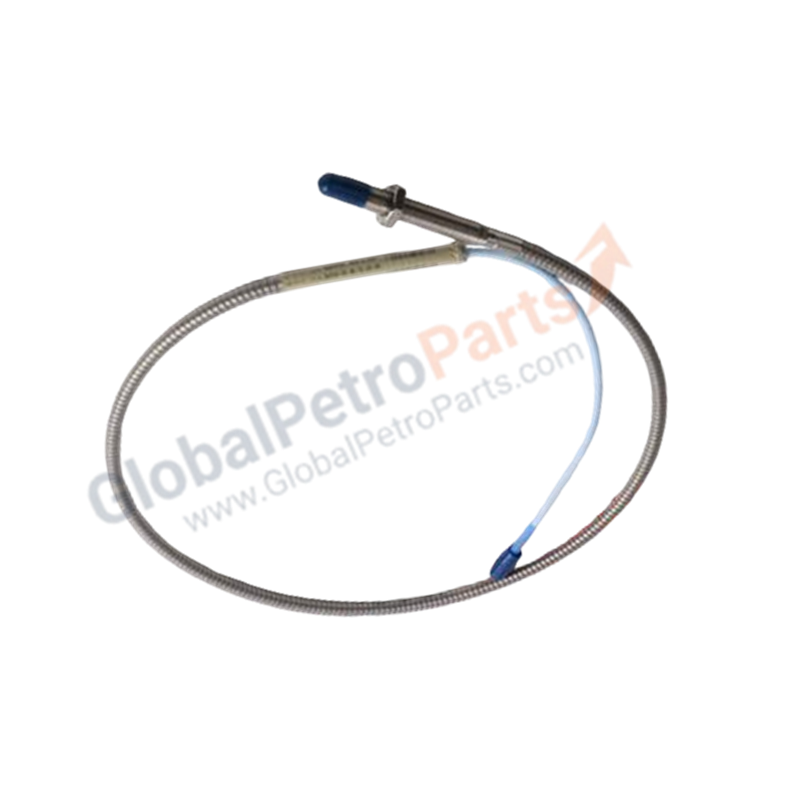

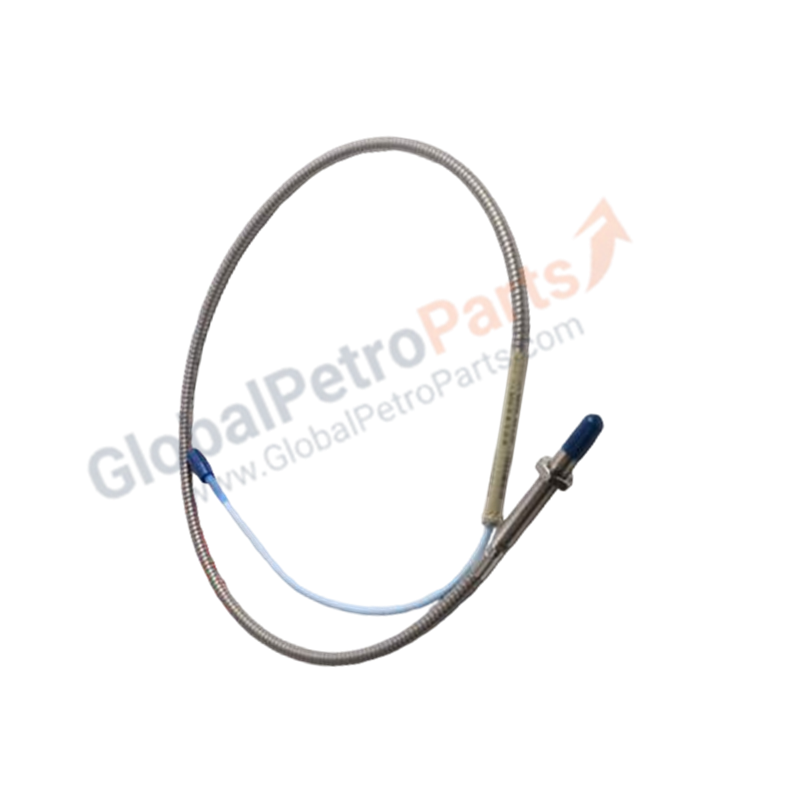

330704-000-050-10-02-CN | Bently Nevada | 3300 XL Proximity Probe

Configured for high-frequency vibration sensing in machine monitoring platforms, the Bently Nevada 330704-000-050-10-02-CN (330704 Proximity Probe) provides direct physical execution of non-contact displacement measurement. This probe functions as the primary transducer interface, translating shaft surface proximity into proportional electrical voltage signals for integration with Bently Nevada monitoring systems.

Suffix Breakdown & Model Matrix

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 3300 XL probe series requires precise eddy-current probe scaling to ensure linear output relative to the target shaft material. Commissioning procedures mandate gap voltage validation at the Proximitor sensor output; technicians should verify a steady -10 VDC reading at the linear center of the probe range to confirm proper installation. Rotor dynamics monitoring is highly sensitive to induced interference; therefore, cross-talk suppression is achieved by maintaining separation from high-current power cables and ensuring that the probe lead is routed within grounded, metallic conduit throughout the cable run.

Frequently Asked Questions

Q: Can the ClickLoc connector be removed to facilitate installation through constrained conduit?

A: No. The ClickLoc interface is factory-molded to maintain the impedance and capacitive characteristics of the coaxial cable. Field-modification will degrade the signal fidelity and invalidate the system's factory calibration.

Q: How do the CN agency approvals affect the installation requirements?

A: The CN designation indicates compliance with specific regional hazardous area standards (NEPSI). Installation must adhere to the local electrical code and the specific hazardous area safety guidelines provided in the corresponding Field Notification Letter.

Field Installation Guidelines

• Mounting Torque: Secure the probe in the mounting bracket using the provided lock nut. Avoid applying excessive torque, which can damage the probe housing threads or deform the probe body.
• Shielding: Continuity of the coaxial shield is required from the probe tip through the connector. The shield should be bonded to the system common at the Proximitor terminal block only to avoid ground loop interference.
• Surface Preparation: Ensure the target shaft surface is free of deep scratches or machining burrs, as these discontinuities will be interpreted as false vibration peaks.
• Cable Handling: Observe the minimum bend radius of 25.4 mm (1.0 inch). Kinks or sharp bends in the coaxial lead will cause impedance shifts, leading to significant measurement errors.
