330707-00-62-10-01-00 3300 XL 11 mm Proximity Probe | Bently Nevada

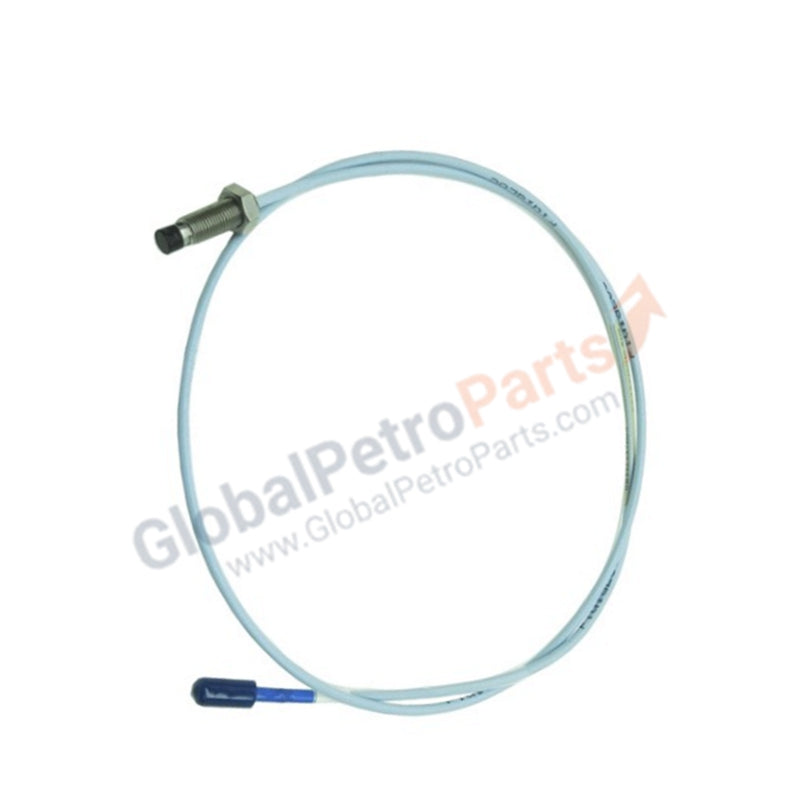

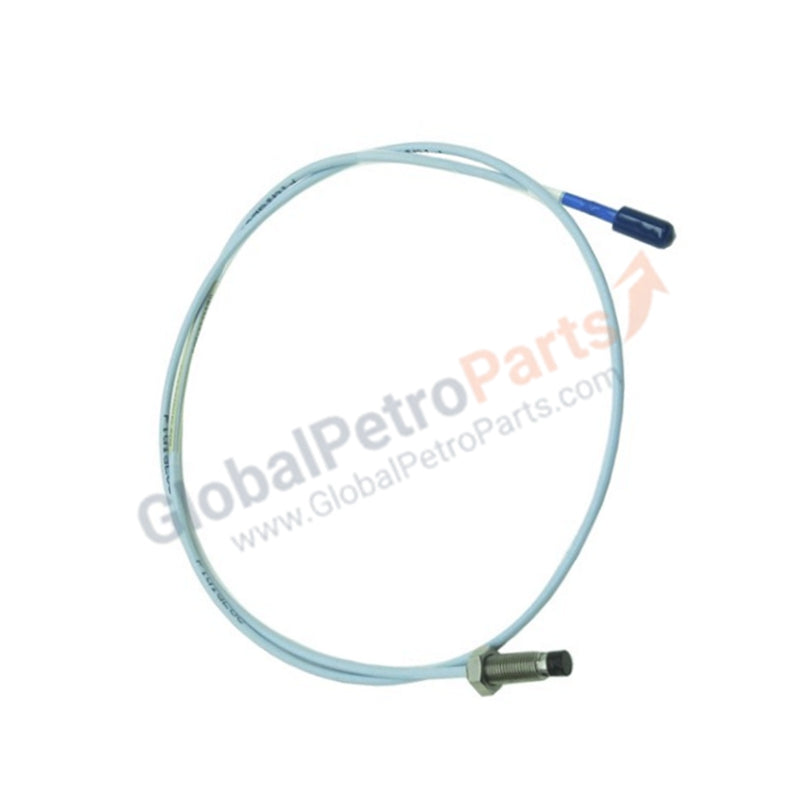

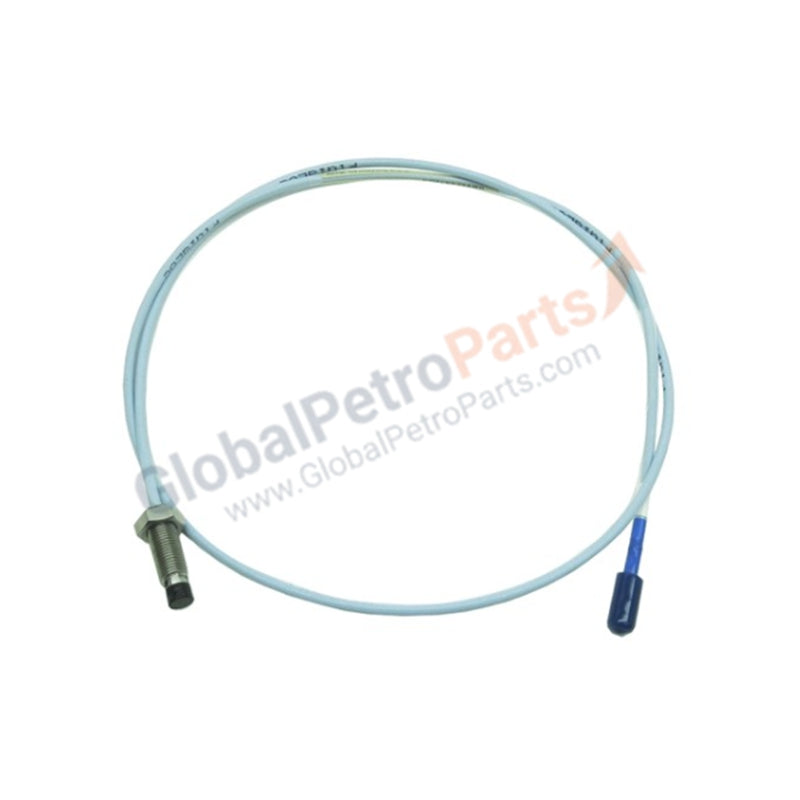

Configured for high-frequency displacement sensing in machine monitoring systems, the Bently Nevada 330707-00-62-10-01-00 (330707 Proximity Probe) provides direct physical execution of non-contact vibration measurement. This hardware component translates axial or radial target displacement into a proportional voltage signal, serving as the primary sensing interface for 3300 XL transducer platforms.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 330707 probe series is engineered with specific coil geometry to ensure consistent output across its designated linear range. Precise eddy-current probe scaling is mandatory; the transducer must be calibrated to a target of 7.87 V/mm (200 mV/mil) for standard AISI 4140 steel surfaces. During commissioning, gap voltage validation at the Proximitor sensor output is required to confirm a nominal -10 VDC reading at the linear center of the probe range. To ensure effective cross-talk suppression in multi-channel installations, cabling must be segregated from high-power switching circuits and routed exclusively within grounded metallic conduits to prevent electromagnetic induction.

Frequently Asked Questions

Q: Can this probe be connected to a Proximitor sensor designed for 8 mm probes?

A: No. The Proximitor sensor is factory-calibrated to the specific inductance and resonant frequency of an 11 mm probe tip. Use of mismatched components causes non-linear signal response and calibration errors.

Q: Is field-repair of the miniature coaxial cable permitted?

A: No. The factory-molded cable assembly maintains precise capacitive and resistive characteristics essential for signal integrity. Any field modification or splicing significantly alters system impedance and invalidates the measurement accuracy.

Field Installation Guidelines

• Gap Setting: Thread the probe into the mounting assembly until the target gap is achieved. Secure the position with a locking nut to prevent displacement during machine operation.
• Shielding: Ensure shield continuity is maintained through all connectors. The system must be grounded at a single, consistent point—typically at the Proximitor terminal block—to eliminate ground loops.
• Connector Care: Use the ClickLoc connector interface for all signal paths. Ensure the connection is fully seated and the connector protector is engaged to prevent moisture or particulate ingress.
• Cable Routing: Adhere to a minimum static bend radius of 25.4 mm (1.0 inch). Avoid applying tensile force to the coaxial cable, as mechanical stress can deform the internal conductor geometry and lead to signal drift.
