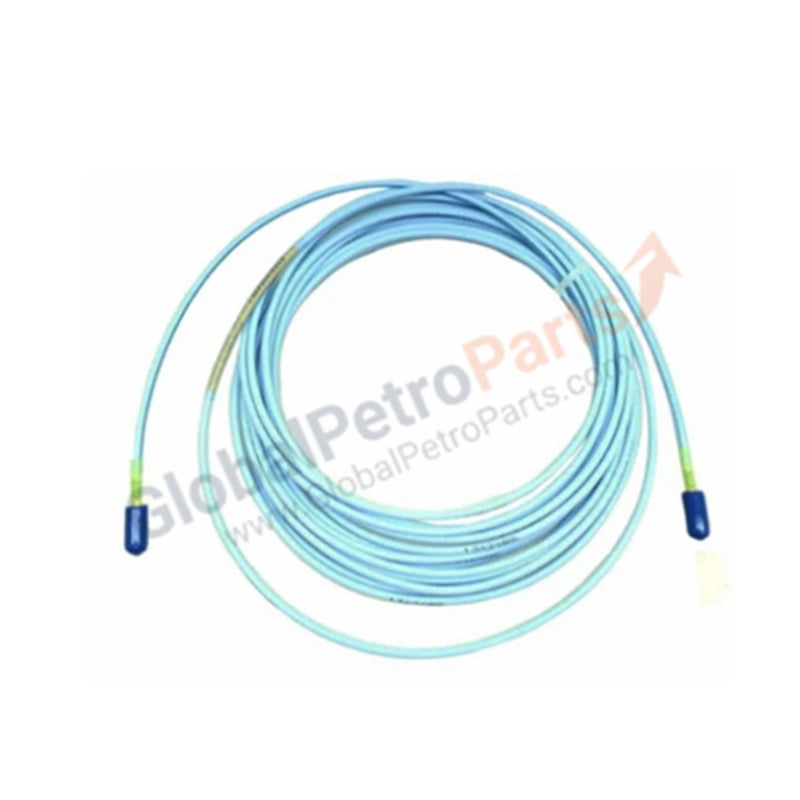

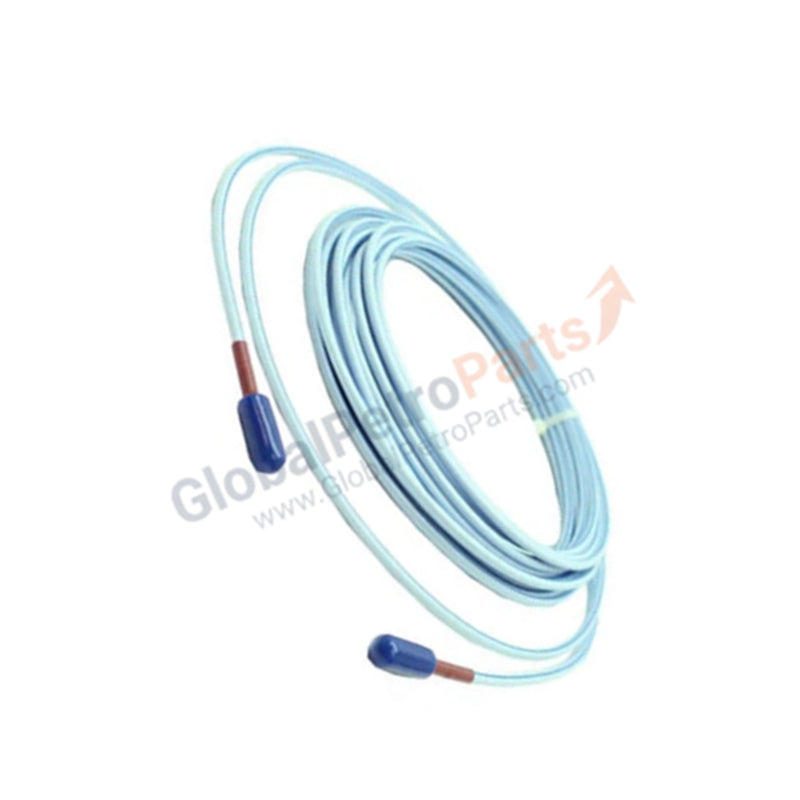

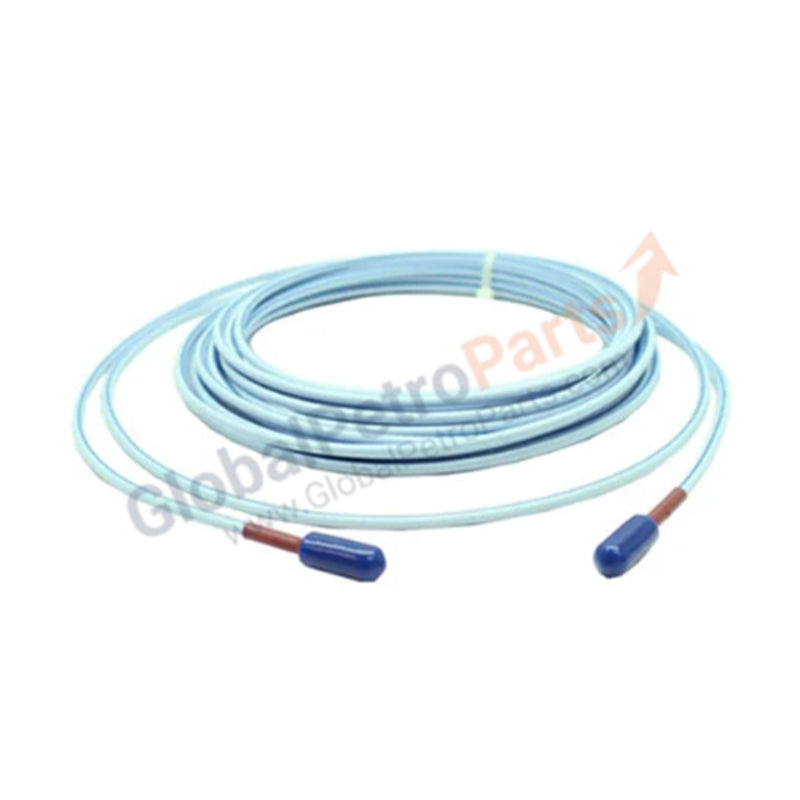

330877-080-37-00 Extension Cable | BENTLY NEVADA

The BENTLY NEVADA 330877-080-37-00, also cataloged as the 330877 Extension Cable, operates as a dedicated hardware component for signal transmission between proximity probes and Proximitor sensors within machine monitoring systems. This cable facilitates the propagation of high-frequency carrier signals while maintaining the impedance characteristics required for accurate displacement measurement in rotating equipment.

Hardware Specifications

Mechanical Monitoring & TSI Integration

The extension cable serves as a critical link in the eddy-current probe scaling process. Variations in cable length or integrity directly affect the total system electrical length, which must be accounted for to ensure the gap voltage validation (-10 VDC targets) remains accurate at the monitor input. Proper installation of the 330877 cable minimizes the risk of signal degradation, which is necessary for the observation of rotor dynamics. Furthermore, the cable construction provides inherent cross-talk suppression by maintaining uniform shielding against electromagnetic interference (EMI) along the signal path.

Frequently Asked Questions

Q: Can the 330877 cable be spliced if damaged?

A: No. Splicing or unauthorized modifications to the extension cable alter the characteristic impedance and signal propagation time. Any repair to the physical length invalidates the system calibration and will cause measurement errors.

Q: How does the cable connector affect signal reliability?

A: The coaxial connector is designed for high-frequency signal integrity. Ensure the connector interface is dry, clean, and tightened to the manufacturer-specified torque to maintain a low-resistance electrical contact and prevent signal noise.

Field Installation Guidelines

1. Route the extension cable through dedicated, grounded metallic conduit to provide shielding against external electrical noise.
2. Maintain a minimum bend radius of at least 5 times the cable diameter to prevent deformation of the center conductor and dielectric.
3. Verify the continuity of the center conductor and the shield independently using an ohmmeter before connecting the transducer system to the monitor.
4. Secure cables using insulated cable ties to prevent mechanical wear and contact with sharp edges or vibration sources.
5. In high-humidity environments, utilize protective connector boots or environmental sealant tape to prevent moisture ingress at the probe-to-cable or cable-to-Proximitor connection points.
