330905-00-10-05-02-00 | Bently Nevada | 3300 NSv Proximity Probes

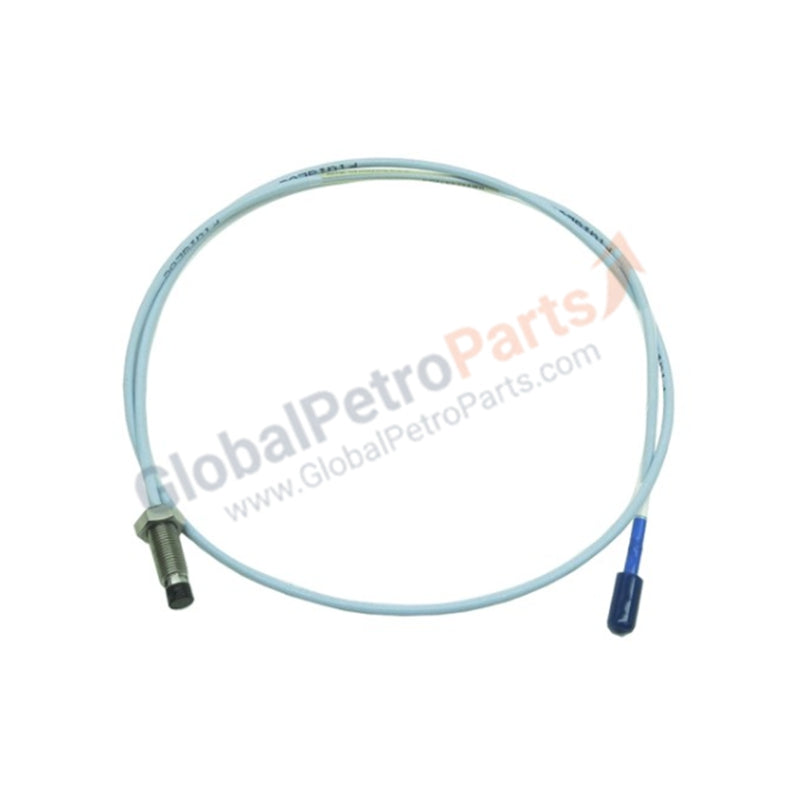

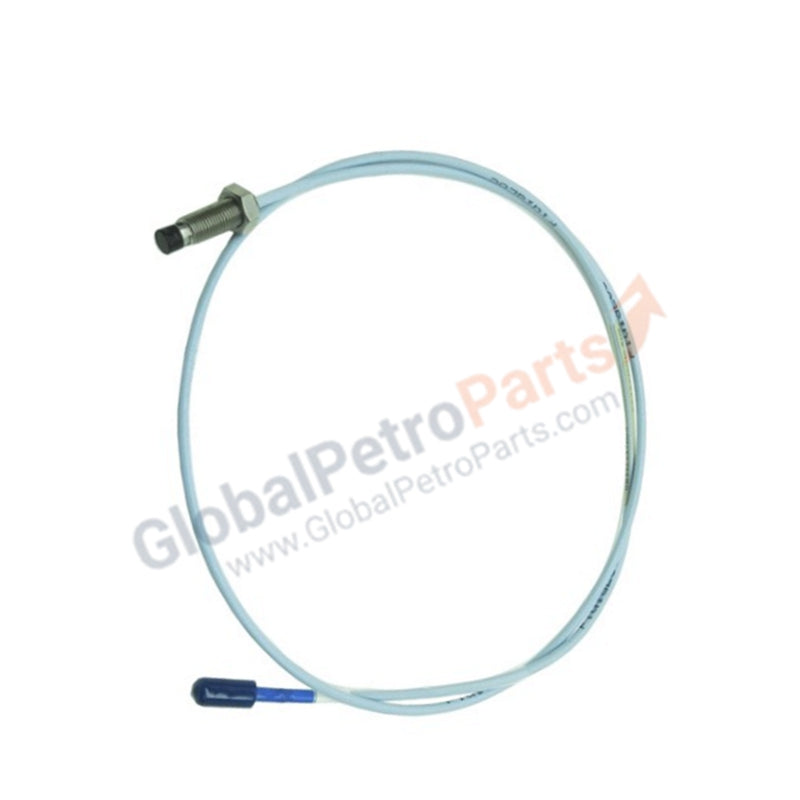

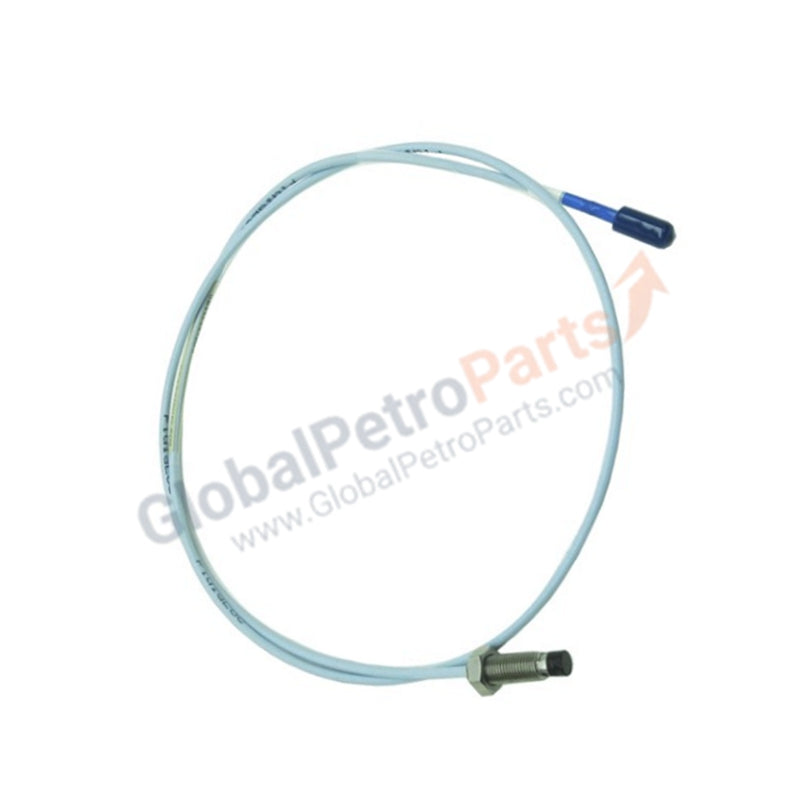

Configured for non-contacting displacement measurement in industrial monitoring systems, the Bently Nevada 330905-00-10-05-02-00 (330905 Proximity Probe) provides direct physical signal transduction via eddy-current interaction.

Hardware Specifications

Mechanical Monitoring & TSI Characteristics

The 3300 NSv system operates on precise eddy-current probe scaling principles, where the proximitor driver generates a high-frequency carrier signal to measure shaft displacement. To ensure optimal rotor dynamics data acquisition, technicians must perform a gap voltage validation during the initial installation. The target gap voltage is typically -10 VDC at the nominal center-gap position; variations from this target may shift the operating point outside the transducer's linear range, causing distortion in the vibration waveforms. In multi-channel installations, users must manage cross-talk suppression by ensuring that coaxial cable shields are consistently bonded to the system common at the Proximitor interface, thereby preventing signal noise injection.

Frequently Asked Questions

Q: How does the Proximity Probe maintain linear output in the near-field?

A: The 3300 NSv system is specifically tuned for near-field applications. It utilizes high-frequency electromagnetic field modulation to measure the distance between the probe tip and the conductive target, ensuring linearity within the specified range despite the restricted geometry.

Q: What are the consequences of an improper gap voltage setting?

A: Setting the gap voltage significantly above or below the -10 VDC target can result in non-linear signal response or saturation of the Proximitor output. This leads to clipping of vibration signals, which compromises the accuracy of rotor orbit analysis and diagnostic trend data.

Field Installation Guidelines

• Mounting Stability: Install the probe in a rigid, non-resonant mounting bracket. Any mechanical motion of the bracket assembly relative to the shaft will be detected as false displacement, manifesting as erroneous vibration data.
• Shielding and Grounding: Maintain the integrity of the coaxial cable shield from the probe tip to the monitoring unit. Do not allow the cable shield to contact the machine casing at any point other than the designated grounding terminal, as this induces ground loops.
• Gap Adjustment: Prior to final locking, rotate the probe housing to set the mechanical gap. Continuously monitor the output voltage with a high-impedance digital multimeter until the nominal -10 VDC center-gap reading is achieved.
• Cable Routing: Route the coaxial lead through dedicated conduit to provide protection from mechanical damage and EMI. Observe the minimum bend radius specifications to avoid deformation of the cable geometry, which alters the characteristic impedance.
