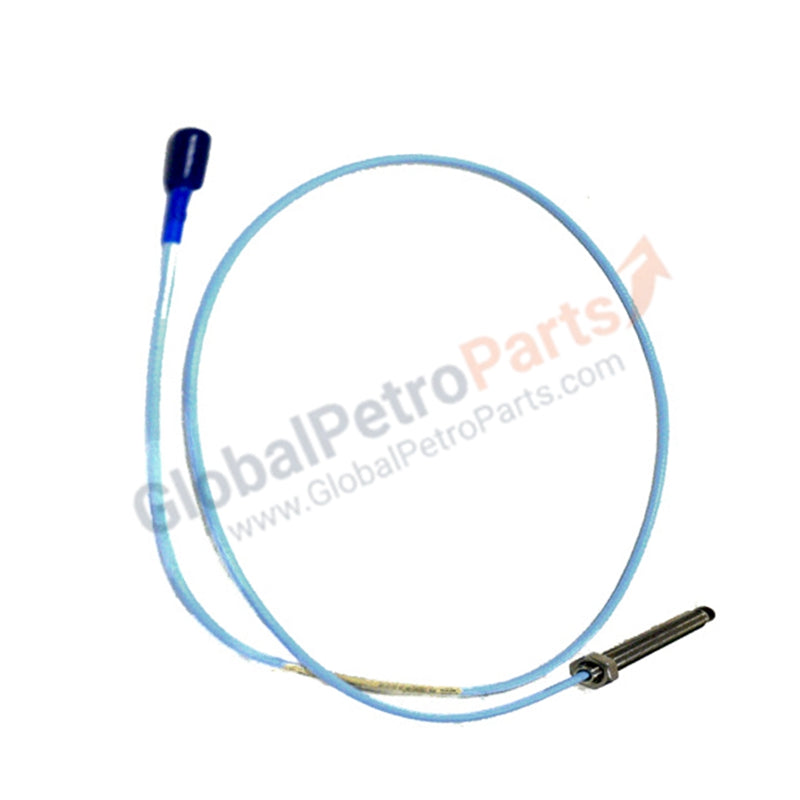

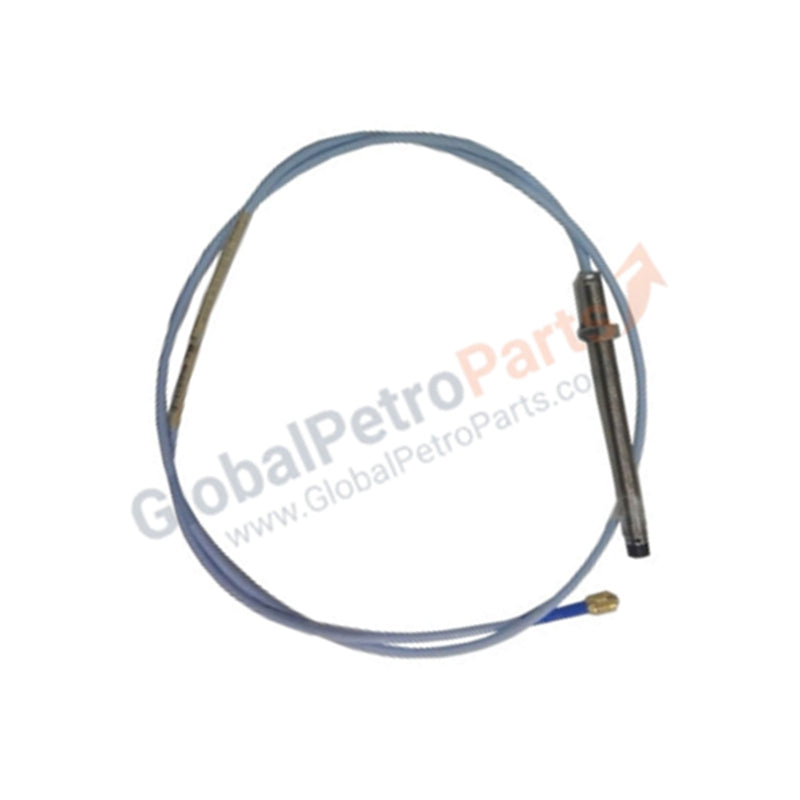

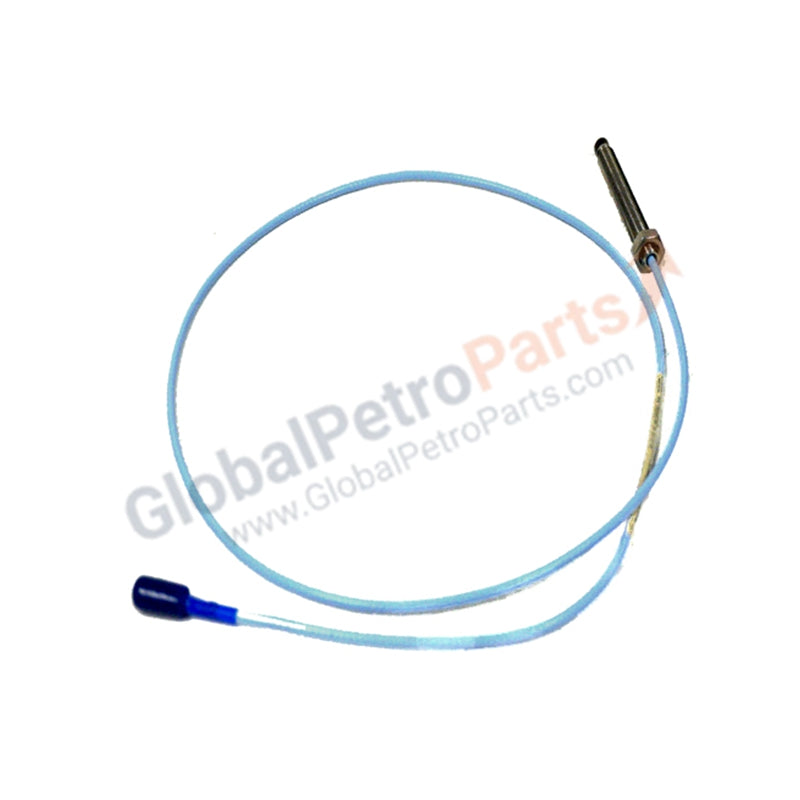

330905-00-12-10-02-00 | Bently Nevada | 3300 NSv Proximity Probe

Configured for precision displacement measurement in restricted installation envelopes, the Bently Nevada 330905-00-12-10-02-00 (330905 Proximity Probe) provides direct physical signal execution via eddy-current induction across machinery monitoring platforms.

Suffix Breakdown & Model Matrix

• 330905: Base Model (3300 NSv Proximity Probe, M10 x 1 thread)
• -00: Unthreaded Length (0 mm)
• -12: Overall Case Length (120 mm)
• -10: Total Length (1.0 meter)
• -02: Connector and Cable-Type (Miniature coaxial ClickLoc connector, standard cable)
• -00: Agency Approval (Not required)

Hardware Specifications

Mechanical Monitoring & TSI Characteristics

The 3300 NSv system utilizes eddy-current probe scaling to translate target distance into a proportional voltage signal. Because the NSv series is designed for near-field applications, maintaining the correct gap voltage validation (-10 VDC nominal center-gap target) is necessary to ensure the linearity of the transducer output. Variations in the rotor material or surface conductivity can introduce measurement errors, requiring calibration to the specific target. To prevent signal degradation and maintain rotor dynamics accuracy, cross-talk suppression must be observed; ensure the 75 ohm coaxial cable path is free from high-frequency interference and that the shield is properly terminated at the monitoring interface.

Frequently Asked Questions

Q: What is the benefit of the FluidLoc cable construction?

A: The FluidLoc cable is engineered with a proprietary internal sealant that inhibits the migration of oils and process gases through the cable jacket. This prevents fluid ingress from reaching the Proximitor or monitoring system, protecting internal electronics in environments where the cable is exposed to pressurized fluids.

Q: How does the CableLoc design affect cable integrity?

A: The CableLoc design provides a mechanical pull strength of 220 N (50 lbf) at the probe tip interface. This ensures that the cable-to-tip bond remains intact under mechanical stress or thermal cycling, preventing intermittent signal failures often associated with internal conductor fractures.

Field Installation Guidelines

• Mounting Stability: The M10 x 1 threaded body must be secured with appropriate locking hardware. Verify that the mounting bracket does not exhibit resonant frequencies near the operating speed of the observed shaft.
• Grounding and Shielding: The coaxial cable shield must be continuous and properly grounded at the Proximitor sensor housing. Do not allow the cable shield to contact the machine casing at any point other than the designated grounding terminal to avoid ground loop formation.
• Gap Adjustment: Utilize a high-impedance digital multimeter to monitor the Proximitor output. Rotate the probe to adjust the air gap until the reading reaches -10 VDC at the nominal center-gap position before final locking.
• Cable Routing: Keep the coaxial lead away from AC power wiring and high-frequency communication cables to minimize EMI injection. Ensure the cable bend radius exceeds the minimum manufacturer requirements to prevent structural deformation of the inner conductor.
