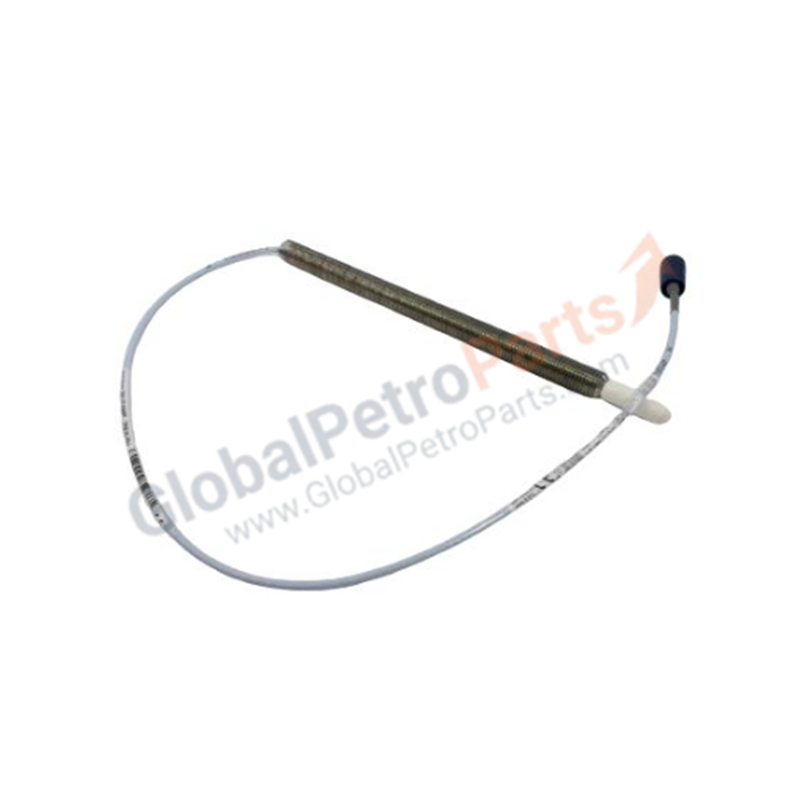

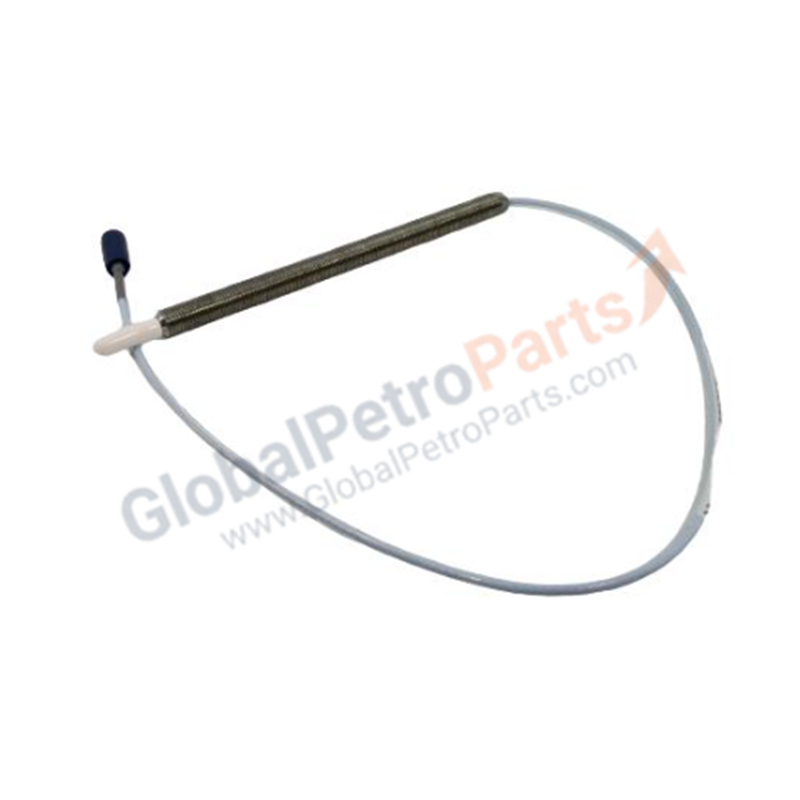

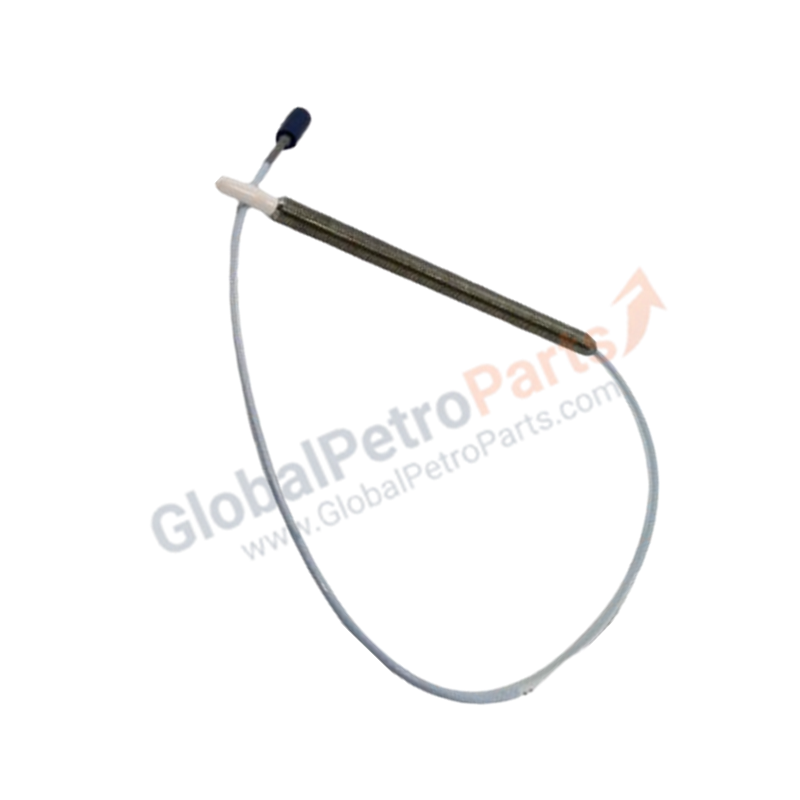

330905-07-17-05-02-05 3300 NSv Proximity Probe | Bently Nevada

The Bently Nevada 330905-07-17-05-02-05, also cataloged as the 330905 Proximity Probe, operates as a dedicated hardware component for non-contact vibration and displacement measurement within 3300 NSv machinery monitoring platforms.

Suffix Breakdown & Model Matrix

Hardware Specifications

Gap Voltage Validation and Rotor Dynamics

Consistent transducer performance depends on precise gap voltage validation. The probe system must be calibrated to a nominal -10 VDC gap voltage at the target center, ensuring linear operation across the 1.5 mm range. Maintenance personnel are required to verify this bias point using a high-impedance digital multimeter to confirm that the transducer signal path is correctly balanced. In applications involving complex rotor dynamics, proper gap monitoring prevents output saturation, which is critical for the accurate spectral analysis of radial vibration and the detection of shaft centerline position shifts. Cross-talk suppression must be enforced by maintaining required physical separation between adjacent probe tips to avoid modulation interference.

Frequently Asked Questions

Q: Is the IP67 environmental rating maintained if the ClickLoc connector is not connected to a sealed junction box?

A: No. While the probe body and cable assembly are rated IP67, the ClickLoc connector interface itself is not environmentally sealed. The connector must be housed within a NEMA-rated or IP67-rated junction box to prevent moisture and contaminant ingress.

Q: Can the 4-20 mA output be directly interfaced with a standard PLC input card?

A: The 4-20 mA output signal is provided for process integration, but users must ensure the loop load resistance does not exceed the specified maximum for the 24 VDC power supply. Ensure the signal return is isolated to prevent ground loops with the host PLC.

Field Installation Guidelines

• Probe Positioning: Install the M10 x 1 threaded body into a rigid, vibration-isolated bracket. Secure the jam nuts after reaching the target -10 VDC gap voltage to prevent mechanical shift during high-speed operation.
• Cable Routing: Maintain a minimum bend radius of 25 mm for the coaxial cable to prevent dielectric stress. Route the cable through grounded metallic conduit, keeping it at least 30 cm away from high-voltage AC cabling to mitigate electromagnetic interference.
• Shield Grounding: Terminate the cable shield at the monitoring system chassis ground. Avoid multiple ground points, which can introduce low-frequency noise (50/60 Hz) into the vibration waveform.
• Connector Care: Inspect the ClickLoc pins for debris before mating. Ensure the locking collar is fully rotated to the "locked" position to maintain electrical continuity under vibratory conditions.
