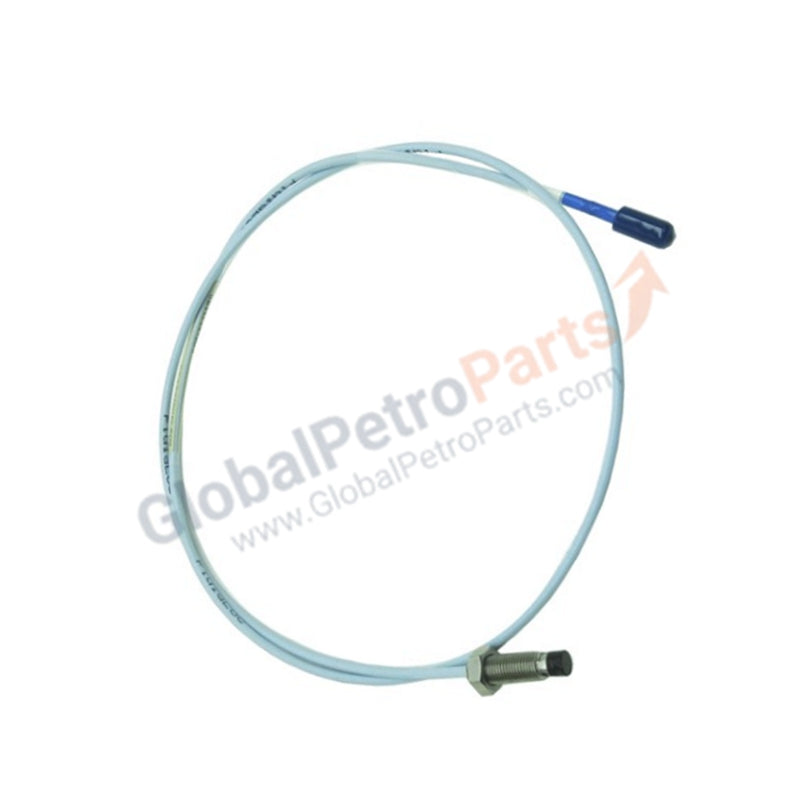

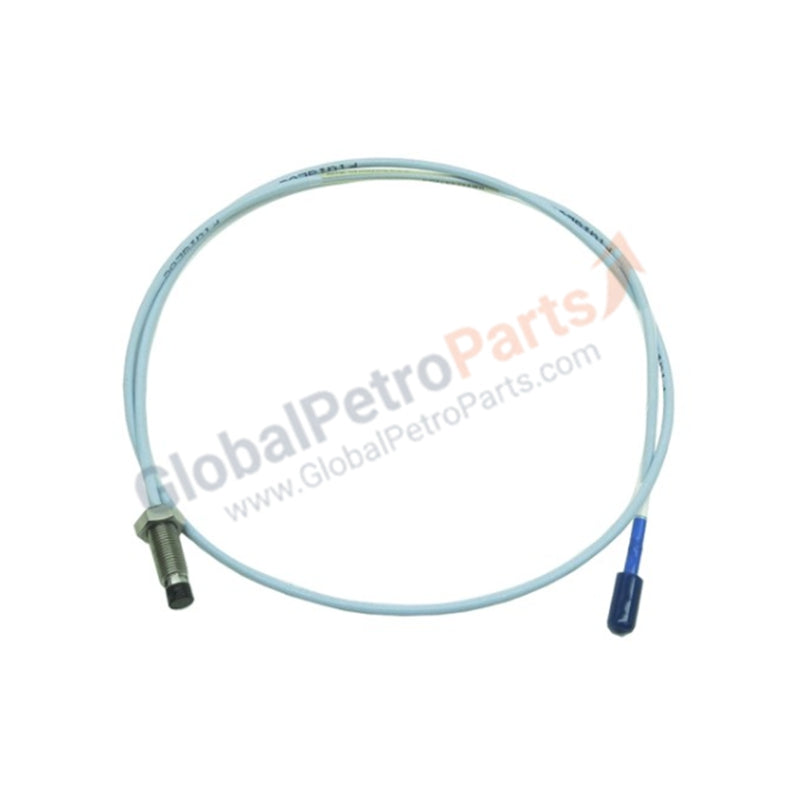

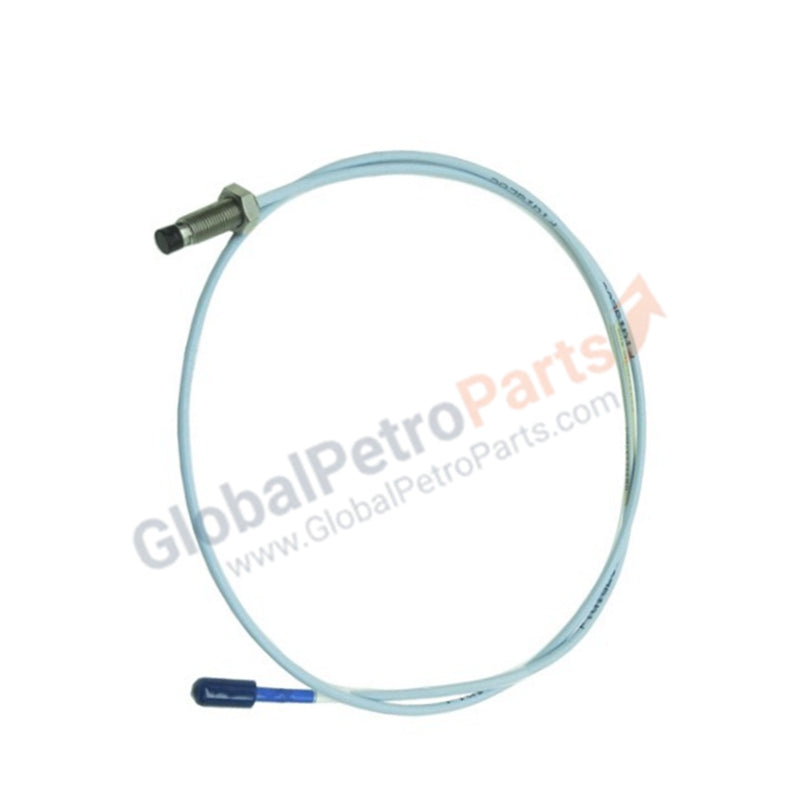

Configured for high-frequency displacement and vibration measurement in small-shaft rotating machinery, the Bently Nevada 330908-12-31-10-02-00 (330908-12-31-10-02-00 3300 XL NSv Proximity Probe) provides direct physical signal acquisition via electromagnetic induction for machine monitoring networks.

Suffix Breakdown & Model Matrix

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 330908-12-31-10-02-00 requires integration with a 3300 XL NSv Proximitor Sensor to convert probe tip inductance variations into a linear voltage signal, typically scaled at 7.87 V/mm (200 mV/mil). During operational setup, the gap voltage must be validated against the -10 VDC target, which marks the center of the 1.0 mm linear range. Correct calibration of this static gap is prerequisite to accurate rotor dynamic analysis, including shaft centerline positioning and orbital vibration detection. Installation must account for cross-talk suppression by maintaining adequate physical separation from adjacent probes if multiple sensors are mounted within the same observation plane.

Frequently Asked Questions

Q: What is the primary purpose of the ClickLoc connector on this probe?

A: The ClickLoc connector provides a secure, repeatable high-frequency coaxial connection between the probe cable and the extension cable, designed to minimize impedance mismatches and signal attenuation.

Q: Is it permissible to modify the cable length of the 330908 probe system?

A: No. The 3300 XL NSv system is calibrated as a matched set (probe, extension cable, and Proximitor Sensor); modifying cable lengths will alter the system impedance and degrade measurement accuracy.

Field Installation Guidelines

1. Thread Engagement: Ensure the probe body is installed with sufficient thread engagement for mechanical stability while verifying the PPS tip does not interfere with the target shaft.
2. Grounding: Maintain the integrity of the coaxial shield from the probe tip to the Proximitor terminal block. Use a high-quality instrument ground to prevent common-mode noise.
3. Torque Limits: Tighten mounting nuts to specified torque values to prevent drift during machine cycling. Do not exceed the mechanical limits of the 303 stainless steel housing.
4. Cable Routing: Protect the coaxial cable from vibration-induced abrasion by securing it within conduit or using appropriate cable ties, ensuring a minimum bend radius is maintained to prevent inner conductor damage.
