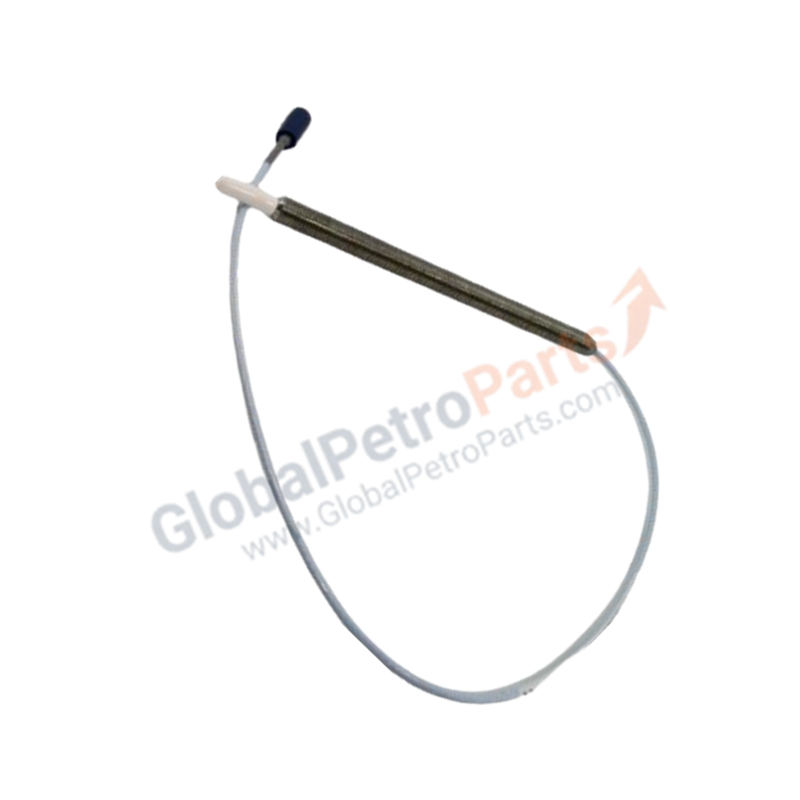

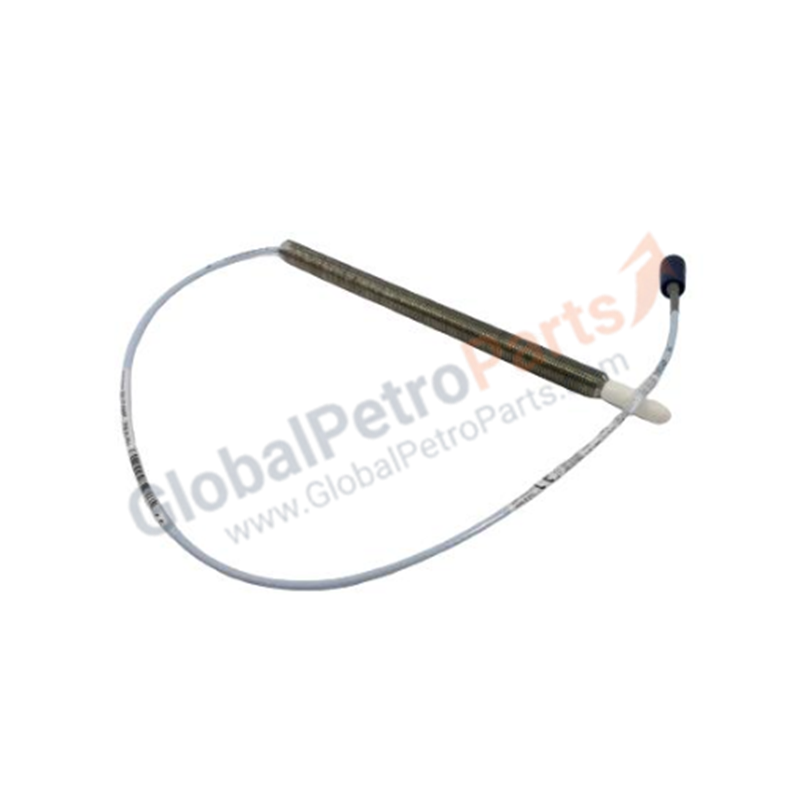

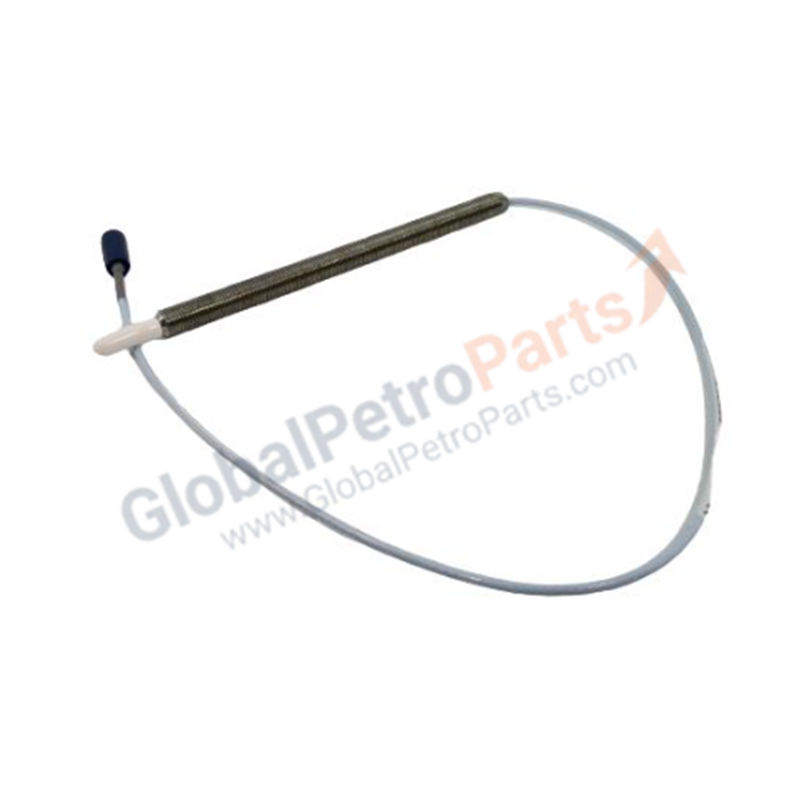

330910-07-23-10-02-00 | Bently Nevada | 3300 NSv Proximity Probe

The Bently Nevada 330910-07-23-10-02-00, also cataloged as the 330910-07-23-10-02-00 Proximity Probe, operates as a dedicated hardware component for non-contact displacement sensing within machine condition monitoring networks.

Suffix Breakdown & Model Matrix

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 330910-07-23-10-02-00 functions via electromagnetic induction, requiring integration with a matched 3300 NSv Proximitor Sensor. To maintain system linearity of 7.87 V/mm (200 mV/mil), the probe must be positioned to achieve a gap voltage target of -10 VDC at the mechanical center of its linear range. Precise installation is required to capture rotor dynamic data, such as shaft centerline position and radial vibration. Users must verify the signal path to prevent cross-talk or high-frequency interference induced by improper cable routing or inadequate shield grounding when multiple probes are installed in a single observation plane.

Frequently Asked Questions

Q: What is the primary requirement for establishing the correct gap voltage?

A: The probe must be adjusted mechanically within the target zone to achieve a static gap voltage of approximately -10 VDC when powered by a compatible Bently Nevada 3300 NSv Proximitor Sensor.

Q: Is it permissible to modify the cable length of the 330910 probe system?

A: No. The 3300 NSv system is calibrated as a matched set (probe, extension cable, and Proximitor Sensor); modifying cable lengths will alter the system impedance and degrade measurement accuracy.

Field Installation Guidelines

1. Thread Engagement: Ensure the M10 x 1 threads are clean and free of debris. Verify adequate thread engagement depth as per site installation diagrams.
2. Shielding: Maintain electrical continuity of the coaxial shield to the instrument ground to mitigate noise injection into the Proximitor loop.
3. Connector Integrity: The ClickLoc connector requires a clean, dry connection. Ensure the locking mechanism is fully engaged to prevent intermittent signal loss caused by vibration.
4. Gap Setting: Use a feeler gauge to establish the initial gap setting before tightening the jam nut. Perform a final verification of the gap voltage using a digital multimeter after securing the probe.
