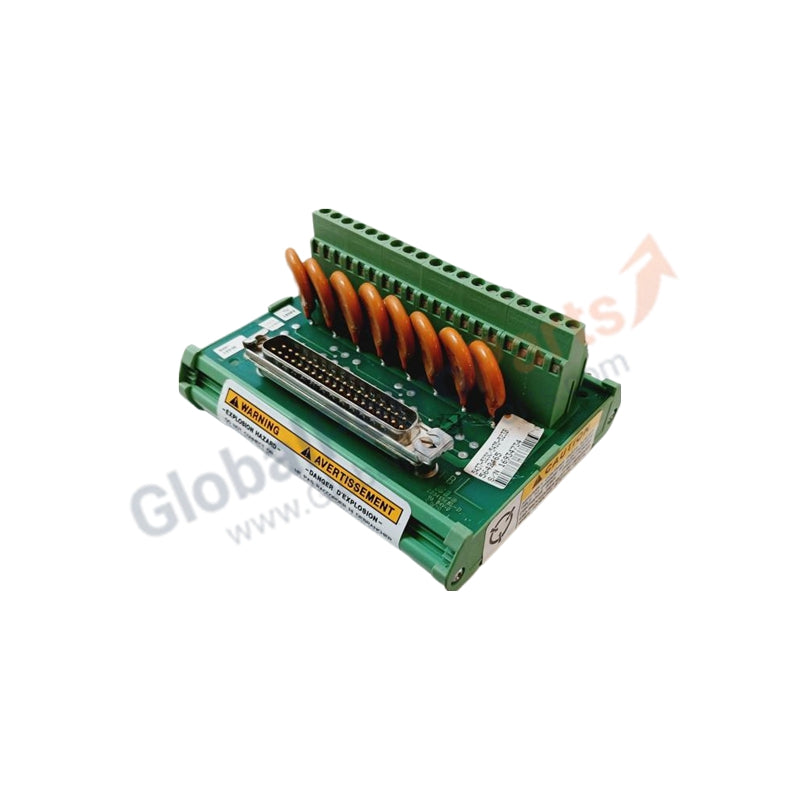

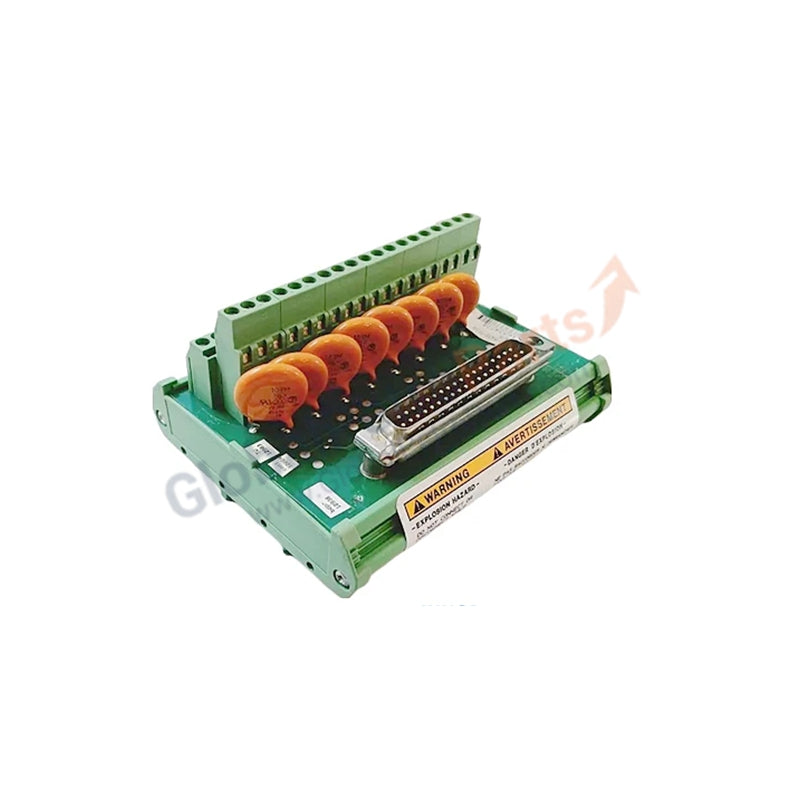

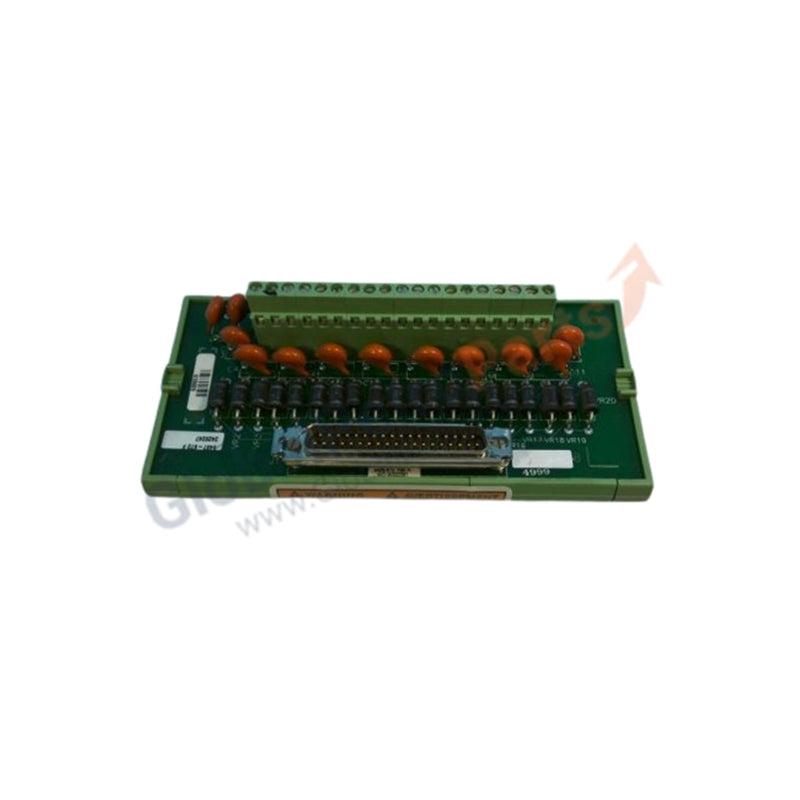

Woodward 5437-523 MicroNet Plus Analog Field Terminal Module

The 5437-523 (Model: 5437-523 Rev C) is a precision Analog Field Terminal Module (FTM) engineered for the Woodward MicroNet™ Plus control platform. This module serves as the primary physical interface between field-mounted analog sensors and the MicroNet I/O modules, facilitating the high-fidelity signal acquisition required for turbine, compressor, and large engine regulation. The 5437-523 (Part Number: 5437-523) is designed to condition and route signals from pressure transmitters, temperature probes, and position feedback devices into the control system with minimal signal degradation.

Featuring a robust 37-pin sub-D connector and high-density screw clamp terminals, the 5437-523 (FTM: 5437-523) supports 16 independent analog input channels. Its architecture emphasizes galvanic isolation and noise immunity, boasting 1500 VDC channel-to-system isolation. This is critical in the electrically noisy environments of turbine skids, where ground loops and electromagnetic interference can otherwise compromise governor stability. Adhering to Google E-E-A-T principles for mission-critical hardware, this module is rated for hazardous locations with ATEX and API 670 certifications, ensuring expertise and trustworthiness in global power generation and petrochemical applications.

Detailed Technical Specifications

The 5437-523 (5437-523) combines high-density connectivity with industrial-grade protection.
