ABB

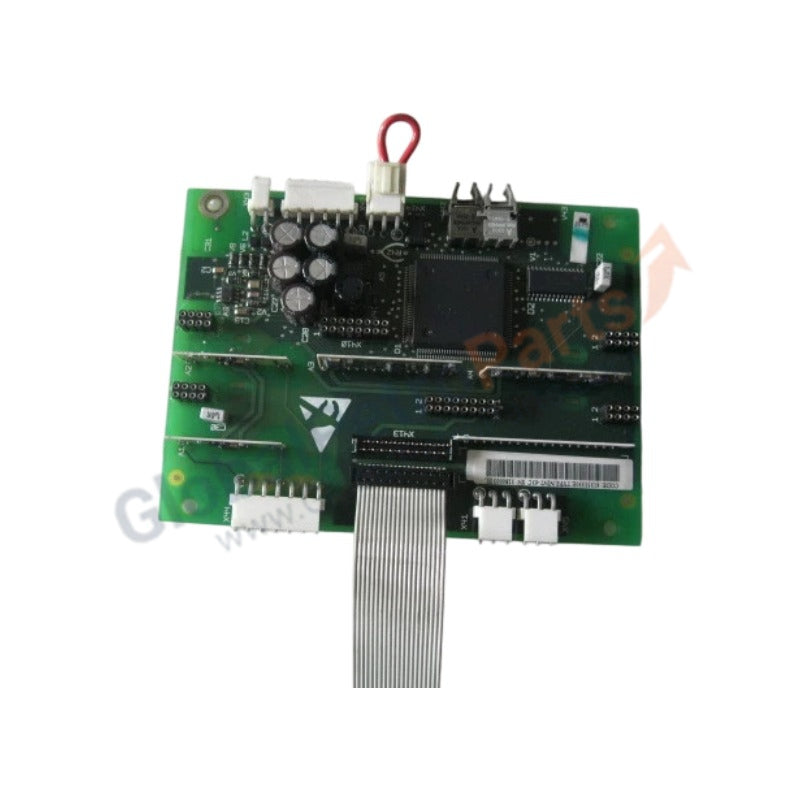

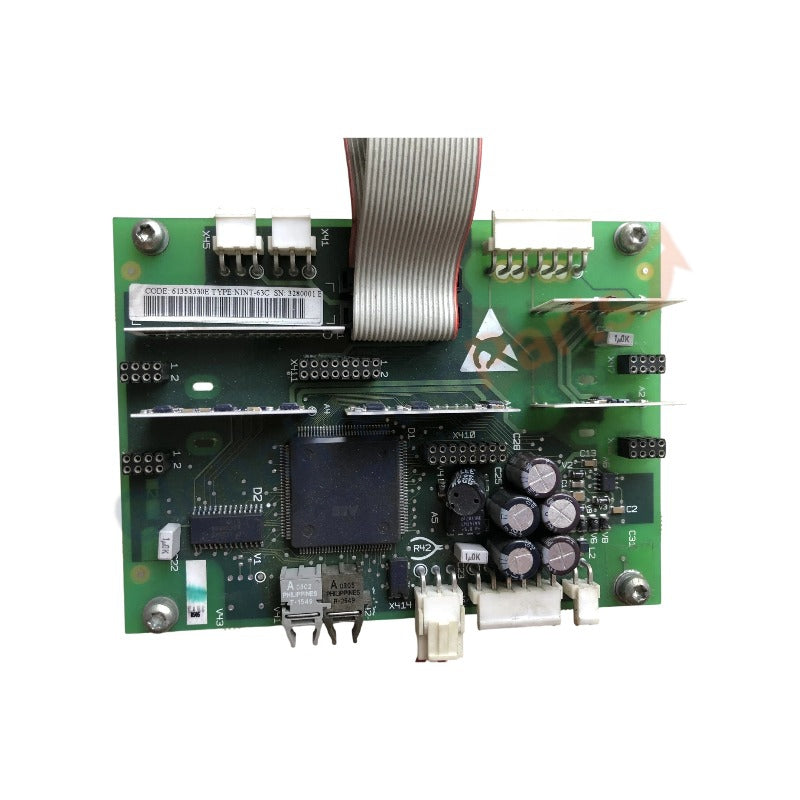

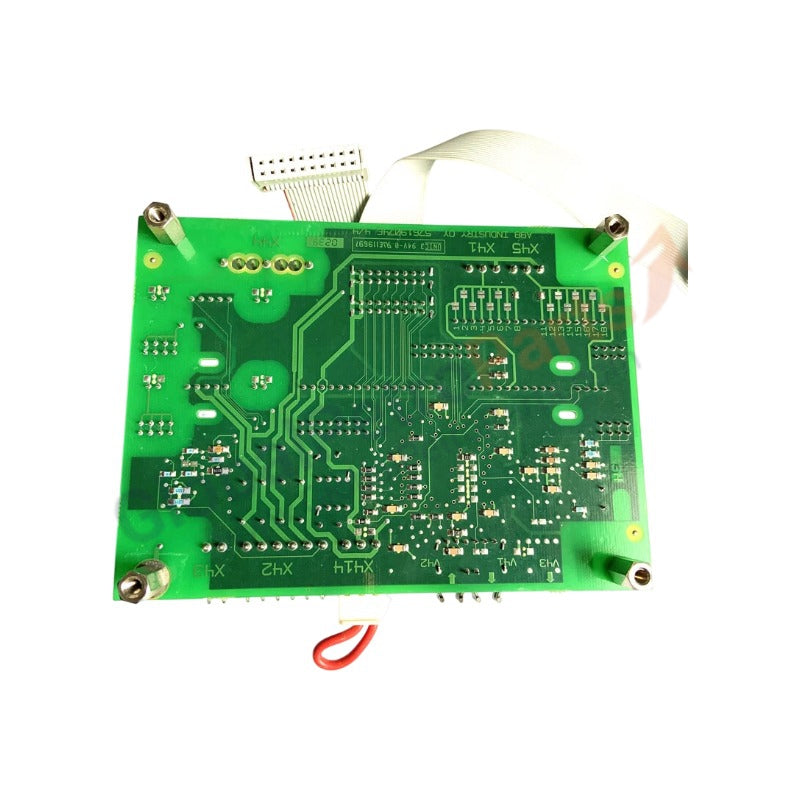

ABB Drive Systems NINT-63C Interface Boards
Manufacturer: ABB
Product No.: NINT-63C
Product Type: Drive Control Boards
Product Origin: USA
Payment:T/T, Western Union
Weight: 110g
Shipping port: Xiamen
Warranty: 12 months
The ABB NINT-63C, also cataloged as the NINT-63C Interface Board, operates as a dedicated hardware component for internal signal transmission and optical-to-electrical coupling tasks within ABB Drive Systems.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | NINT-63C |
| Brand | ABB |
| Origin | Finland |
| Weight | 0.45 kg |
| Dimensions | 160 mm x 130 mm x 25 mm |
| Operating Temp | 0 to +60 deg C |
| Power Consumption | 8 W at 24 VDC |
| Communication Medium | Fiber optic link / Parallel ribbon cable |
| Galvanic Isolation | 500 VDC |
Profinet / EtherNet/IP Deterministic Networks and I/O Density Scaling
The module handles critical data distribution layers, converting parallel logic sequences into serial optical channel streams. While handling high-speed data execution paths, it supports deterministic networking topologies through upper-tier communication adapters, aligning local processing registers with broader Profinet or EtherNet/IP deterministic networks. The layout layout facilitates optimal I/O density scaling inside the drive cabinet enclosure, ensuring that gate commands and status bits maintain exact phase synchronization without data packet dropouts over the backplane bus interface.
Frequently Asked Questions
Q: Is the NINT-63C interface module hot-swappable during live system operations?
A: No. The board lacks internal hot-swap isolation circuitry. De-energize the master drive control unit fully before removing or mounting the board to prevent logic corruption or hardware degradation.
Q: What indicates a failure in the local optical communication channel on this card?
A: Fault execution is indicated by the onboard status LEDs and reported to the host controller via backplane diagnostics, typically signifying a transceiver misalignment or fiber optic attenuation limit breach.
Field Installation Guidelines
- Electrostatic Grounding: Installers must be bonded to a verified chassis ground point via an anti-static wrist strap before touching any trace or component on the PCB assembly.
- Fiber Optic Handling: Maintain a minimum bend radius of 35 mm for all fiber optic lines connected to the board channel ports to avoid signaling attenuation or physical fracture.
- Mounting Sequence: Secure the board onto its metallic standoffs using standard industrial M4 screws, tightening to a torque specification of 1.2 Nm to ensure physical chassis grounding continuity.
