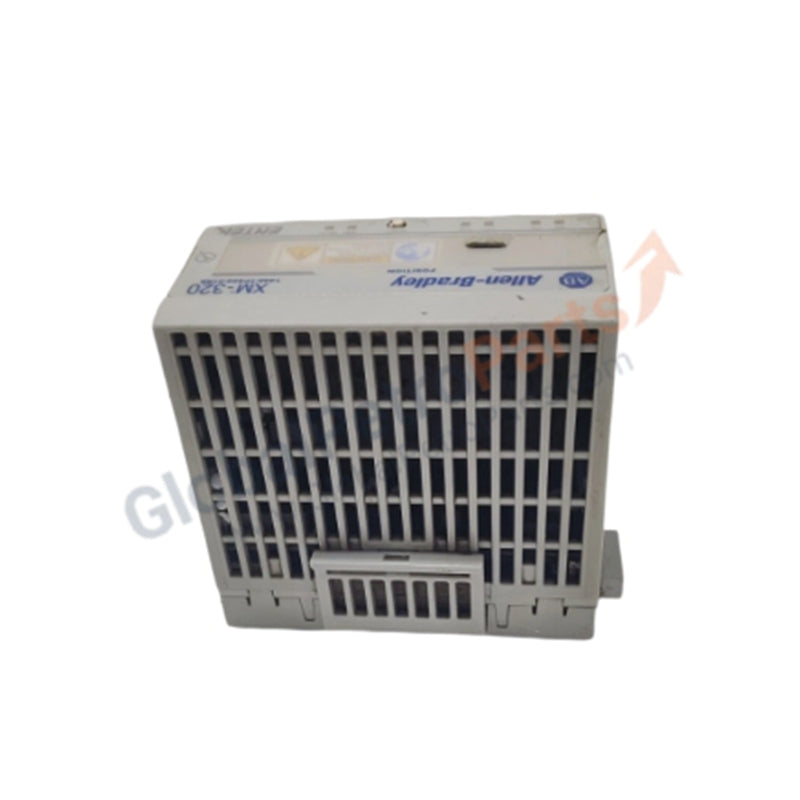

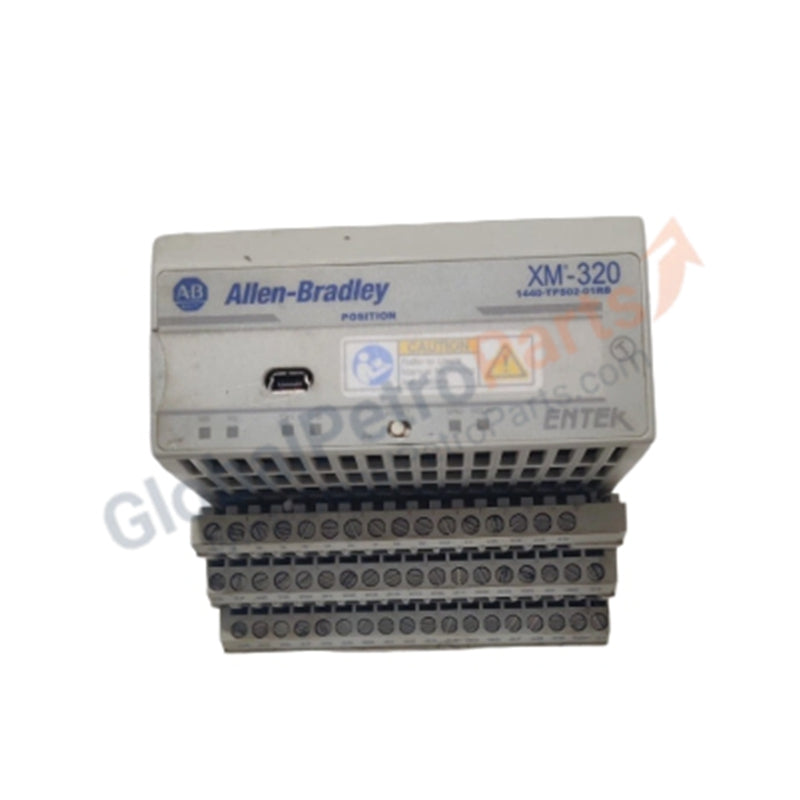

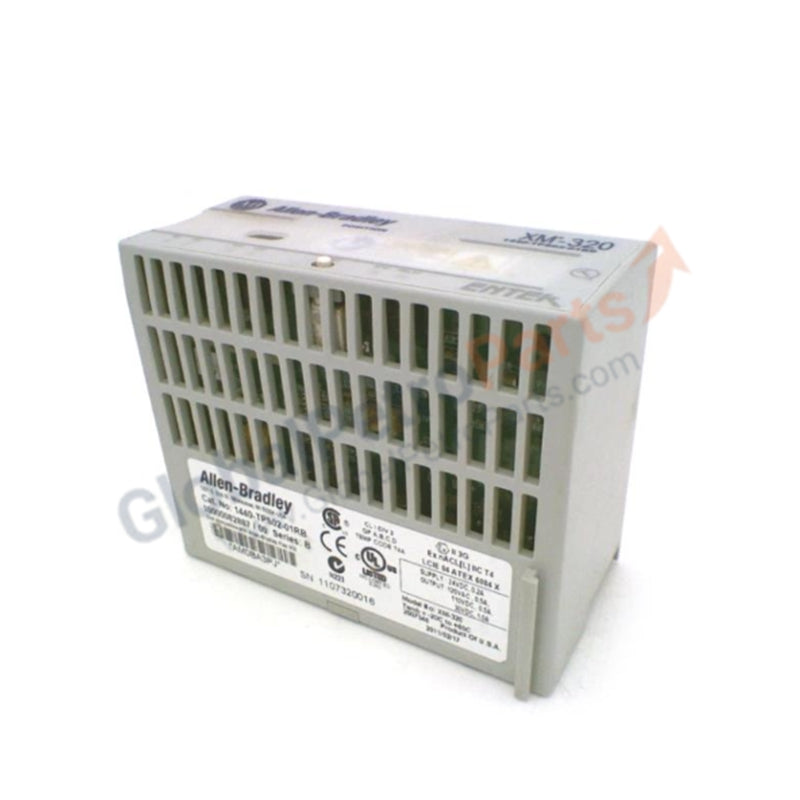

Allen-Bradley 1440-TPS02-01RB XM Series Position Measurement Module

Product Description

The Allen-Bradley 1440-TPS02-01RB is a high-precision position measurement module from the XM Series, engineered for monitoring turbine supervisory positions and critical process parameters. This module provides accurate measurement of axial position, case expansion, differential expansion, and valve position, ensuring reliable performance in demanding industrial environments.

Designed for easy integration, the 1440-TPS02-01RB supports two input channels and operates on 24 VDC, offering low power consumption and robust signal fidelity. Its terminal base mounting allows secure installation and straightforward wiring in control panels.

Technical Specifications

• Manufacturer: Allen-Bradley / Rockwell Automation

• Model: 1440-TPS02-01RB

• Product Type: Position Measurement Module

• Series: XM

• Voltage Rating: 24 VDC

• Current Rating: 200 mA

• Power Consumption: 5.28 W

• Number of Channels: 2

• Operating Temperature: -20°C to +65°C (-4°F to +149°F)

• Mounting: Terminal base

• Weight: Approx. 0.5 lbs

Features

• Monitors axial, case, differential, and valve positions

• Dual-channel input for enhanced measurement flexibility

• Compact and durable design suitable for turbine supervisory systems

• Low power operation and efficient signal processing

• Terminal base mount for reliable and secure installation

Application Scenarios

The 1440-TPS02-01RB is ideal for power generation, turbine control, and process monitoring applications where precise position measurement is critical. It can be integrated into existing XM Series systems or standalone control panels requiring high accuracy and reliability.

FAQs

Q: How many channels does the 1440-TPS02-01RB support?
A: The module supports 2 independent input channels for monitoring multiple parameters.

Q: What is the operating voltage range?
A: The module operates at 24 VDC with a nominal current of 200 mA.

Q: Can it be mounted in standard control panels?
A: Yes, it uses a terminal base mount compatible with standard panel installations.
