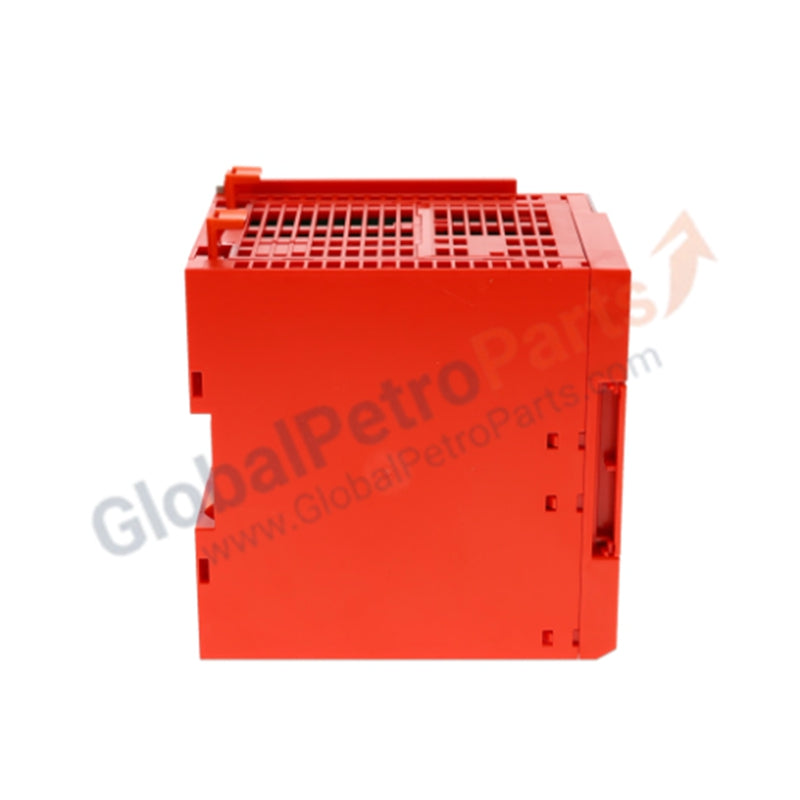

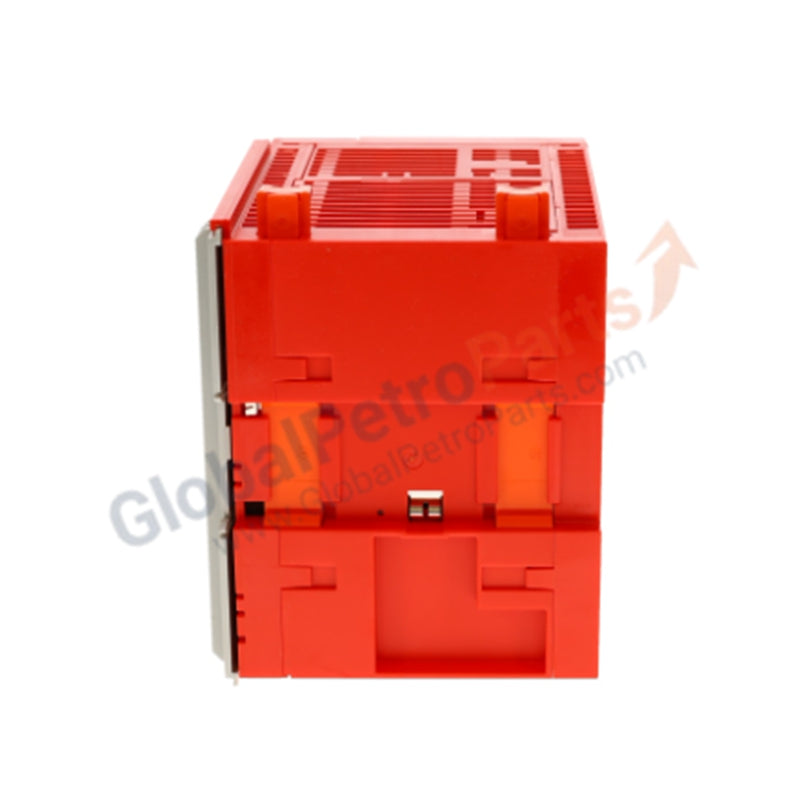

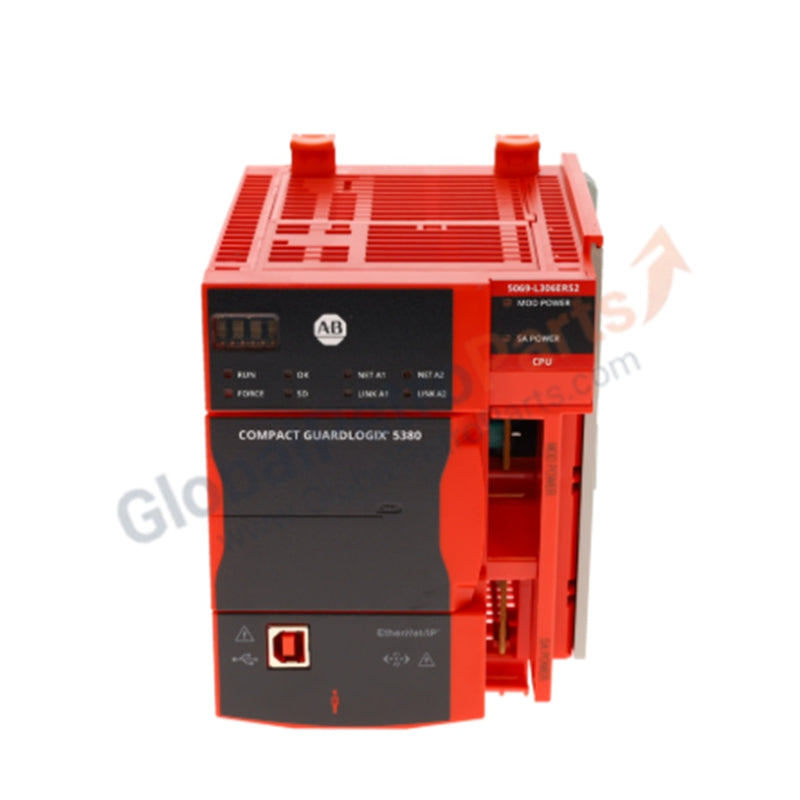

Allen-Bradley 5069-L306ERS2 Compact GuardLogix 5380 SIL 2 Safety Controller

Product Overview

The Allen-Bradley 5069-L306ERS2 functions as a high-performance safety controller within the CompactLogix 5380 family. It executes both standard and safety-related functions simultaneously, achieving a SIL 2/PLd rating. This module streamlines system architecture by eliminating the need for separate safety hardware, providing a unified control environment for medium-scale industrial applications. We offer this unit as 100% Brand New and Original, ensuring your critical safety systems operate with maximum integrity from day one.

Technical Specifications

This controller utilizes advanced processing to handle demanding Ethernet/IP traffic and localized safety logic.

Engineering Advantages

• High-Speed Safety Processing: The controller runs a dedicated safety task alongside 31 standard tasks. This ensures safety logic execution remains deterministic and unaffected by standard routine overhead.

• Gigabit Networking Capability: Dual 1Gbps Ethernet ports support massive data throughput. The hardware enables Device Level Ring (DLR), Star, and Linear topologies, ensuring network resiliency and minimizing downtime during cable breaks.

• Optimized Panel Density: By controlling up to 8 local 5069 I/O modules and 16 Ethernet nodes in a compact form factor, this unit saves significant DIN rail space. It effectively solves the industrial pain point of crowded enclosures in modernizing facilities.

• Simplified Disaster Recovery: The unit ships with a 1784-SD2 card. This card stores the user project and firmware permanently, allowing maintenance teams to swap hardware and restore production without requiring a programming laptop.

FAQs

• Does the 5069-L306ERS2 support motion control axes? While the controller supports Integrated Motion over Ethernet/IP for synchronization, this specific model (L306ERS2) does not support position loop motion axes. It focuses on logic and safety-intensive applications.

• How does the SIL 2 rating impact my system design? The SIL 2 rating allows you to use this controller in applications requiring Performance Level d (PLd). It provides the diagnostic coverage necessary to monitor safety inputs and control safety outputs (such as STO on drives) directly through the network.

• Can I use standard 5069 I/O modules with this safety controller? Yes. The 5069-L306ERS2 manages both standard 5069 I/O and 5069-series safety I/O modules on the same local backplane, providing a truly integrated control solution.

• What is the primary function of the USB port? The Type B USB 2.0 port provides a dedicated local programming and diagnostic interface. It operates at 12 Mbps, allowing for rapid firmware flashes and logic monitoring without consuming bandwidth on the primary industrial Ethernet network.
