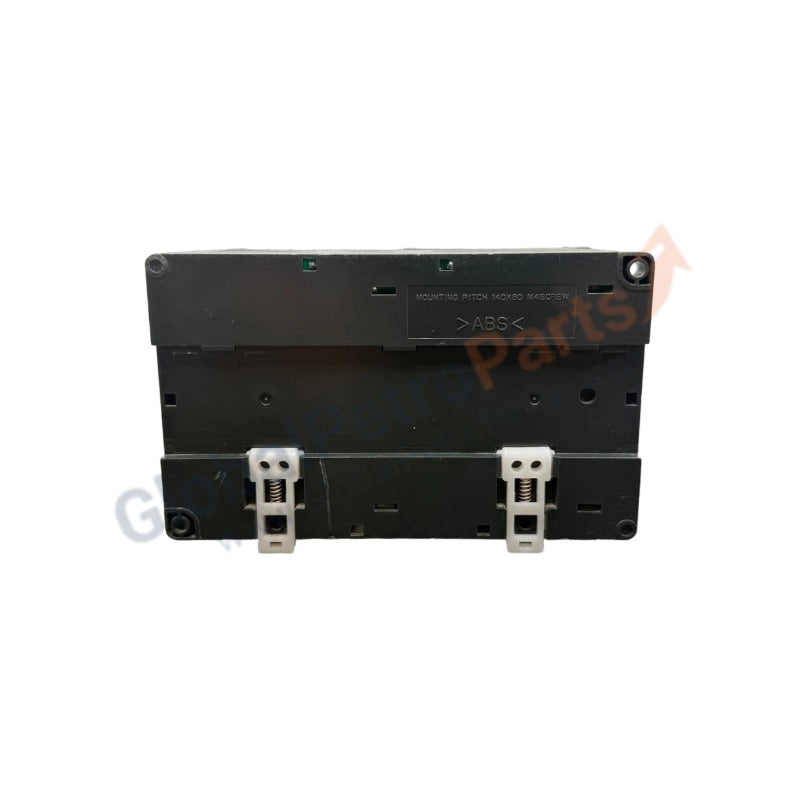

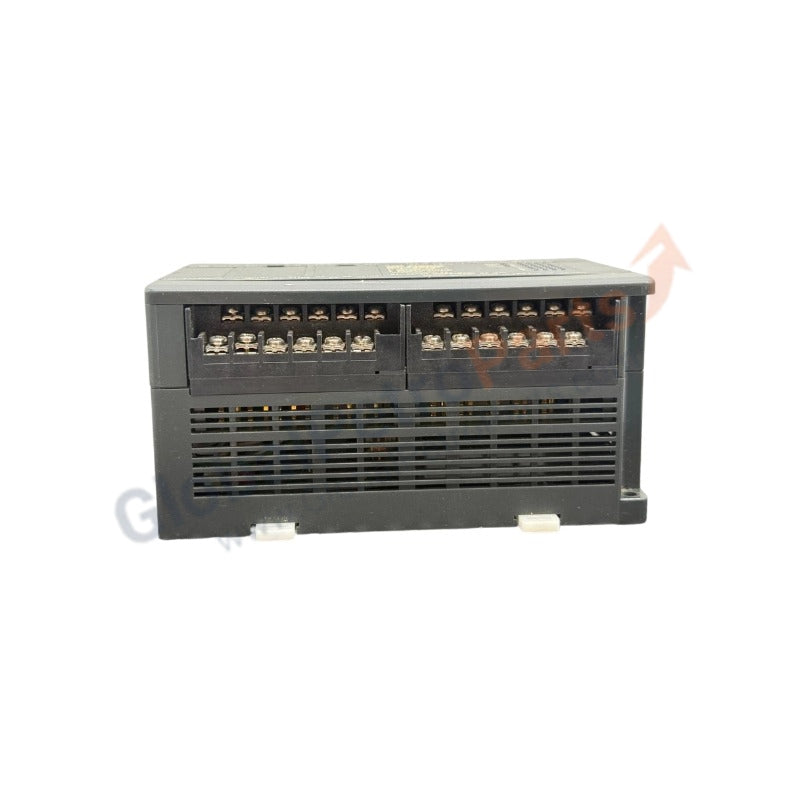

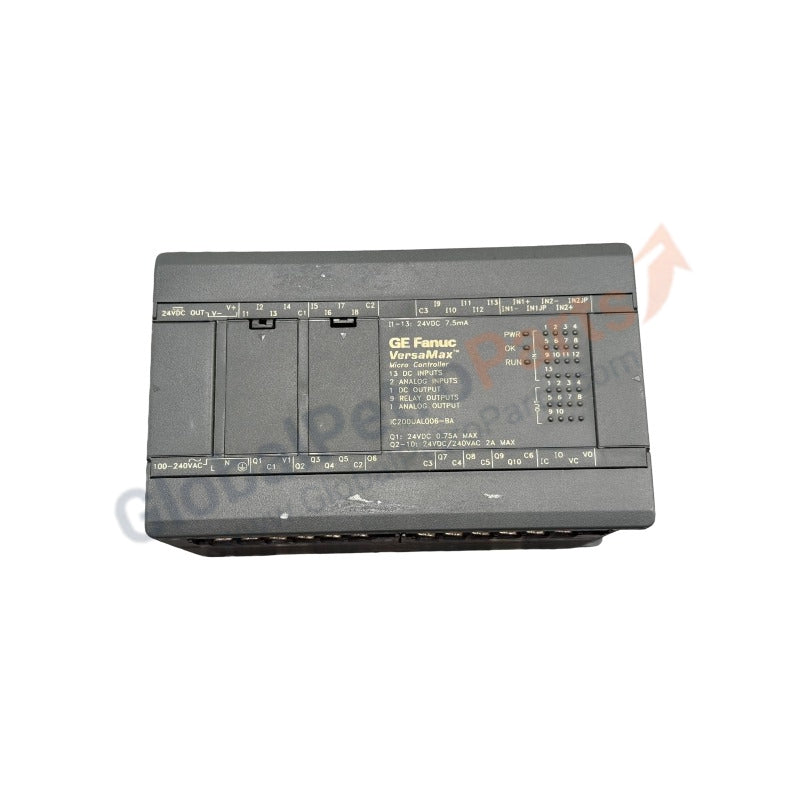

Analog Input Modules IC200UAL006 GE VersaMax

The GE IC200UAL006 serves as the primary IC200UAL006 Mixed Analog Module utilized to execute physical loop measurement and analog signal conversion tasks across VersaMax Distributed I/O platforms. Configured to interface directly with low-level electrical transmitters and actuators, the hardware converts current/voltage field telemetry into numeric data registers distributed through the sub-rack interface assembly.

Hardware Specifications

I/O Density Scaling and Firmware Flash Compatibility

This dual-function analog component establishes direct electrical continuity with the local carrier structure to sustain the required backplane bus communication velocity across the processing assembly. It expands the physical boundaries of local clusters, enabling precise I/O density scaling by condensing separate input and output conversion circuits into a single hardware footprint. Loop configuration parameters map out variables without software changes, matching host parameters via system firmware flash compatibility routines inside the head end network interface to regulate deterministic trace filtration.

Frequently Asked Questions

Q: Does the IC200UAL006 module configuration support active hot-swap insertion when loops are energized?

A: Yes. The hardware configuration allows active hot-swap module extraction and insertion cycles on an active carrier frame. However, the external 24 VDC auxiliary loop supply should be disconnected at the terminal block to eliminate inductive path spikes during the insertion sequence.

Q: How does the module handle a total loss of external 24 VDC auxiliary power?

A: Upon validation that the external loop source has dropped below 19.2 VDC, the module shuts down its digital conversion block, flags an internal diagnostic fault back to the host CPU via the backplane interface, and forces both analog output channels to drop to zero current/voltage.

Q: Are individual channels isolated from one another within the analog circuit array?

A: No. The input channels utilize a single-ended circuit framework referencing a shared common return path line. To prevent structural cross-talk and ground loop measurement errors, all connected field loops must share a common electrical reference potential.

Field Installation Guidelines

• Mechanical Base Alignment: Seat the module perpendicular onto the matching VersaMax carrier tracks. Push the upper and lower edges downward until the integrated side-locking plastic ears latch into a flush position.
• Conductor Wire Metric: Strip the outer insulation of the instrumentation shield pairs back by exactly 6 mm. Insert the conductors fully into the terminal clamping frame to ensure no bare wire remains exposed.
• Terminal Screw Fastening Torque: Torque all terminal assembly wire clamping screws to a fixed limit of 0.5 Nm to maintain electrical contact reliability under thermal expansion cycles.
• Shield Grounding Matrix: Terminate the analog signal shield drain wires directly to the designated ground rail on the carrier. Keep the outer shield ungrounded at the field transmitter side to avoid common-mode noise corruption.
