Analog Output Modules Series 90-30 IC693ALG391 GE Fanuc

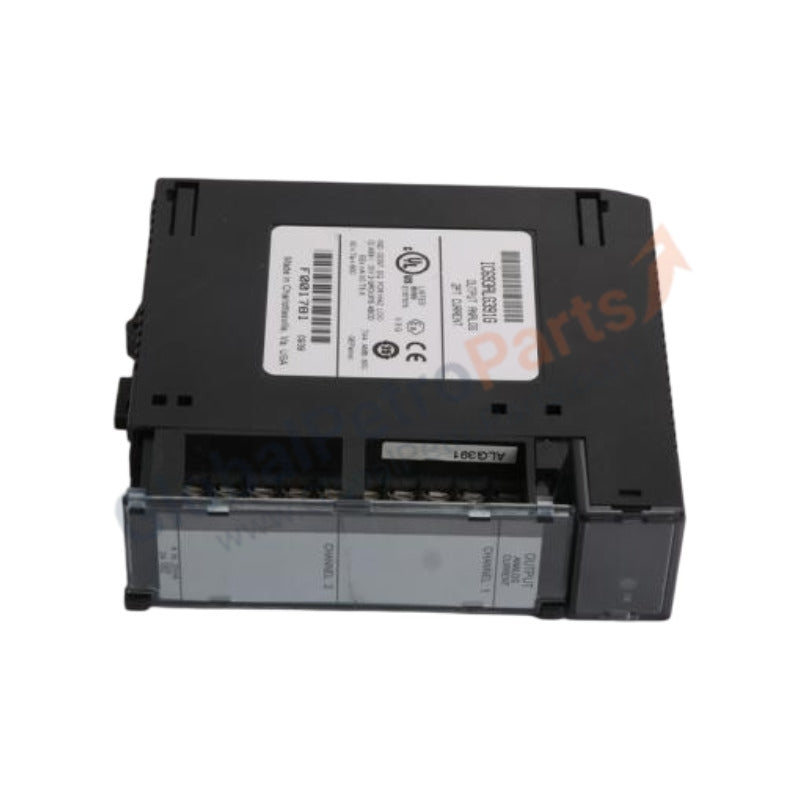

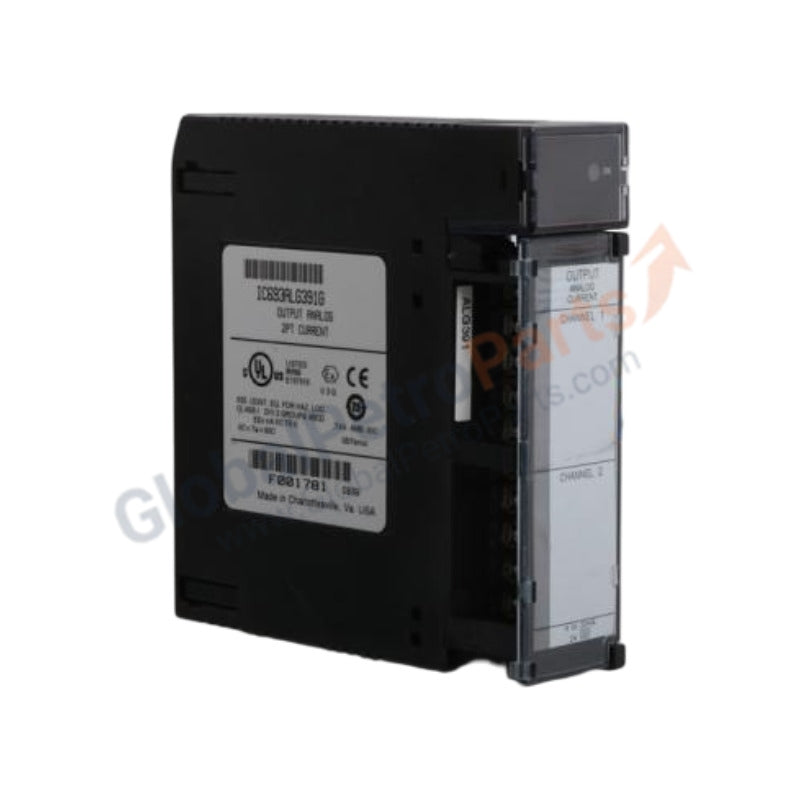

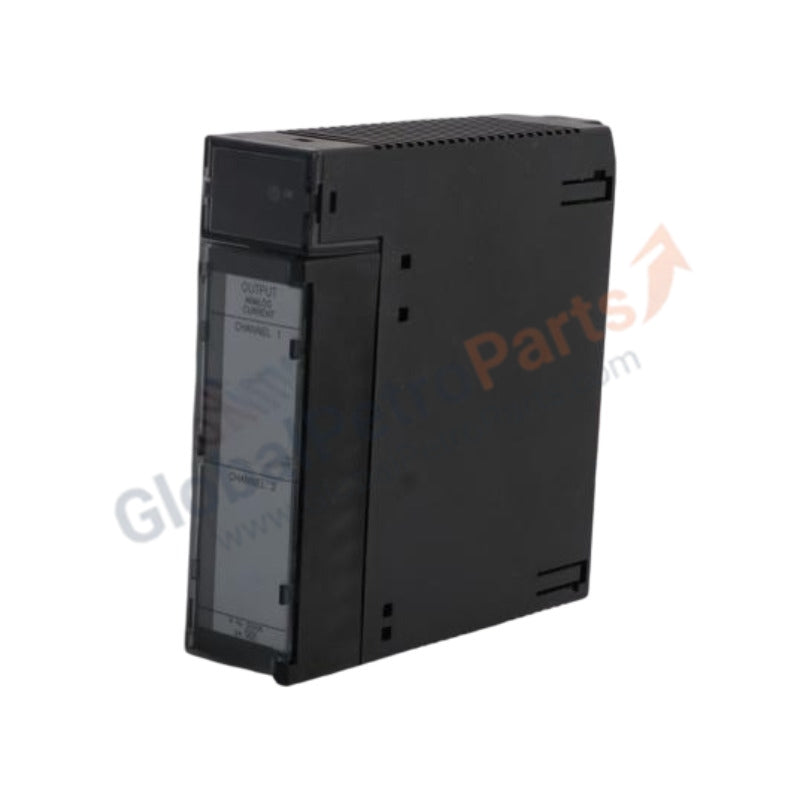

The GE Fanuc IC693ALG391 serves as the primary IC693ALG391 Analog Output Module utilized to execute physical current and voltage loop generation across Series 90-30 Programmable Logic Controller platforms.

Hardware Specifications

Deterministic Interface and Backplane Bus Communication Velocity

The internal microcontroller architecture links directly into the passive chassis assembly, optimizing data synchronization frames to secure maximum backplane bus communication velocity across the internal module grid. The hardware updates its output register maps dynamically within each PLC program execution sweep, rendering low conversion latencies when driving external devices. System integration supports unhindered firmware flash compatibility constraints with standard Series 90-30 CPUs, permitting full channel scaling across multiple chassis slots. This hardware layout permits dense analog I/O density scaling profiles without shifting the timing margins of neighboring Profinet or EtherNet/IP deterministic networks connected to the controller.

Frequently Asked Questions

Q: Does the IC693ALG391 module support hot-swap insertion or extraction while the backplane bus is powered?

A: No. The internal logic lacks isolation components required for hot-swapping. Power to the PLC chassis and field supply links must be completely isolated before extracting or inserting the hardware to prevent electrical damage to the backplane pin assembly.

Q: How does the module handle output signal states if the PLC drops into a Stop mode or communication ceases?

A: When backplane communication halts or a CPU fault triggers, the analog output channels automatically default to the lowest bounds of their calibrated range, enforcing a 0 mA current state or a 0 VDC voltage state to verify safe shutdown operations.

Field Installation Guidelines

• Mount the module securely within any available open slot of a 5-slot or 10-slot Series 90-30 baseplate chassis, confirming that the mechanical top latch snaps completely over the structural frame.
• Attach all external analog signal links to the removable front-facing terminal connector block using shielded twisted-pair instrumentation cables.
• Ground the outer metallic cable shield mesh exclusively at the central panel earth busbar, ensuring the shield remains ungrounded at the field actuator side to eliminate common-mode ground loop current noise.
• Route all low-level analog signal paths through separate dedicated wire duct runs completely segregated from heavy 415 VAC motor control lines or active inductive switching traces.
