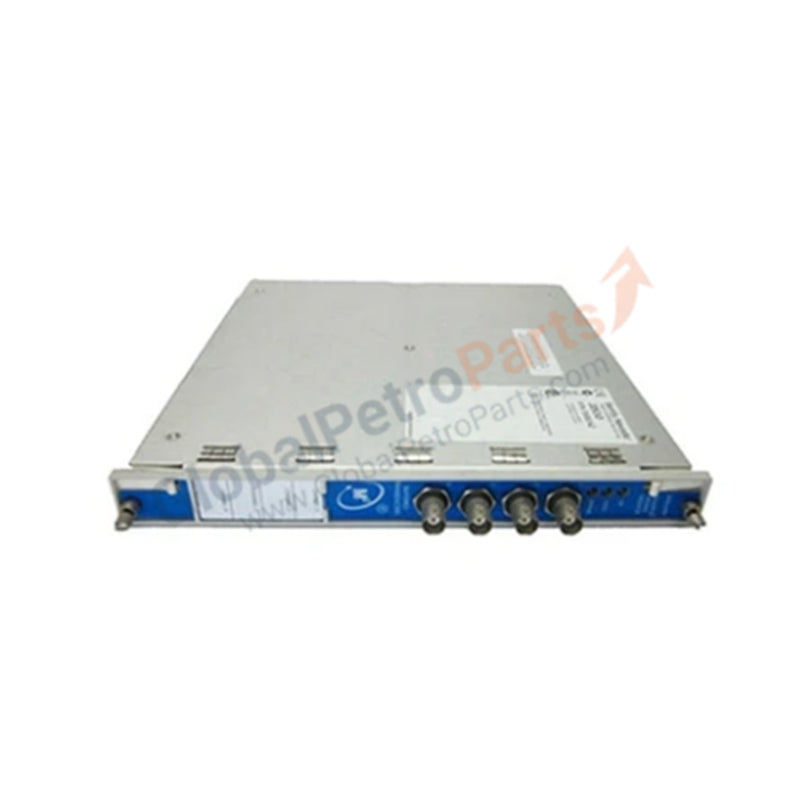

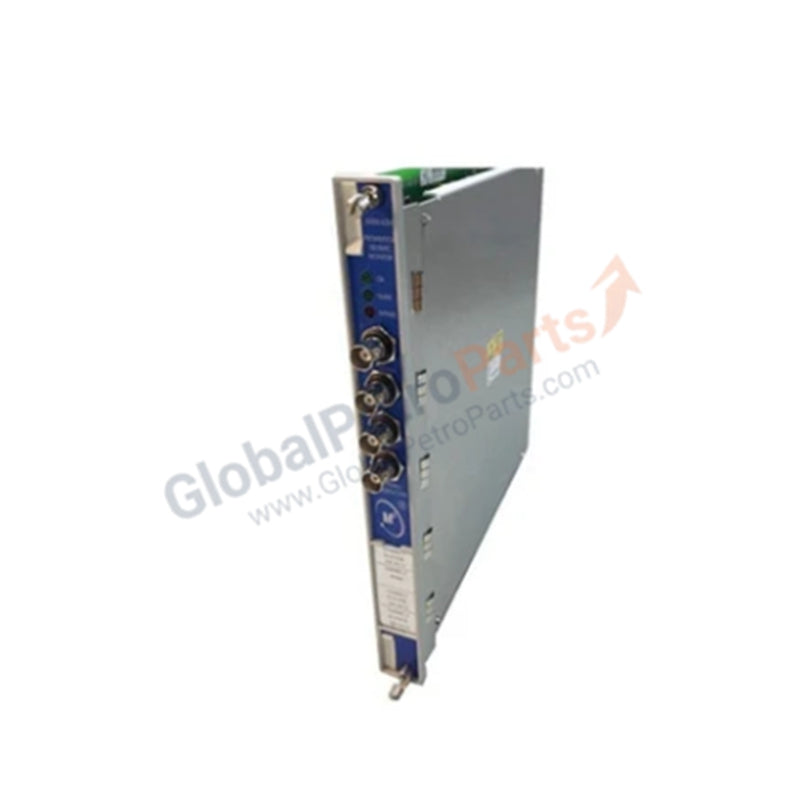

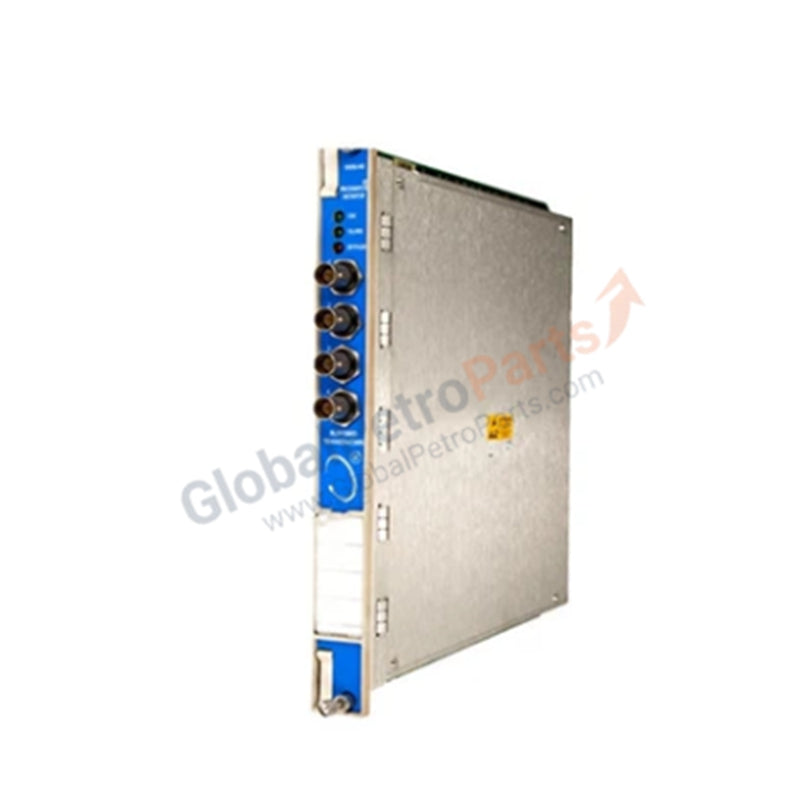

Bently Nevada 140072-04 3500/45 Industrial Position Display Module

Overview

The 140072-04 Bently Nevada 3500/45 is a high-precision Display Position Module designed for monitoring shaft positions in rotating machinery. It provides clear analog or digital outputs from proximity probe inputs and is engineered for reliable operation in challenging industrial environments.

Key Features

• Four-Channel Monitoring: Supports up to four proximity probe inputs for simultaneous position tracking.

• Flexible Output Options: Provides analog (4–20 mA) or digital relay outputs for system integration.

• Wide Power Range: Operates from 85–265 VAC, 47–63 Hz for versatile deployment.

• Robust Environmental Tolerance: Designed to function under -40°C to +85°C and 10–95% non-condensing humidity.

• Industrial Rack Compatibility: Slim profile fits seamlessly into 3500/45 Series racks.

Technical Specifications

• Manufacturer: Bently Nevada (Baker Hughes)

• Model: 3500/45 140072-04

• Part Number: 140072-04

• Product Type: Display Position Module

• Channels: 4-channel monitoring (typical)

• Input: Proximity probes

• Output: Analog (4–20 mA) or Digital (Relay)

• Power Supply: 85–265 VAC, 47–63 Hz

• Operating Temperature: -40°C to +85°C

• Humidity: 10%–95%, non-condensing

• Series: 3500/45

Applications

• Shaft position display and monitoring for turbines, compressors, and pumps

• Integration with 3500/45 Series rack-mounted modules

• Industrial equipment requiring high-precision position tracking

FAQ

Q: Can the 140072-04 module provide both analog and digital outputs?
A: Yes, it supports 4–20 mA analog outputs or relay-based digital outputs.

Q: Is it suitable for extreme temperature conditions?
A: Yes, it operates reliably from -40°C to +85°C.

Q: How many probes can it monitor simultaneously?
A: It typically supports four proximity probe channels.
