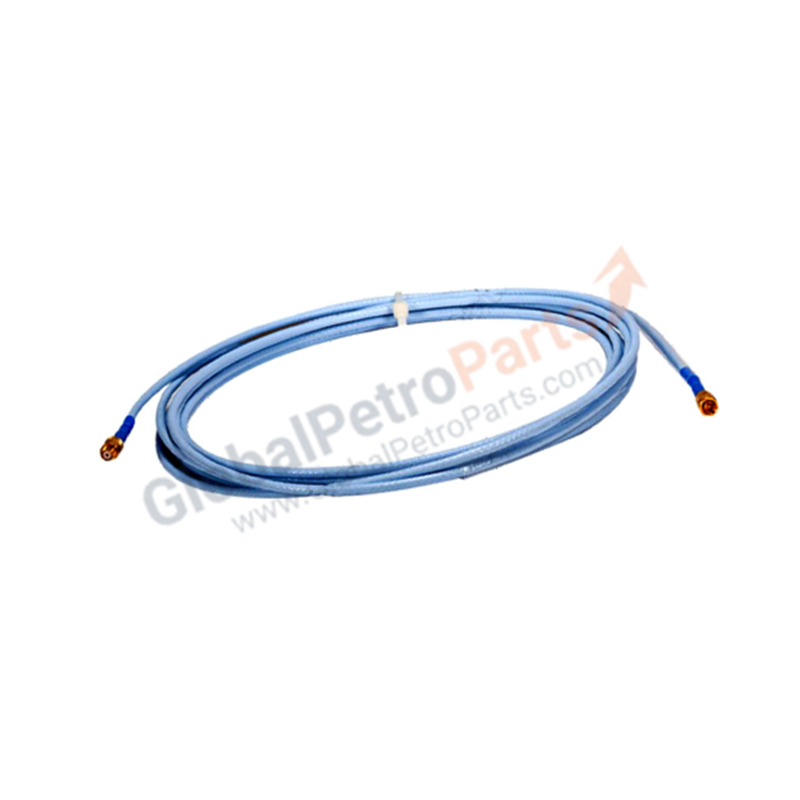

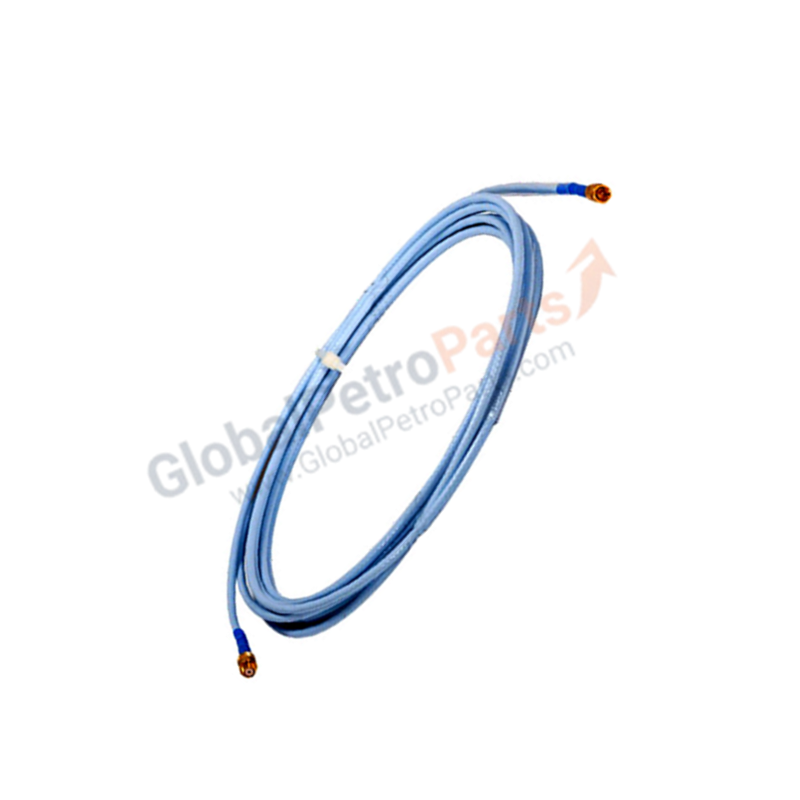

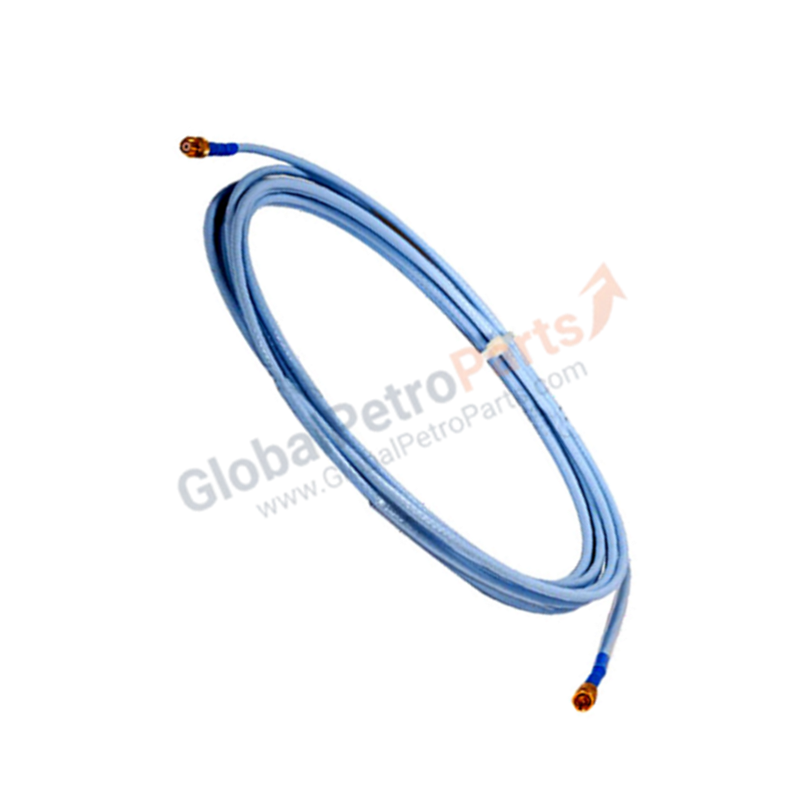

Bently Nevada 330130-045-01-00 3300 XL Extension Cable

Configured for signal transmission between eddy-current transducers and monitoring instrumentation in machinery protection systems, the Bently Nevada 330130-045-01-00 (330130 Extension Cable) provides direct physical signal path continuity for proximity measurement chains.

Hardware Specifications

Eddy-Current Probe Scaling and Signal Integrity

The 330130 extension cable maintains the characteristic impedance required for the 3300 XL proximity transducer system. Proper system operation relies on gap voltage validation, with target values typically centered at -10 VDC within the linear operating range. Deviations in cable length or impedance mismatch directly affect the accuracy of rotor dynamics measurements. The design utilizes high-frequency shielding to provide cross-talk suppression in industrial environments, preventing external electromagnetic interference from introducing noise into the transducer signal path.

Frequently Asked Questions

Q: Can the cable length be adjusted during field installation?

A: No. The electrical capacitance and impedance are factory-tuned to the specific length. Trimming or extending the cable will alter system-level sensitivity and require re-calibration of the monitoring hardware.

Q: How should the armored section be terminated?

A: The armor provides mechanical protection. Ensure the armor is grounded per local electrical codes at the entry point of the junction box if required to maintain effective electromagnetic shielding.

Field Installation Guidelines

1. Ensure all system power is isolated before disconnecting or connecting transducer components to prevent electrical transients.
2. Route the extension cable through dedicated conduit or cable trays to prevent mechanical damage. Ensure the minimum bend radius is not exceeded to avoid stressing the internal conductor.
3. Clean all connector pins with an appropriate contact cleaner if exposure to oils or moisture occurred during installation.
4. Finger-tighten all coaxial connectors. Use of tools to overtighten may damage the connector threads or internal pin alignment, resulting in intermittent signals.
5. Verify the total system length (Probe + Extension Cable) matches the configuration programmed in the monitor or Proximitor module.
