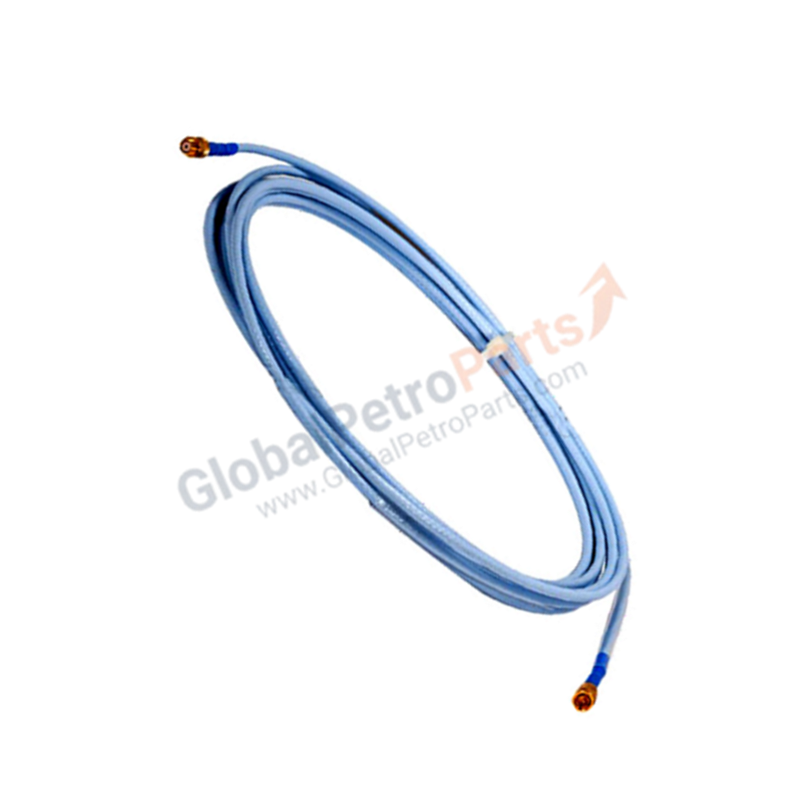

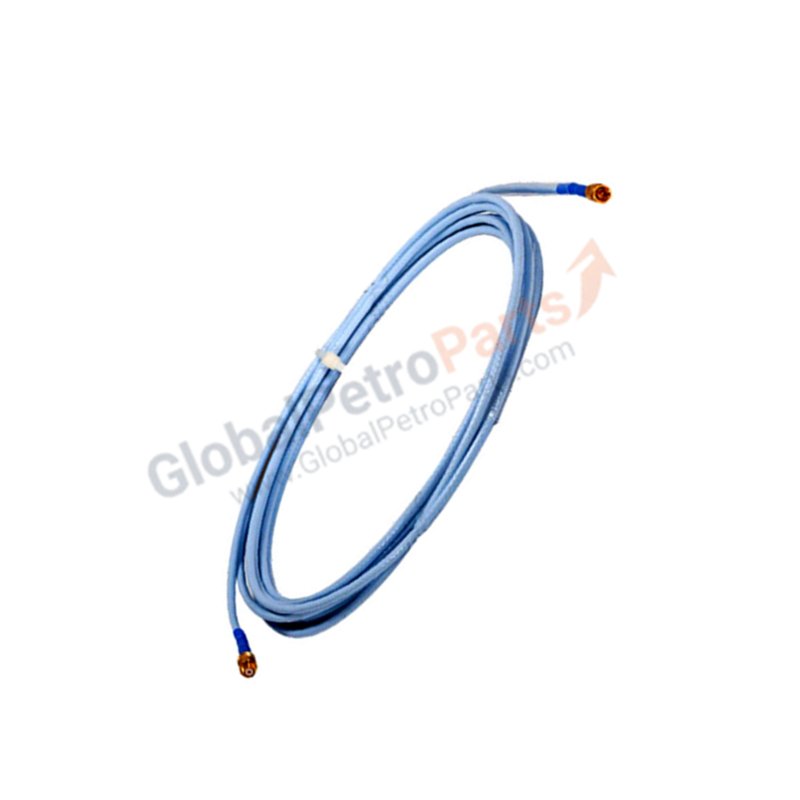

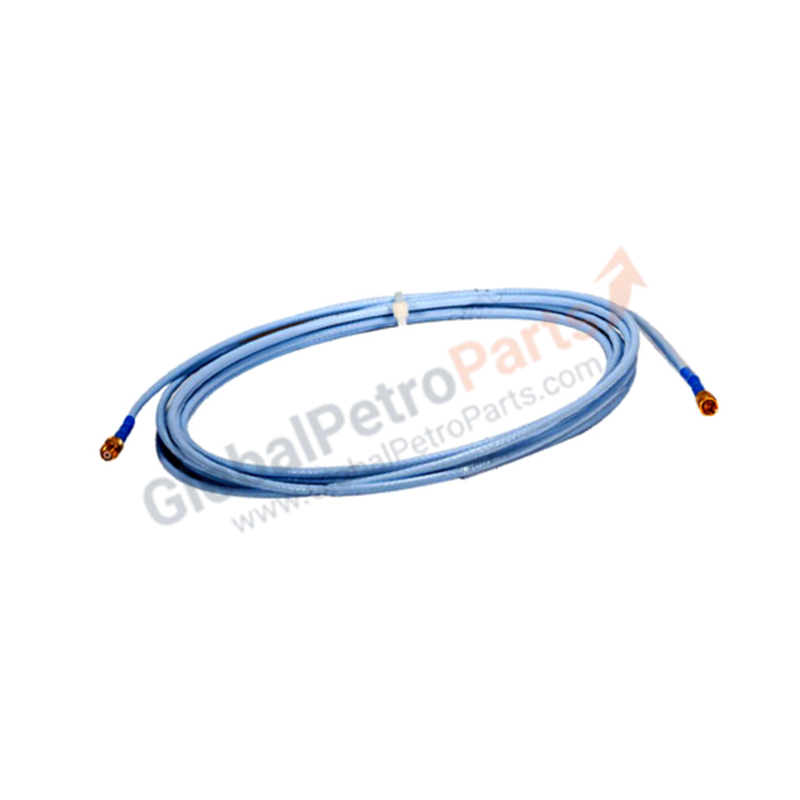

Bently Nevada 330130-085-02-CN 3300 XL Standard Extension Cable

The Bently Nevada 330130-085-02-CN, also cataloged as the 330130 Standard Extension Cable, operates as a dedicated hardware component for signal path extension between eddy-current probes and Proximitor sensors within machine monitoring systems. This assembly incorporates physical connector protectors to maintain the electrical impedance and signal fidelity required for high-frequency vibration measurement.

Suffix Breakdown & Model Matrix

Hardware Specifications

Eddy-Current Probe Scaling and Gap Voltage Validation

Maintaining the integrity of the 3300 XL measurement loop requires precise calibration. The extension cable must be verified to ensure a nominal scale factor of 7.87 V/mm (200 mV/mil). During site commissioning, gap voltage validation is performed at the Proximitor sensor output; technicians should verify a center-gap reading of -10 VDC. Deviations from this voltage during operation often indicate probe damage, degraded cabling, or improper target material contact. Proper cross-talk suppression is achieved by ensuring that signal cables remain within dedicated, grounded conduit, effectively isolated from high-frequency noise sources found in industrial environments.

Frequently Asked Questions

Q: Can the 330130 cable be repaired if the connector protector or cable jacket is damaged?

A: No. Field repair of the coaxial cable or connectors alters the characteristic impedance and capacitance. The entire extension cable must be replaced to ensure system accuracy and compliance with hazardous area certifications.

Q: Is the 02 connector protector option compatible with all 3300 XL probes?

A: The connector protectors are compatible with standard 3300 XL series coaxial connectors. They provide mechanical protection and moisture mitigation for the connection point but do not alter the electrical signal path.

Field Installation Guidelines

• Minimum Bend Radius: Do not exceed a static bend radius of 25.4 mm (1.0 inch). Tight bends cause internal coaxial deformation, shifting the impedance and inducing measurement errors.
• Shield Grounding: The cable shield must be continuous through the connectors. Ensure the shield is grounded at the Proximitor terminal block to eliminate ground loops.
• Connector Mating: Inspect threads for oxidation or debris prior to mating. Hand-tighten until the connector seating is secure to ensure low-resistance electrical contact.
• Hazardous Area Requirements: Installation must comply with all regional safety standards defined by the NEPSI and ATEX/IECEx certifications. Ensure that the equipment is installed within an appropriate flameproof or intrinsically safe enclosure as per local code.
