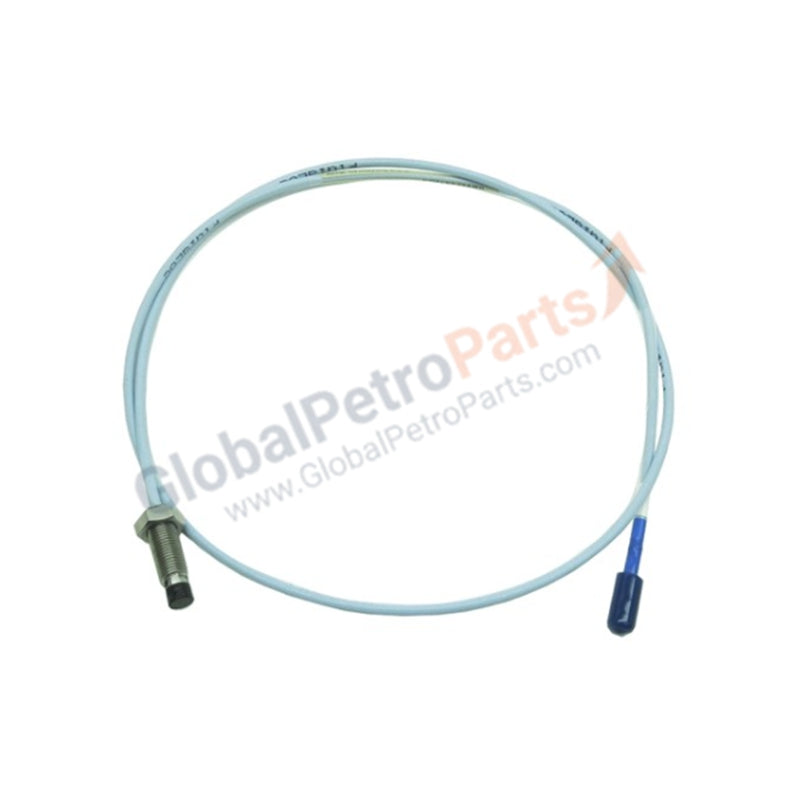

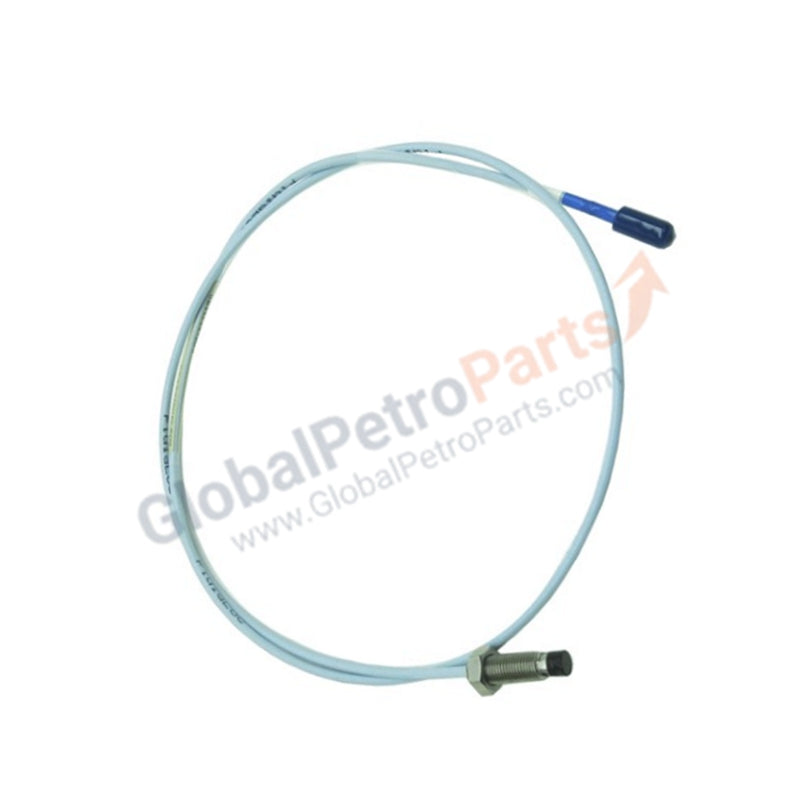

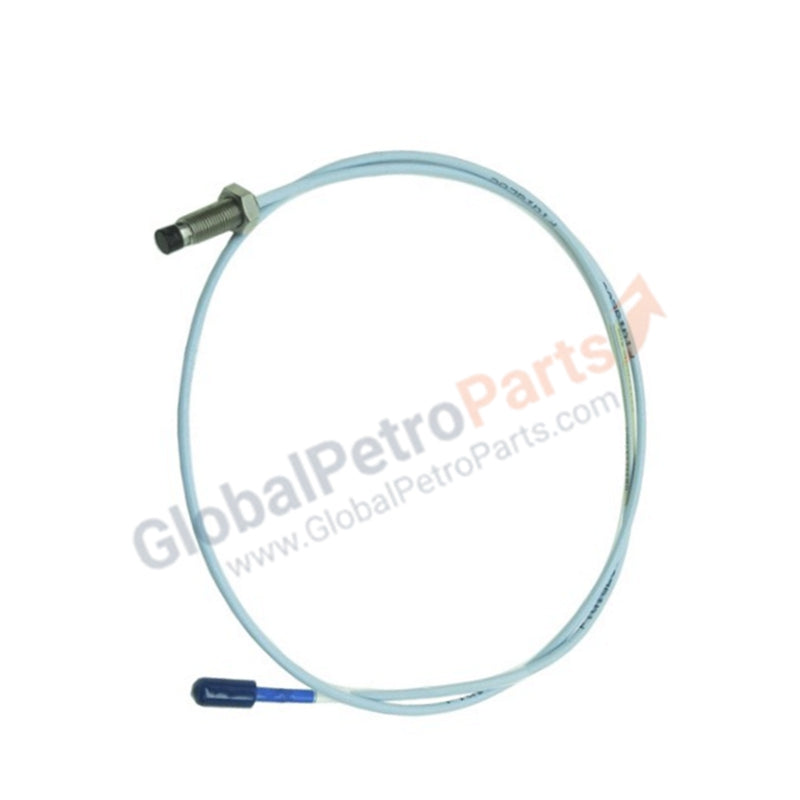

Bently Nevada 330709-000-060-10-02-00 3300 XL 11mm Proximity Transducer System

Configured for non-contact displacement measurement in TSI platforms, the Bently Nevada 330709-000-060-10-02-00 (330709 3300 XL 11mm Proximity Transducer System) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

• 330709: 3300 XL 11 mm Probe base model.
• 000: 0 mm unthreaded length option.
• 060: 60 mm overall case length.
• 10: 1.0 meter total system length (requires matching 1.0 m Proximitor sensor).
• 02: Miniature coaxial ClickLoc connector with standard cable.
• 00: No agency approval required.

Hardware Specifications

Mechanical Monitoring and TSI Characteristics

The 330709 transducer relies on precise eddy-current probe scaling to ensure linear displacement output. During system integration, gap voltage validation is required to calibrate the -10 VDC target, ensuring the output rests within the linear range of the Proximitor sensor. Proper installation is necessary to mitigate rotor dynamics influences and ensure cross-talk suppression by maintaining specified physical clearances from adjacent probes and conductive mounting structures.

Frequently Asked Questions

Q: Can this 1.0 m system length be extended using standard coaxial cables?

A: No, the system length is calibrated as a complete set (Probe, Extension Cable, and Proximitor). Modifying the total cable length alters the impedance and affects the signal linearity and frequency response.

Q: Is the ClickLoc connector compatible with older 3300 series probe connectors?

A: No, the ClickLoc connector system is specific to the 3300 XL series. It utilizes a locking mechanism that provides superior mechanical security against vibration compared to older screw-style connectors.

Field Installation Guidelines

• Mounting: Ensure the probe is mounted perpendicular to the target surface. Utilize the M16 x 1.5 threads for secure positioning, observing torque limits to prevent casing deformation.
• Cable Integrity: Maintain the cable bend radius specification to prevent damage to the internal coaxial structure, which can cause erratic gap voltage readings.
• Grounding: The probe casing must be electrically connected to the machine frame to ensure proper shielding against electromagnetic interference.
• Clearance: Maintain a minimum clearance from surrounding structures to avoid signal interference. Verify the gap voltage at the Proximitor output using a digital voltmeter during the installation phase.
