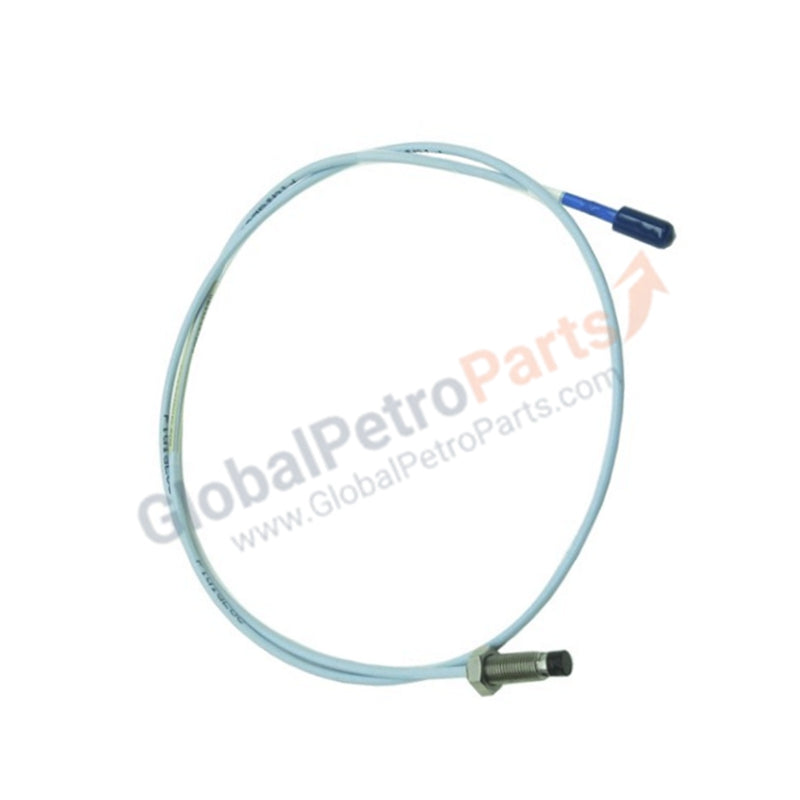

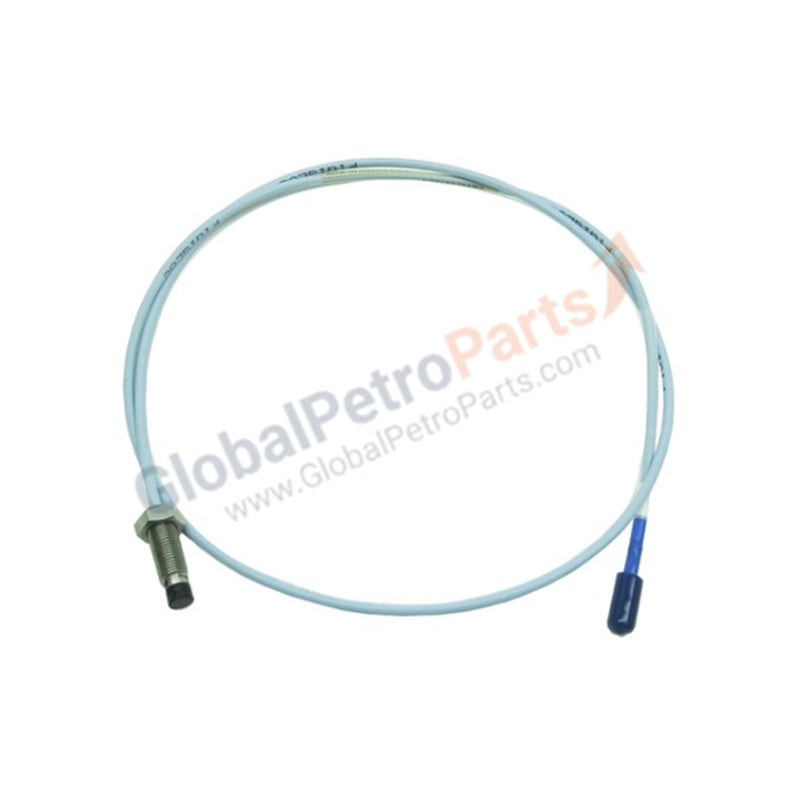

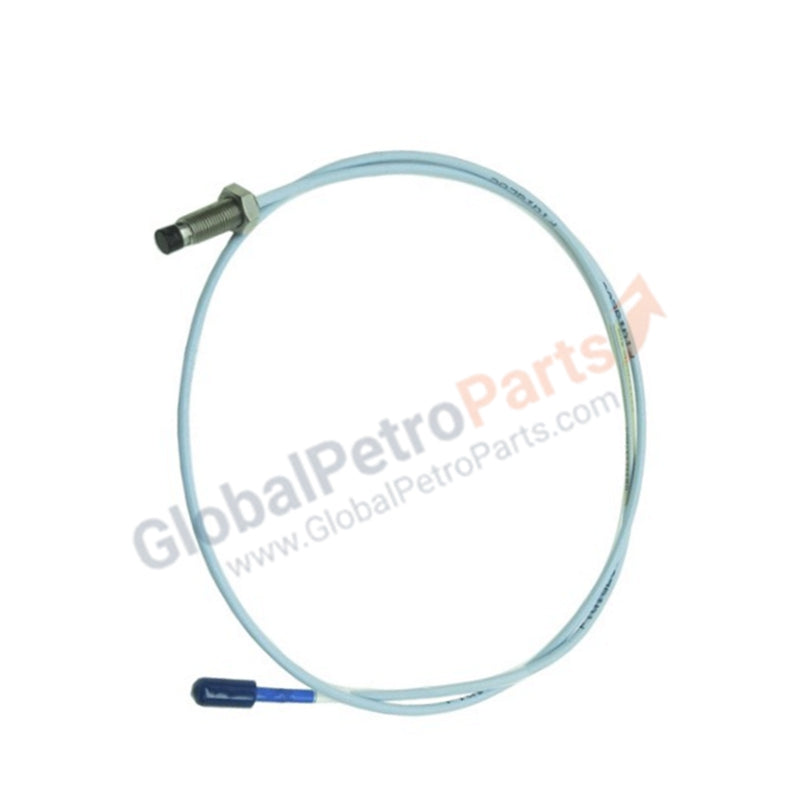

Bently Nevada 330709-000-060-50-02-05 11 mm Proximity Probe

Configured for non-contact displacement measurement in TSI platforms, the Bently Nevada 330709-000-060-50-02-05 (330709 Proximity Probe) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

• 330709: 11 mm Proximity Probe base model with M16 x 1.5 thread.
• 000: Unthreaded length option (fully threaded body).
• 060: 60 mm total case length.
• 50: 5.0 m integral coaxial cable.
• 02: ClickLoc connector type.
• 05: Hazardous area approval configuration.

Hardware Specifications

Mechanical Monitoring and TSI Characteristics

The 330709 probe utilizes eddy-current probe scaling to convert shaft gap variation into a linear voltage signal. During system commissioning, gap voltage validation is required to reach the -10 VDC target, confirming the probe is within the linear response band of the associated Proximitor. To maintain measurement precision in complex rotor dynamics, ensure the probe tip is installed at an exact 90 deg orientation to the target. Strict adherence to cross-talk suppression protocols is required when installing multiple sensors in close proximity to prevent interference from overlapping electromagnetic fields.

Frequently Asked Questions

Q: Can this probe be used in areas requiring intrinsic safety?

A: Yes, the "-05" suffix indicates it is configured for hazardous area approvals. Verify the specific certification documentation for the intended regional compliance (e.g., ATEX, IECEx) before installation.

Q: Is the 21.1 Nm torque value mandatory for installation? A: 21.1 Nm is the recommended optimal torque for standard mounting. The 63.3 N*m value represents the maximum limit before potential casing deformation occurs.

Field Installation Guidelines

• Mounting: Utilize the M16 x 1.5 threaded body for adjustment. Ensure the probe is locked in place using the provided mounting bracket and jam nut to maintain the calibrated gap.
• Connector Handling: Tighten the ClickLoc connector assembly to a maximum of 0.565 N*m. Do not use pliers or high-torque tools on the connector housing.
• Grounding: Ensure a high-integrity electrical connection between the probe case and the machine chassis to maintain a consistent ground reference and signal shielding.
• Clearance: Maintain a minimum clearance from any radial obstruction to prevent erroneous signals caused by surrounding metallic surfaces (edge effects).
