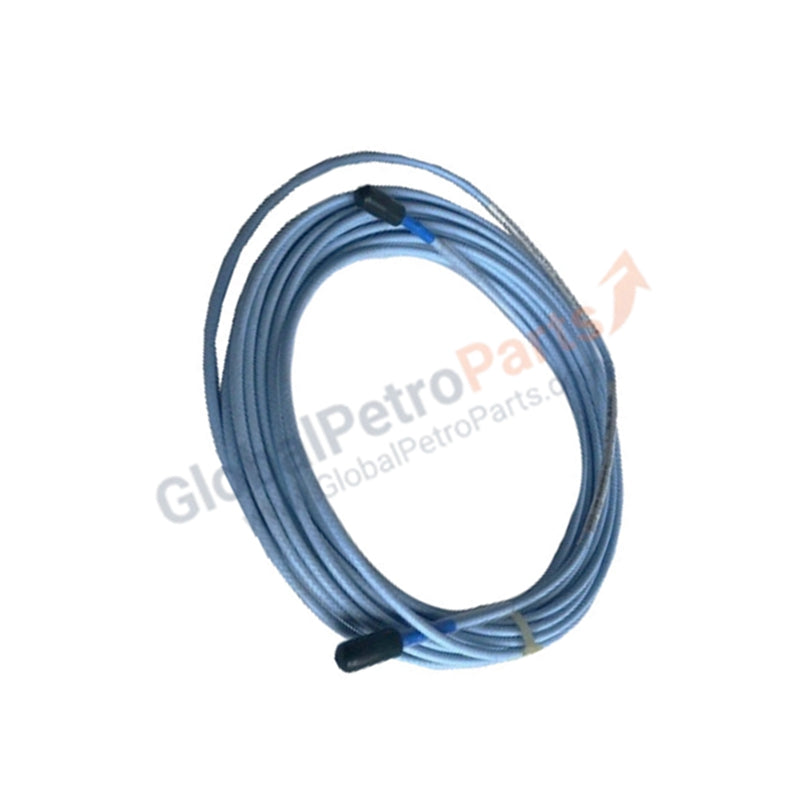

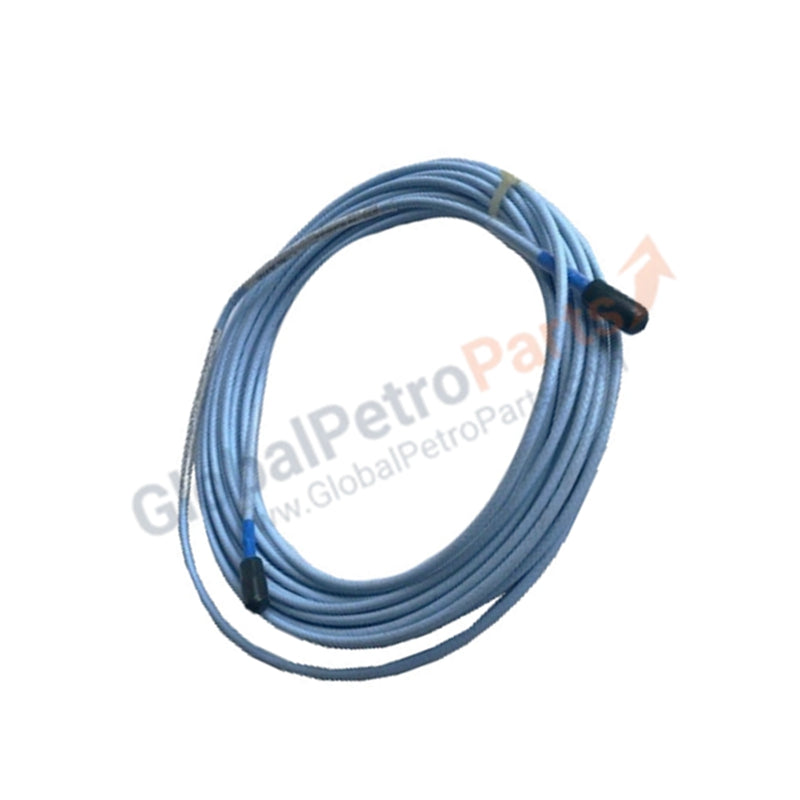

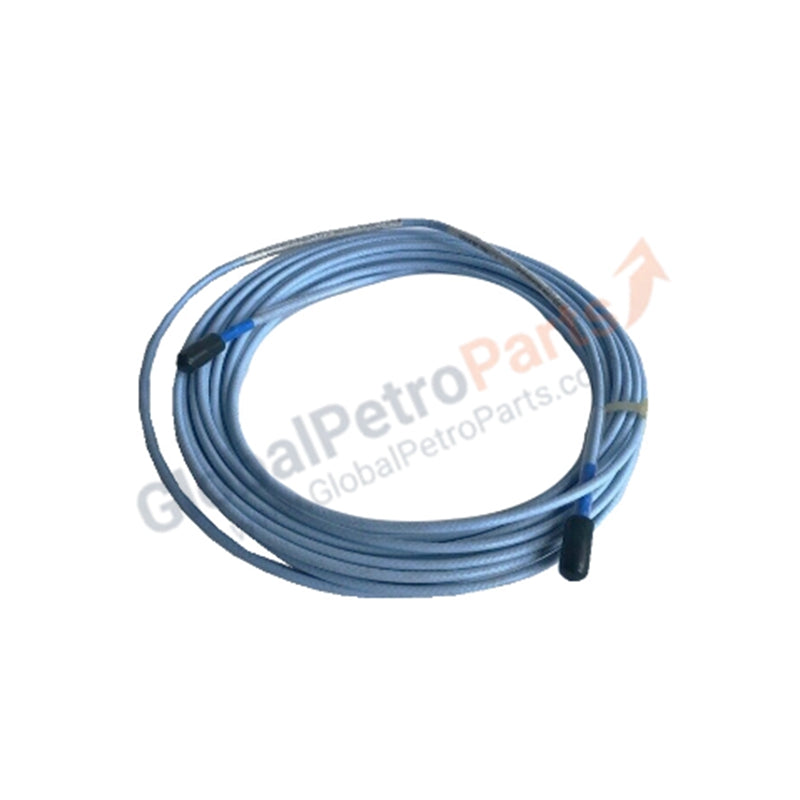

Bently Nevada 330730-040-00-00 3300 XL 11 mm Extension Cable

The Bently Nevada 330730-040-00-00, also cataloged as the 330730 Extension Cable, operates as a dedicated hardware component for signal transmission between proximity probes and Proximitor sensors within TSI (Turbine Supervisory Instrumentation) networks.

Suffix Breakdown & Model Matrix

• 330730: 3300 XL 11 mm Extension Cable base model.
• 040: 4.0 meters (13.1 feet) cable length.
• 00: Standard cable configuration.
• 00: No agency approval required.

Hardware Specifications

Mechanical Monitoring and TSI Characteristics

This extension cable is a component of the 3300 XL transducer system, which relies on consistent eddy-current probe scaling to maintain signal linearity. The cable assembly maintains the impedance requirements necessary for correct gap voltage validation, targeting -10 VDC at the Proximitor output for mid-range operation. Proper installation practices, such as cross-talk suppression by routing cables away from high-power electromagnetic sources, are required to preserve signal integrity. The cable acts as an extension of the sensing circuit, where any mechanical fatigue or shield damage can negatively impact rotor dynamics data acquisition.

Frequently Asked Questions

Q: Can I shorten this extension cable to fit my specific installation distance?

A: No. The transducer system is calibrated as a matched set (Probe, Extension Cable, and Proximitor). Altering the length of the extension cable changes the electrical impedance, which degrades the frequency response and accuracy of the measurement.

Q: Is this extension cable compatible with older 3300 series probes?

A: No. The 330730 extension cable utilizes the ClickLoc connector system designed specifically for the 3300 XL series and is not compatible with standard threaded connectors from legacy Bently Nevada product lines.

Field Installation Guidelines

• Cable Routing: Maintain a minimum bend radius of 25.4 mm (1.0 in) to prevent damage to the internal coaxial structure and shielding.
• Connector Security: Ensure the ClickLoc connectors are fully engaged and locked. Do not use excessive torque (exceeding 0.565 N*m) on the connector coupling.
• Shielding: The cable shield must maintain continuity from the probe to the Proximitor to ensure effective electromagnetic interference rejection.
• Environmental Protection: While the cable is designed for industrial use, ensure the connector junctions are protected from fluid ingress or environments that exceed the chemical resistance of the FEP jacket.
• Grounding: Verify that the system maintains a single-point ground reference at the monitoring instrumentation panel to prevent ground loops.
