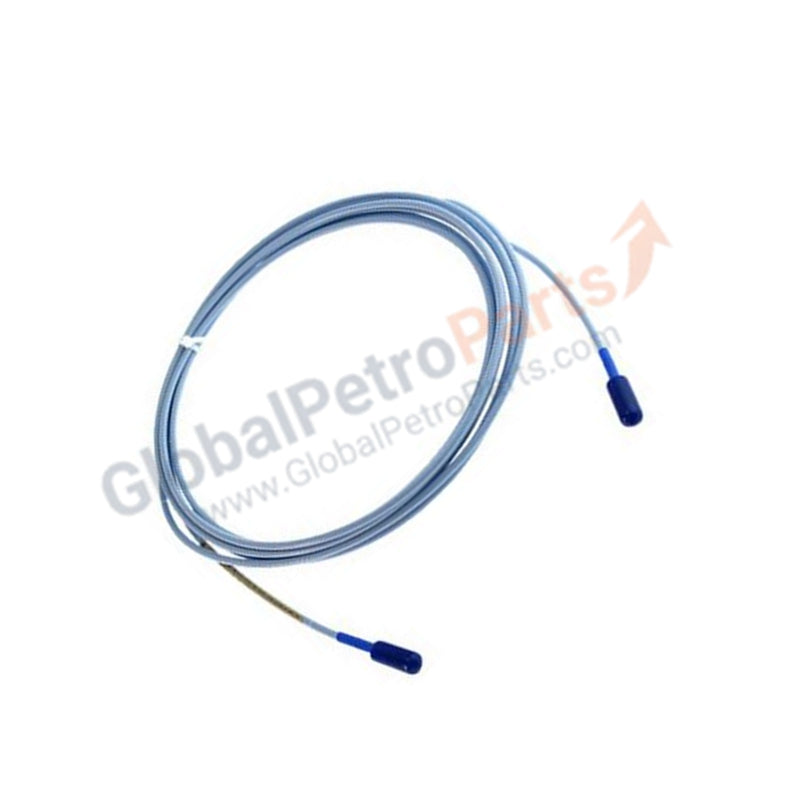

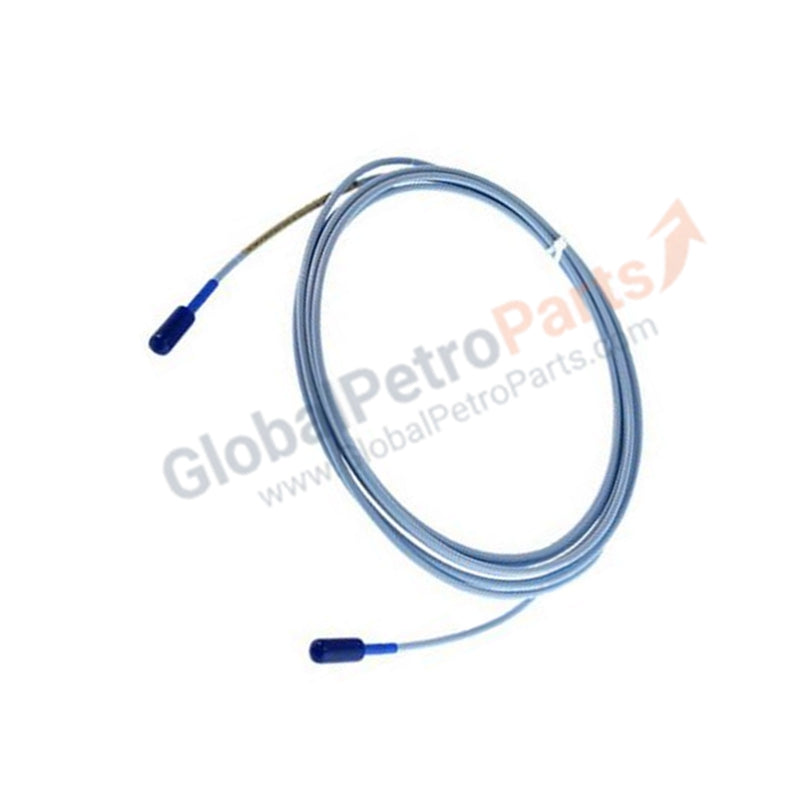

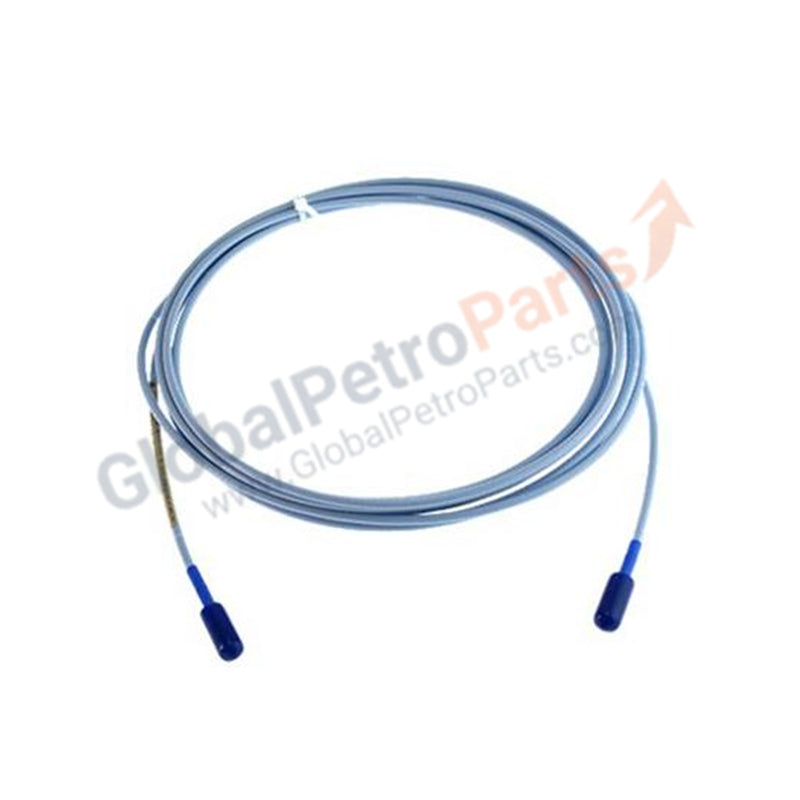

BENTLY NEVADA 330876-02-10-00-00 Proximity Probe

The BENTLY NEVADA 330876-02-10-00-00, also cataloged as the 3300 XL 50 mm Proximity Probe, operates as a dedicated hardware component for non-contacting vibration and displacement measurement within industrial rotating machinery monitoring platforms. This transducer system functions by emitting a high-frequency radio signal to detect the proximity of a target material, providing essential raw voltage output for rotor position analysis.

Hardware Specifications

Mechanical Monitoring & TSI Integration

The 330876-02-10-00-00 utilizes eddy-current probe scaling to convert target distance into a proportional voltage signal. Precise operation requires gap voltage validation, with a standard operating target of -10 VDC within the linear range of the probe. Proper rotor dynamics analysis depends on the installation of the probe to ensure the target material remains within the linear detection zone. Cross-talk suppression must be maintained during installation by ensuring sufficient physical spacing between adjacent probes to prevent frequency interference in the high-frequency carrier signal.

Frequently Asked Questions

Q: What is the primary requirement for maintaining signal linearity?

A: The probe gap must be adjusted to the calibrated linear range, typically centering at -10 VDC. Deviations from this voltage indicate the target is outside the calibrated displacement range, potentially leading to signal clipping.

Q: Are there specific installation requirements for the extension cable?

A: The extension cable must be shielded and kept away from high-voltage AC lines to prevent EMI. Ensure all connectors are tightened to the specified torque to maintain impedance continuity and prevent signal noise.

Field Installation Guidelines

1. Ensure the mounting bracket is rigid to prevent resonance-induced measurement errors.
2. Verify that the target surface is free of excessive runout, burrs, or surface contaminants that may interfere with eddy-current generation.
3. Utilize a multimeter to monitor gap voltage during installation; rotate the probe until the output stabilizes at the required -10 VDC setpoint.
4. Secure the extension cable using cable ties to minimize mechanical strain on the probe connector interface.
5. Ground the probe shielding only at the monitor terminal block to prevent ground loops.
