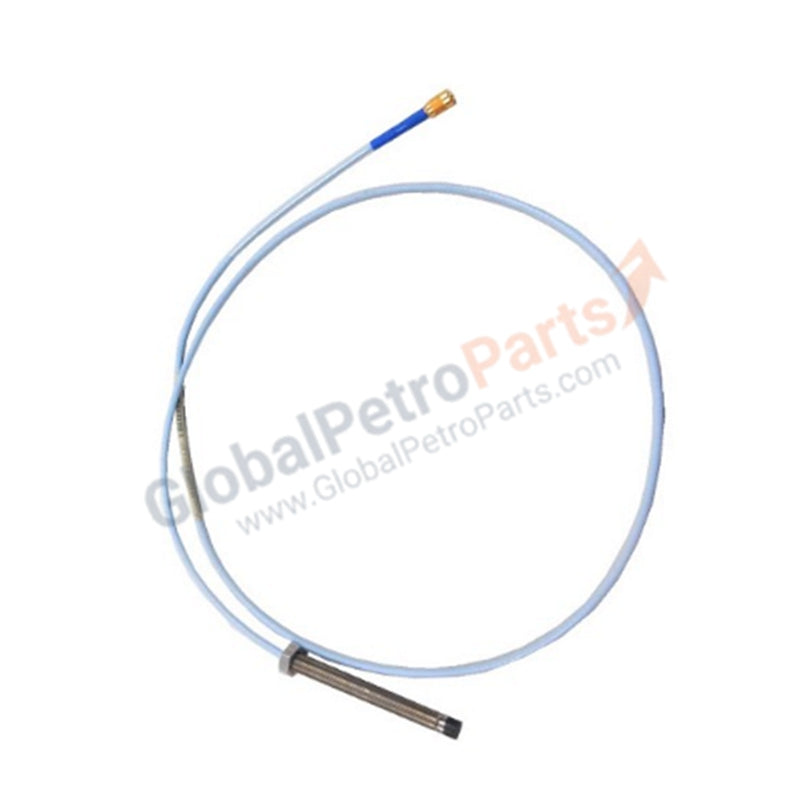

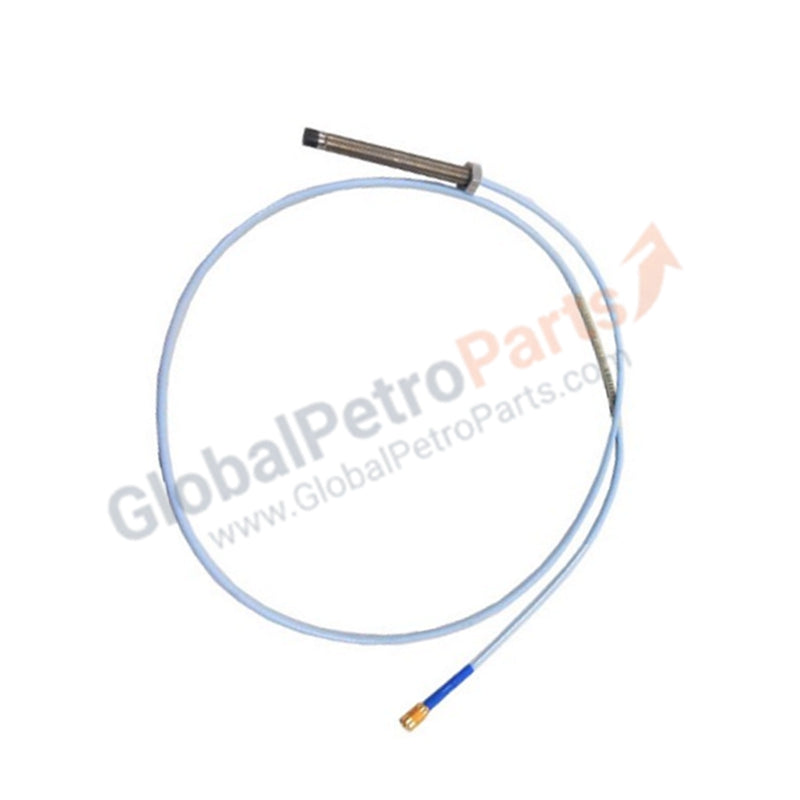

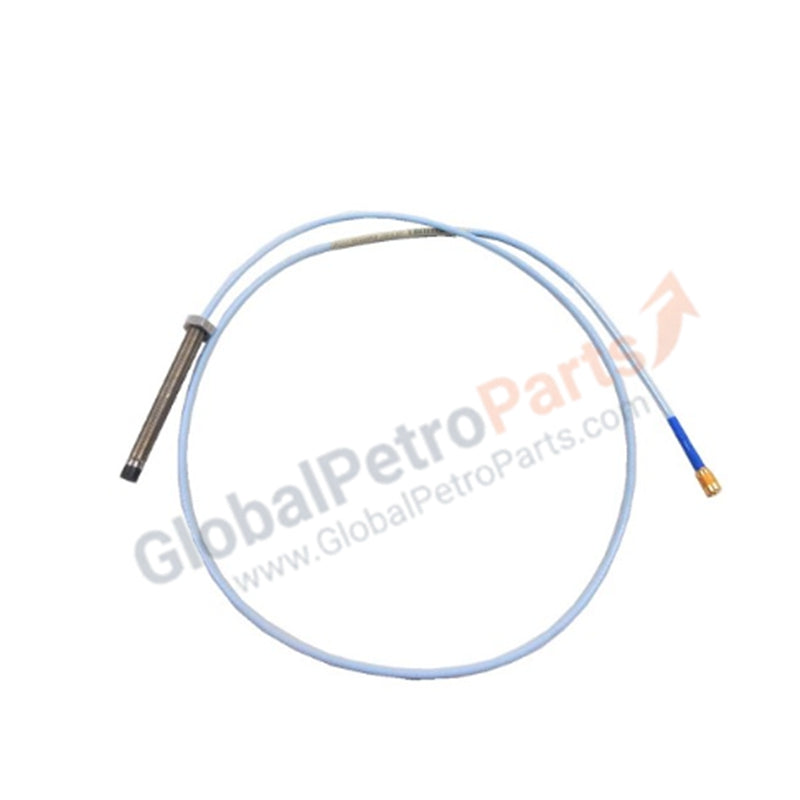

Bently Nevada 330901-00-40-10-02-05 3300 NSv Proximity Probes

The Bently Nevada 330901-00-40-10-02-05, also cataloged as the 330901 3300 NSv Proximity Probe, operates as a dedicated hardware component for non-contacting displacement measurement within machine protection and condition monitoring systems.

Hardware Specifications

Mechanical Monitoring & TSI Integration

The 3300 NSv system relies on precise eddy-current probe scaling to convert target distance into linear voltage output. The probe tip, constructed of polyphenylene sulfide, forms an integral part of the oscillating circuit when energized by the Proximitor sensor. During installation, operators must perform gap voltage validation, targeting a nominal -10 VDC center-gap reading to ensure the linear range of the probe is centered within the expected shaft displacement. Maintaining the integrity of the 75 ohm coaxial cable path is necessary for accurate rotor dynamics data acquisition, as signal degradation or impedance mismatches can manifest as false runout or erratic orbit plots in the monitoring software.

Frequently Asked Questions

Q: Can the 330901 probe be utilized in high-pressure applications without prior testing?

A: While the probe features a Viton O-ring for differential pressure sealing between the tip and case, these units are not pressure-tested at the factory. Contact Bently Nevada engineering if a specific application requires certified pressure seal validation.

Q: What is the significance of the ClickLoc connector during installation?

A: The ClickLoc miniature coaxial connector is designed to provide a secure physical connection that maintains 75 ohm impedance. Ensure the connector is fully seated and free of contaminants to prevent signal attenuation or noise injection into the machine monitoring channel.

Field Installation Guidelines

• Mounting Stability: Ensure the probe mounting bracket is rigid. Any vibration of the probe holder itself relative to the observed shaft will be indistinguishable from actual rotor displacement.
• Grounding and Shielding: The coaxial cable shield must be continuous back to the monitor or proximitor housing. Avoid pinching or crushing the 75 ohm FEP-insulated cable during routing, as deformation of the cable geometry alters the characteristic impedance and calibration accuracy.
• Gap Adjustment: Prior to locking the probe in place, rotate the probe housing to adjust the gap voltage. Verify the output is at the specified -10 VDC nominal center point using a high-impedance digital multimeter.
• Cable Routing: Route cables through dedicated conduit to prevent electromagnetic interference (EMI) and avoid sharp bends that exceed the minimum bend radius of the coaxial cable.
