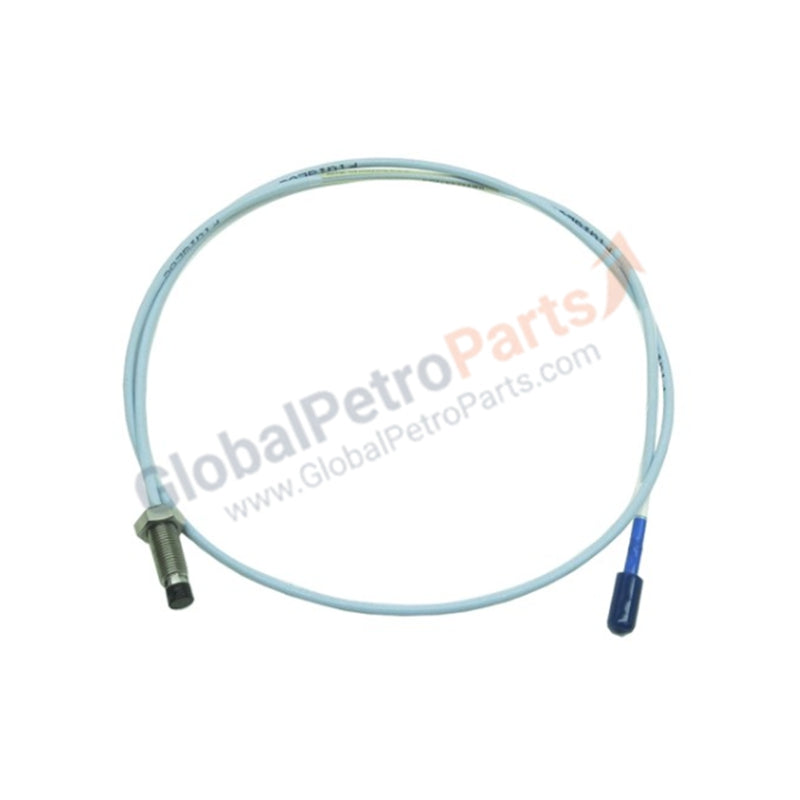

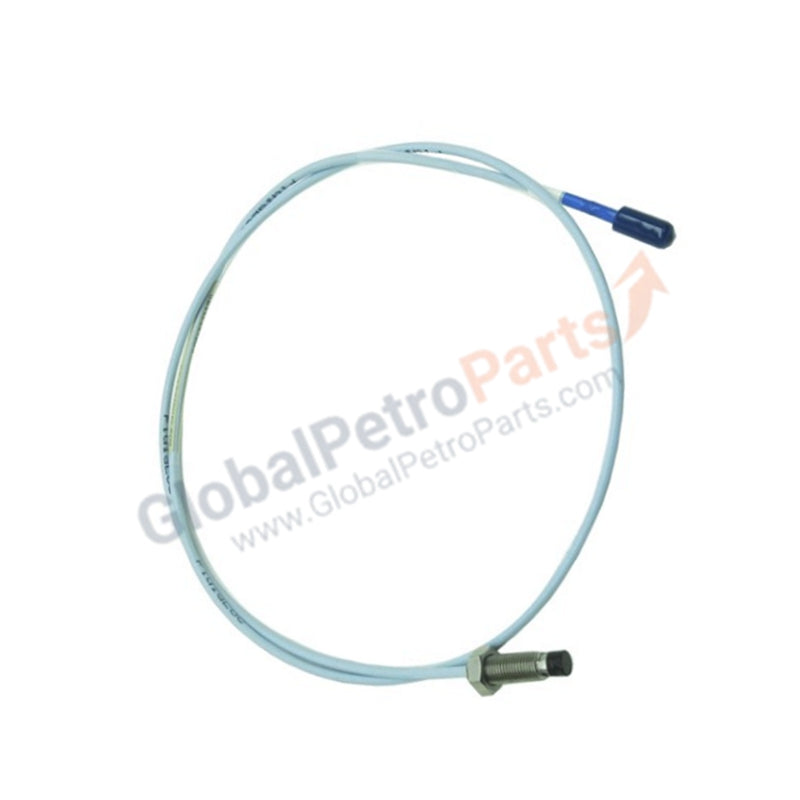

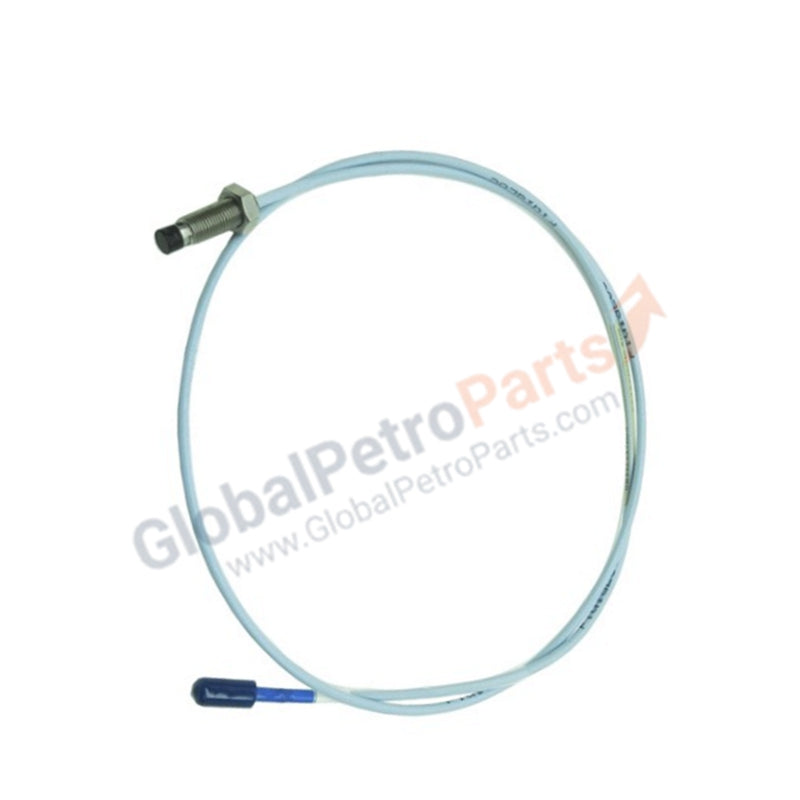

Bently Nevada 330904-08-15-10-02-05 3300 NSv Proximity Probe

Configured for non-contacting displacement measurement in industrial monitoring systems, the Bently Nevada 330904-08-15-10-02-05 (330904 Proximity Probe) provides direct physical signal transduction via eddy-current interaction.

Hardware Specifications

Mechanical Monitoring & TSI Characteristics

The 3300 NSv system relies on eddy-current probe scaling to convert machine shaft displacement into a linear voltage signal. For proper operation, the transducer must be energized by a compatible Proximitor sensor, which generates a high-frequency carrier signal. Technicians must perform gap voltage validation during installation, targeting a nominal -10 VDC reading to center the probe within its linear measurement range. Maintaining the integrity of the 75 ohm coaxial path is necessary to ensure accurate rotor dynamics analysis. To minimize cross-talk suppression interference in multi-channel installations, cable shielding must be properly bonded to the system common at the monitoring interface.

Frequently Asked Questions

Q: Does the probe utilize laser measurement technology as implied in the provided description?

A: No. The Bently Nevada 330904 series is an eddy-current displacement transducer, not a laser-based sensor. It operates by measuring impedance changes in an electromagnetic field caused by the proximity of a conductive shaft.

Q: What is the purpose of the stainless steel armor on the probe cable?

A: The armor provides mechanical protection against abrasion and physical impact in demanding industrial environments. When installing, care must be taken to respect the minimum bend radius of the armored assembly to avoid internal conductor fatigue.

Field Installation Guidelines

• Mounting Stability: The probe must be mounted in a rigid, non-resonant bracket. Any vibration of the mounting hardware itself will be detected as shaft displacement, resulting in false readings.
• Grounding and Shielding: Ensure the coaxial cable shield remains continuous from the probe tip to the monitor. Avoid grounding the shield at multiple points, as this can create ground loops and inject electrical noise.
• Gap Adjustment: Prior to locking the probe in place, rotate the housing to adjust the air gap. Monitor the Proximitor output with a high-impedance digital multimeter to verify the -10 VDC center-gap target.
• Cable Routing: Keep the coaxial cable away from high-power AC lines to prevent EMI injection. Secure the armored cable using appropriate clamps to prevent mechanical resonance or chafing against other machine components.
