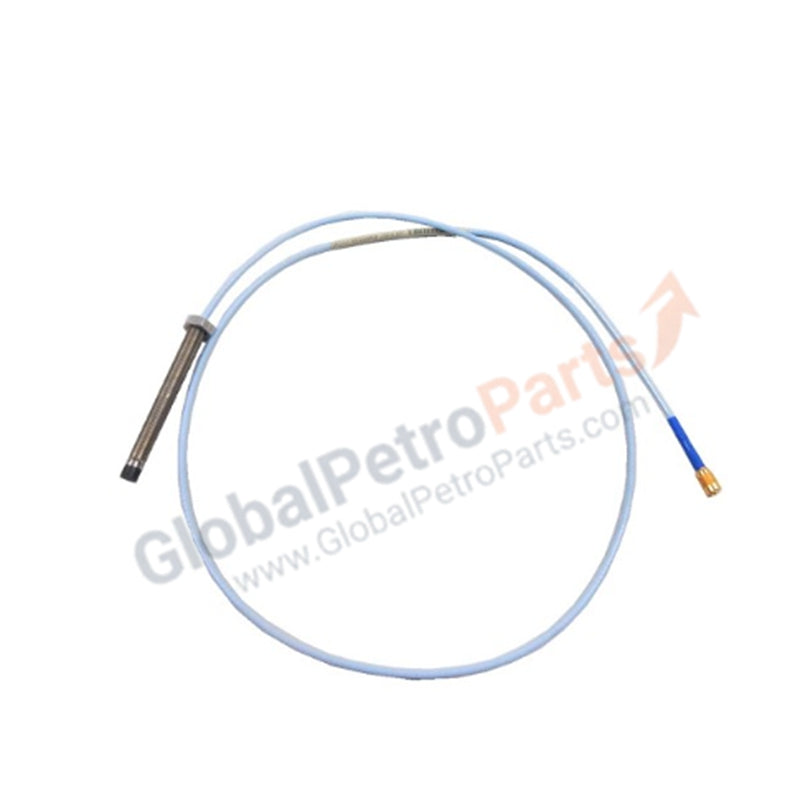

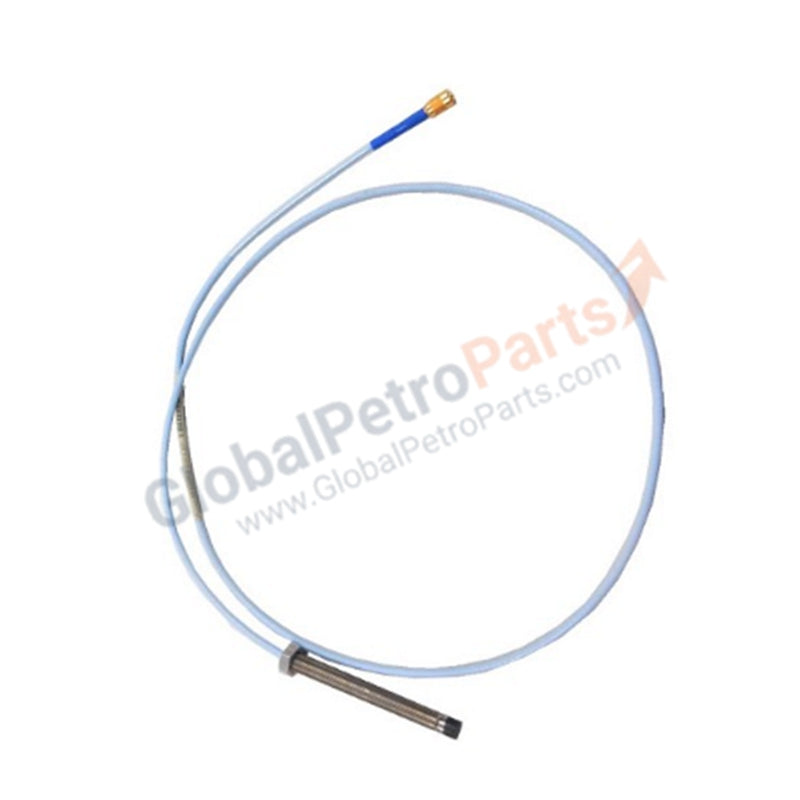

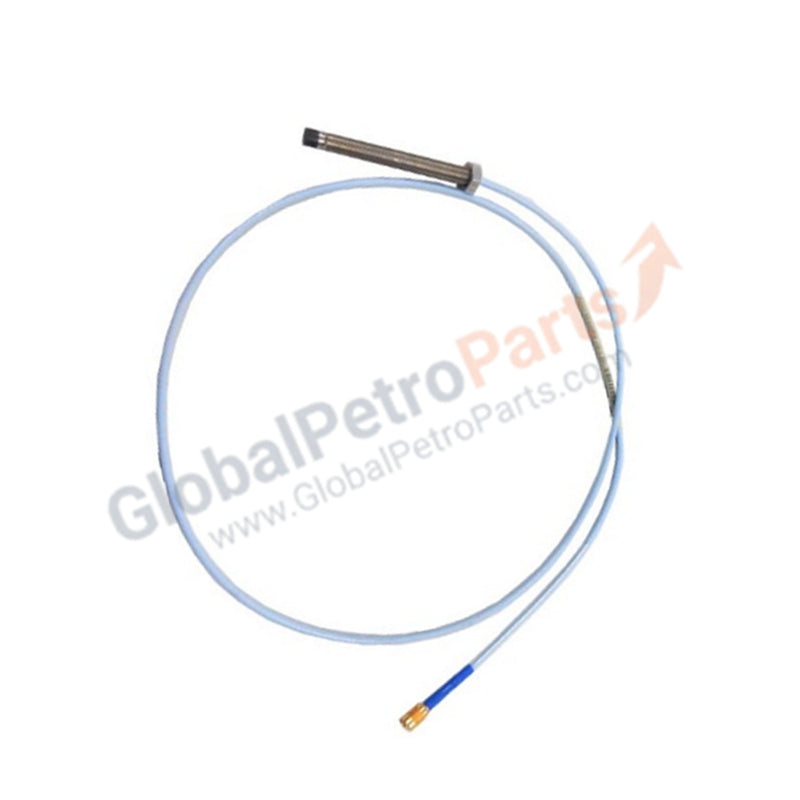

Bently Nevada 330905-00-07-10-02-00 3300 XL NSv Proximity Probe

Configured for non-contacting displacement measurement in industrial monitoring systems, the Bently Nevada 330905-00-07-10-02-00 (330905 Proximity Probe) provides direct physical signal transduction via eddy-current interaction.

Suffix Breakdown & Model Matrix

• 330905: Base Model (3300 XL NSv Proximity Probe, Metric)
• -00: Unthreaded Length (0 mm)
• -07: Overall Case Length (70 mm)
• -10: Total Length (1.0 meter)
• -02: Connector and Cable-Type (Miniature coaxial ClickLoc connector, standard cable)
• -00: Agency Approval (Not required)

Hardware Specifications

Mechanical Monitoring & TSI Characteristics

The 3300 NSv system relies on precise eddy-current probe scaling to convert target distance into a linear voltage output. For accurate rotor dynamics data acquisition, technicians must perform a gap voltage validation during commissioning, targeting a -10 VDC nominal center-gap reading. Maintaining the integrity of the 75 ohm coaxial signal path is necessary to ensure measurement fidelity. Cross-talk suppression should be managed in multi-channel installations by ensuring that coaxial cable shields are consistently bonded to the system common at the Proximitor interface, thereby preventing electromagnetic interference from influencing orbit data.

Frequently Asked Questions

Q: Can the 330905 sensor be used with non-standard cable lengths?

A: No. The 3300 XL system components are calibrated as a matched set (probe, extension cable, and Proximitor sensor). Modifying the total system length alters the impedance and capacitance of the signal path, which invalidates the calibration and results in inaccurate displacement measurements.

Q: How does the ClickLoc connector design prevent signal attenuation?

A: The ClickLoc connector provides a secure mechanical lock that maintains a constant 75 ohm characteristic impedance. It is essential to keep the connection interface free of oil, moisture, or metallic debris, as surface contamination can increase contact resistance and induce noise into the vibration signal chain.

Field Installation Guidelines

• Mounting Stability: Secure the probe in a rigid, non-resonant mounting bracket. Any mechanical vibration of the bracket itself will be interpreted as shaft displacement, resulting in erroneous condition monitoring data.
• Shielding and Grounding: Maintain shield continuity from the probe tip to the monitoring unit. Do not allow the shield to contact the machine casing at any location other than the designated grounding point to avoid ground loops.
• Gap Adjustment: Prior to locking the probe, rotate the housing to adjust the air gap. Monitor the Proximitor output with a high-impedance digital multimeter until the -10 VDC nominal center-gap target is achieved.
• Cable Routing: Route the coaxial lead through grounded conduit to provide protection against EMI and physical impact. Adhere strictly to the minimum bend radius of the coaxial cable to prevent structural deformation of the inner conductor and dielectric.
