Bently Nevada 330905-00-08-10-02-00 3300 NSv Proximity Probe

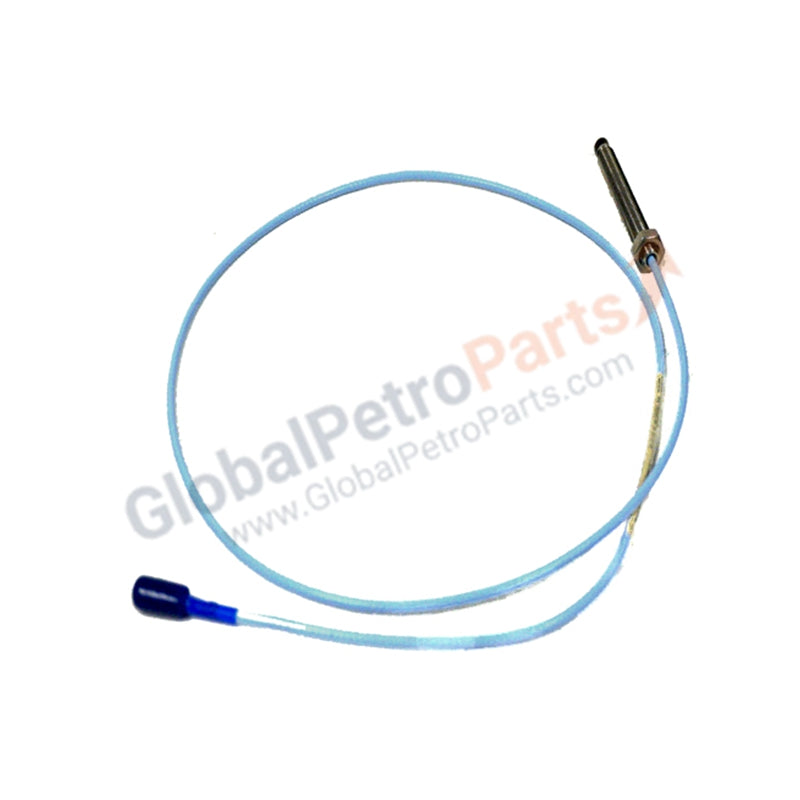

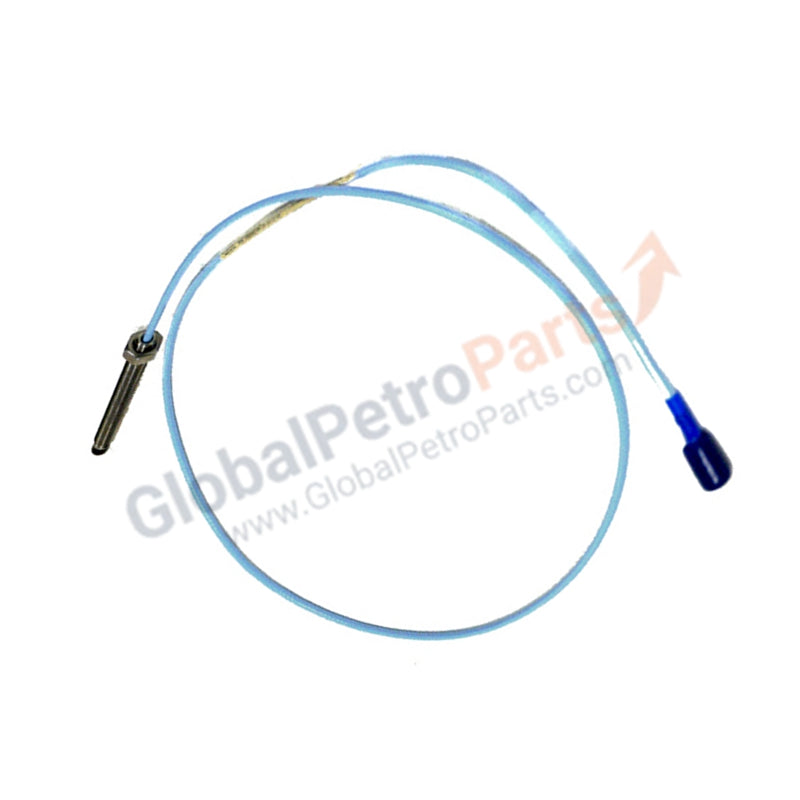

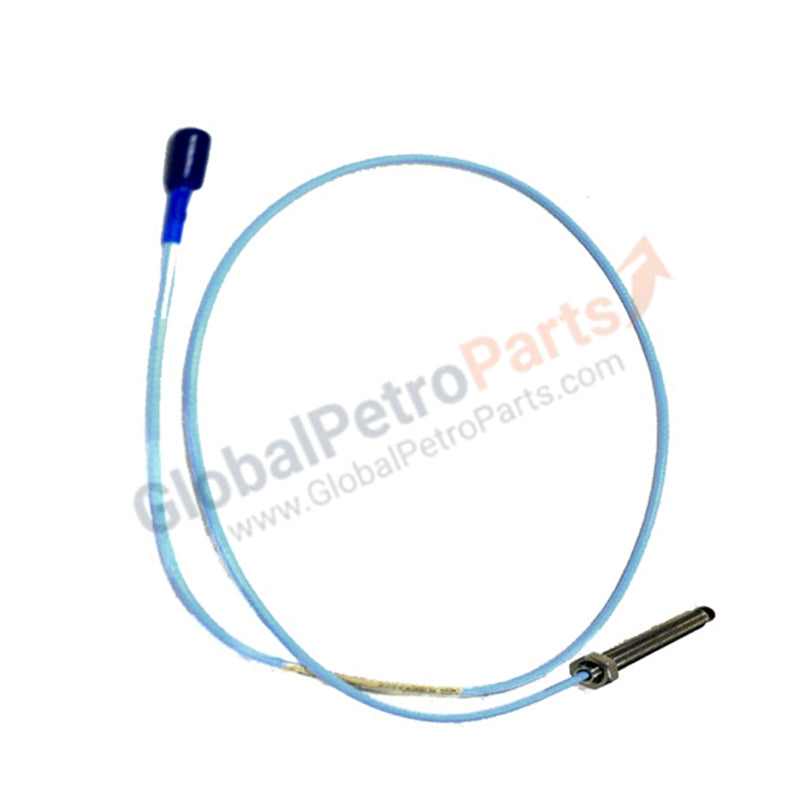

Configured for precision displacement measurement in restricted installation envelopes, the Bently Nevada 330905-00-08-10-02-00 (330905 Proximity Probe) provides direct physical signal transduction via eddy-current induction across machinery monitoring platforms.

Suffix Breakdown & Model Matrix

• 330905: Base Model (3300 NSv Proximity Probe, M10 x 1 thread, without armor)
• -00: Unthreaded Length (0 mm)
• -08: Overall Case Length (80 mm)
• -10: Total Length (1.0 meter)
• -02: Connector and Cable-Type (Miniature coaxial ClickLoc connector, standard cable)
• -00: Agency Approval (Not required)

Hardware Specifications

Mechanical Monitoring & TSI Characteristics

The 3300 NSv system relies on eddy-current probe scaling to convert shaft target distance into a linear voltage signal. System accuracy is contingent upon gap voltage validation; during commissioning, the transducer must be positioned to achieve a -10 VDC nominal center-gap reading at the Proximitor output. Maintaining this set point ensures the displacement waveform remains within the linear operating region of the probe. In high-density monitoring installations, cross-talk suppression must be observed; installers must ensure the 75 ohm coaxial signal path remains isolated from high-frequency noise and that the cable shield is consistently bonded to the system common at the Proximitor interface.

Frequently Asked Questions

Q: Does the lack of armor on this model affect installation requirements?

A: Yes. Without the protective stainless steel armor, the FEP-insulated coaxial cable is susceptible to mechanical abrasion and fluid ingress. Cable routing must be restricted to protected conduit, and the minimum bend radius must be strictly maintained to prevent dielectric deformation.

Q: Can this probe be hot-swapped while the monitoring system is powered?

A: Bently Nevada 3300 NSv systems are generally not designed for live-insertion. Ensure the monitor channel is bypassed or the system is powered down before disconnecting the ClickLoc connector to prevent potential electrical transients or false machine trips.

Field Installation Guidelines

• Mounting Stability: Secure the probe within a rigid, non-resonant mounting bracket. Any mechanical deflection of the bracket assembly relative to the shaft will introduce measurement artifacts into the vibration orbit data.
• Shielding and Grounding: Maintain shield continuity from the probe tip to the monitoring unit. Do not allow the shield to contact the machine casing or other metallic structures, as this creates ground loops that introduce electrical noise.
• Gap Adjustment: Before tightening locking nuts, rotate the probe housing to adjust the air gap. Monitor the Proximitor output with a high-impedance digital multimeter to verify the -10 VDC center-gap target.
• Cable Routing: Route the coaxial lead through grounded conduit to provide protection against EMI. Adhere to the minimum bend radius to prevent structural damage to the inner conductor and dielectric insulation.
