Bently Nevada 330905-00-25-05-02-05 3300 NSv Proximity Probe

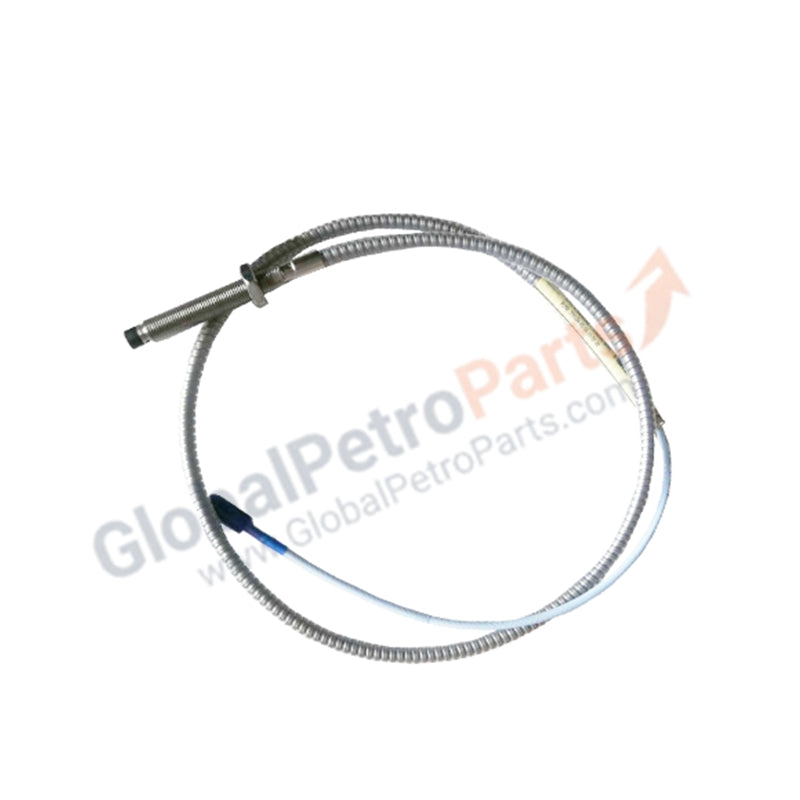

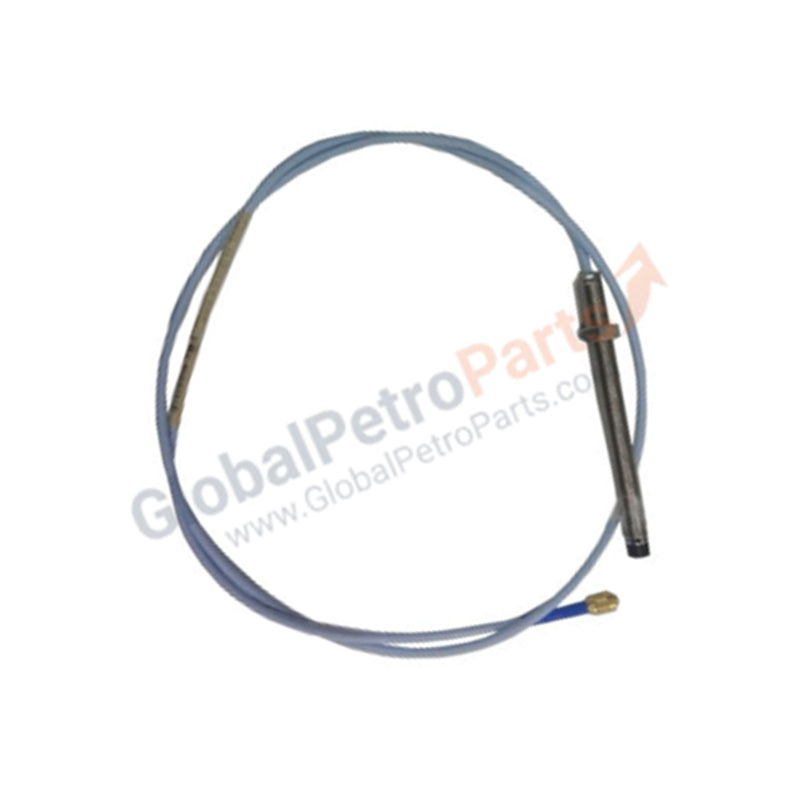

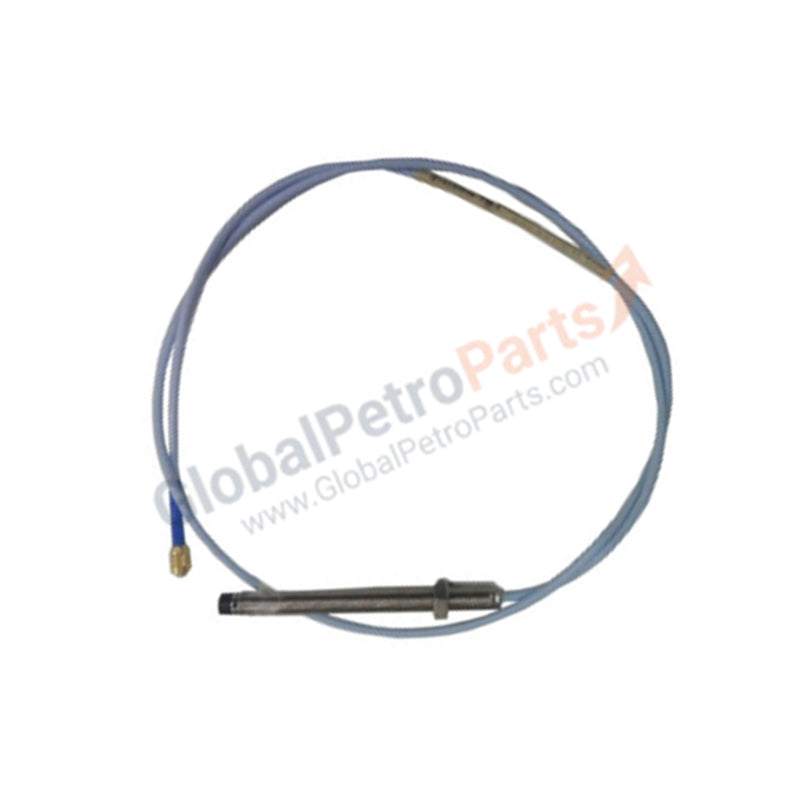

Configured for non-contacting vibration and displacement measurement in the 3300 NSv transducer system, the Bently Nevada 330905-00-25-05-02-05 (330905 Proximity Probe) provides direct physical signal transduction for machinery monitoring.

Suffix Breakdown & Model Matrix

Hardware Specifications

Eddy-Current Probe Scaling and Gap Voltage Validation

The 3300 NSv system requires precise gap voltage validation to ensure linear measurement performance. The probe operates with a target -10 VDC nominal gap voltage when positioned at the center of the linear range relative to the target material. The transducer system is calibrated to provide a sensitivity of 7.87 V/mm (200 mV/mil). Maintenance personnel must verify that the output remains within the linear range; readings outside this range indicate incorrect probe positioning or physical interference, which may negatively influence rotor dynamics data accuracy. Cross-talk suppression should be maintained by adhering to the minimum physical separation distances between adjacent probes to prevent frequency interference.

Frequently Asked Questions

Q: Is the ClickLoc connector assembly field-serviceable?

A: No. The ClickLoc connector is factory-molded to the FEP-insulated cable. Cutting, splicing, or attempting to repair the connector will alter the electrical impedance and invalidate the system calibration.

Q: Can this probe be installed in environments exceeding 177 deg C?

A: No. Exceeding the specified operating temperature range will result in degradation of the polyphenylene sulfide (PPS) tip and the internal potting materials, leading to premature failure and inaccurate vibration data.

Field Installation Guidelines

• Mechanical Mounting: Install the probe using the M10 x 1 threaded body. Use jam nuts to secure the probe position relative to the target shaft. Ensure the probe is mounted in a rigid, vibration-free bracket to prevent structural resonance.
• Grounding and Shielding: Route the 75 Ohm coaxial cable away from high-current power cables and variable frequency drive (VFD) output leads to minimize electromagnetic interference (EMI). Ground the cable shield only at the monitoring system end to prevent ground loops.
• Connector Integrity: Inspect the ClickLoc connector for contamination prior to mating. Ensure the connection is fully seated to maintain the integrity of the signal path and prevent environmental ingress.
• Calibration: Perform a system verification after installation by measuring the gap voltage at the Proximitor sensor output to confirm it aligns with the -10 VDC target at the desired mechanical gap.
