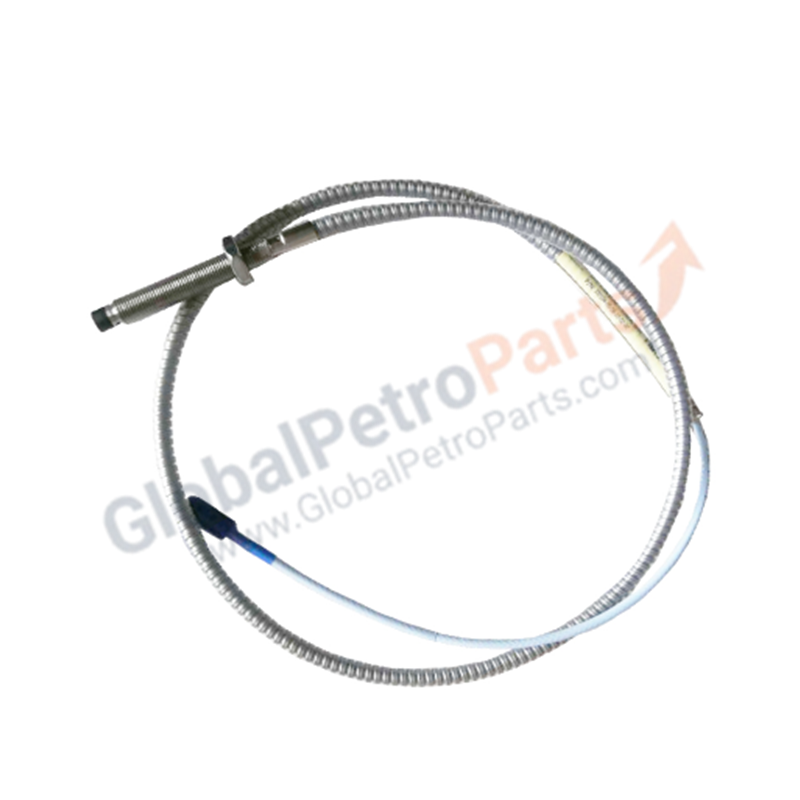

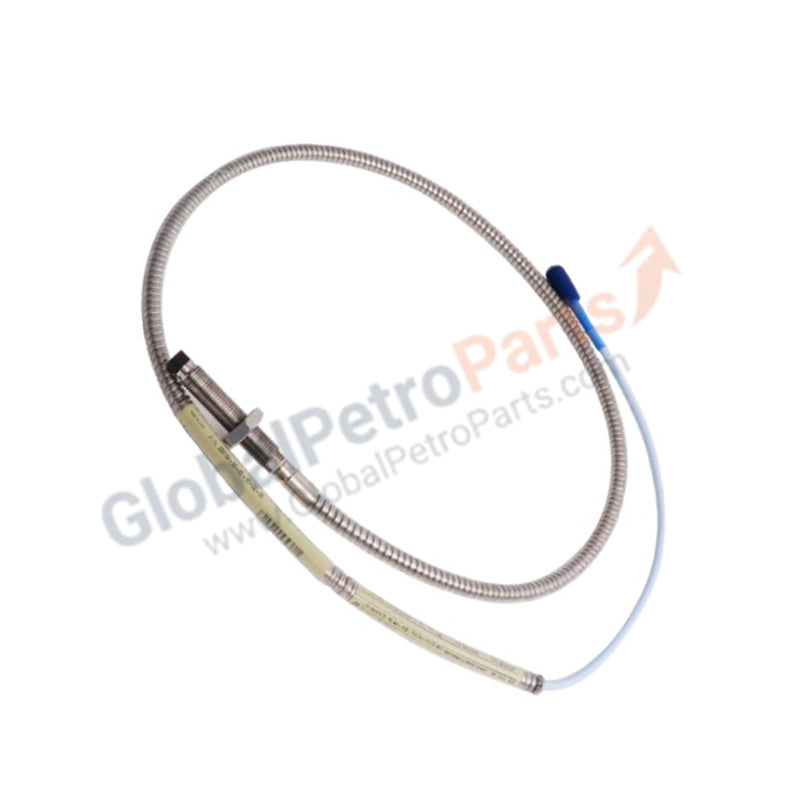

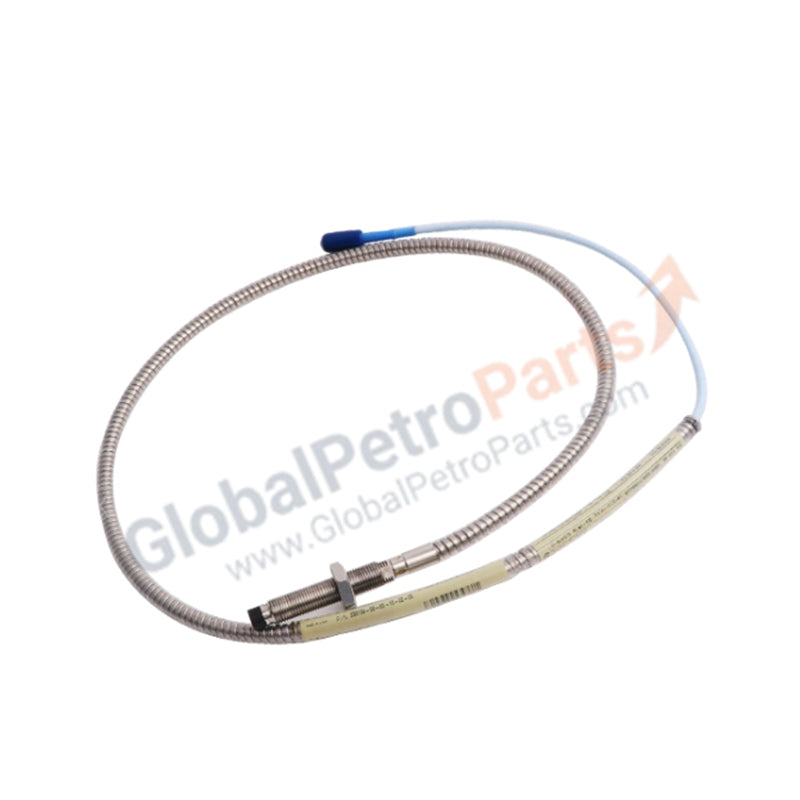

Bently Nevada 330909-00-60-10-02-00 3300 NSv Proximity Probes

Configured for high-frequency displacement measurement in small-shaft machinery protection networks, the Bently Nevada 330909-00-60-10-02-00 (330909-00-60-10-02-00 3300 NSv Proximity Probes) provides direct physical signal acquisition for monitoring rotor dynamics.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 330909-00-60-10-02-00 operates as an inductive sensor requiring a matched 3300 NSv Proximitor. The system is designed to provide a linear output of 7.87 V/mm (200 mV/mil). Installation requires precise adjustment of the probe tip to achieve a static gap voltage of -10 VDC. Deviation from this target midpoint within the linear range results in signal distortion. Correct scaling is required to capture rotor dynamic phenomena, such as sub-micron radial vibrations and shaft centerline changes, while avoiding cross-talk effects between adjacent sensors in the machine casing.

Frequently Asked Questions

Q: Can this probe be used with 3300 XL standard Proximitors?

A: No. The 3300 NSv probes are specifically engineered with distinct coil geometry and frequency characteristics requiring the dedicated 3300 NSv Proximitor Sensor to maintain linear response.

Q: What are the primary constraints when mounting multiple probes?

A: Maintain minimum separation distances between probe tips to prevent electromagnetic interference and cross-talk, which can introduce artificial noise into the vibration monitoring signal.

Field Installation Guidelines

1. Gap Validation: Insert the probe until it contacts the shaft, then retract to achieve the specified static gap voltage of -10 VDC as measured at the Proximitor output.
2. Mounting Integrity: Utilize a lock nut to secure the probe position after calibration. Ensure the housing is free from mechanical stress that could cause drift due to thermal expansion.
3. Cable Handling: Protect the coaxial cable from sharp bends and mechanical strain. Ensure the ClickLoc connector is fully seated to prevent impedance variations.
4. Grounding: Ensure the transducer system shares a common instrument ground with the monitor to minimize ground loops and high-frequency noise injection.
