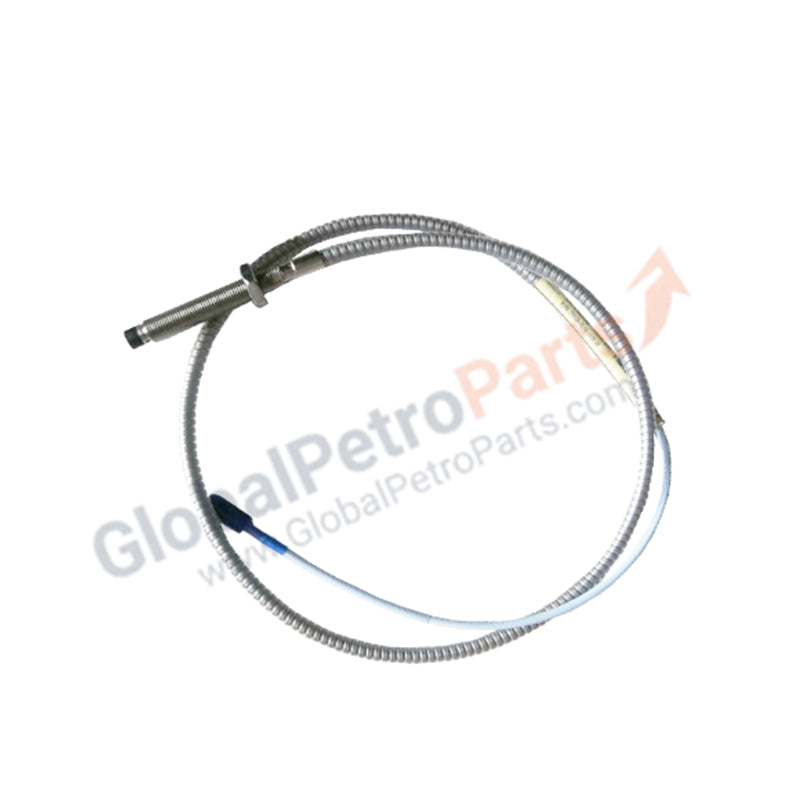

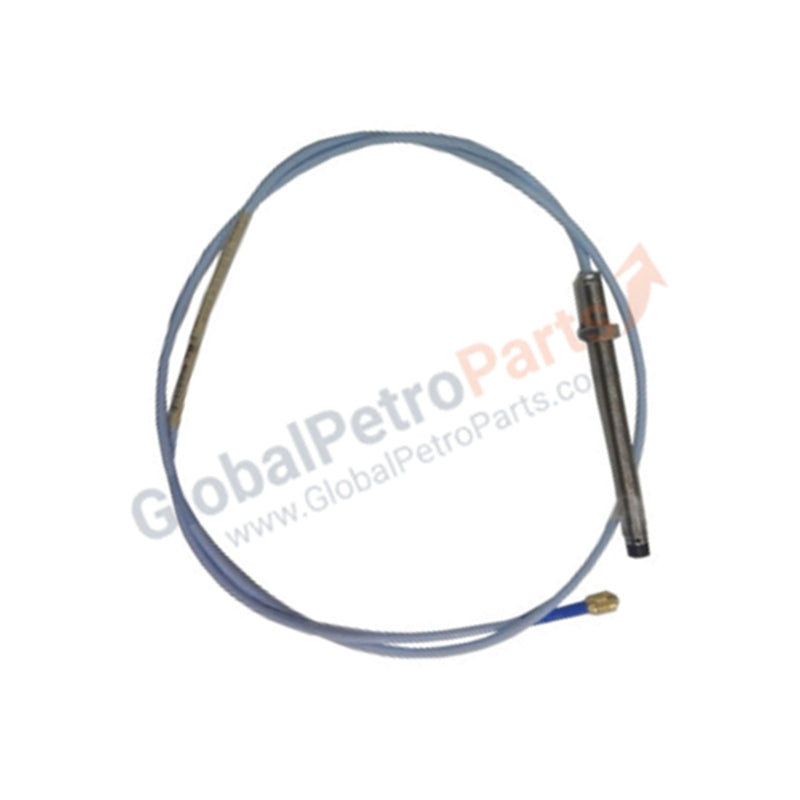

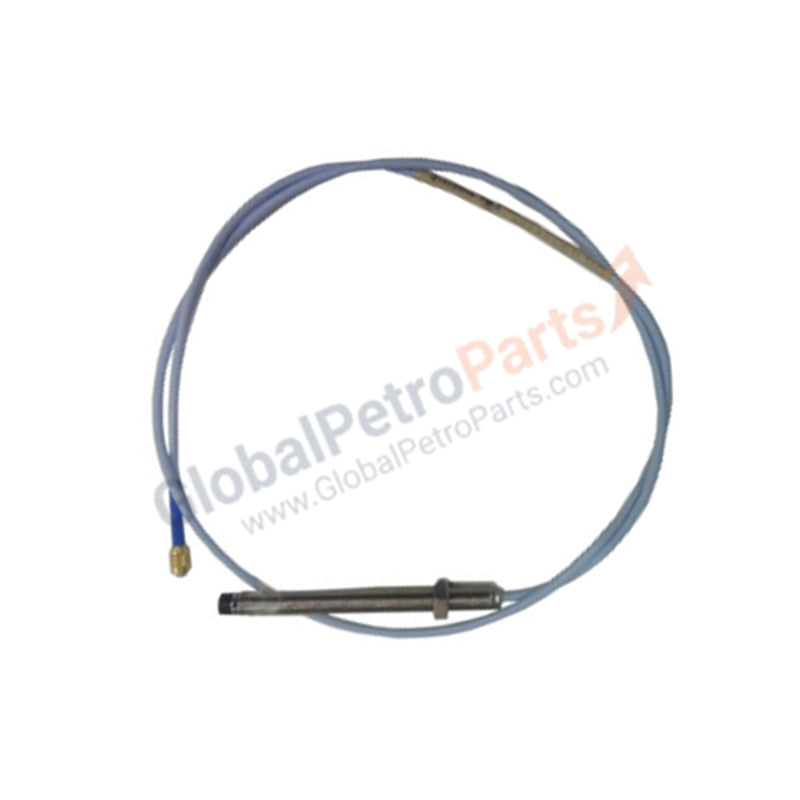

Bently Nevada 330909-00-60-10-02-05 3300 NSv Proximity Probe

Configured for high-frequency displacement measurement in rotating machinery protection networks, the Bently Nevada 330909-00-60-10-02-05 (330909-00-60-10-02-05 3300 NSv Proximity Probe) provides direct physical signal acquisition via electromagnetic induction for rotor position monitoring.

Suffix Breakdown & Model Matrix

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 330909-00-60-10-02-05 functions by converting target distance changes into inductance variations, which the associated Proximitor Sensor translates into a linear voltage output of 7.87 V/mm (200 mV/mil). Accurate rotor dynamic analysis requires the probe to be installed at a static gap voltage of -10 VDC. Failure to maintain this target midpoint within the linear measurement range can lead to signal clipping or measurement errors during peak-to-peak vibration excursions. To ensure signal integrity, practitioners must manage cross-talk suppression by maintaining specified physical separation when mounting multiple probes within the same machine plane.

Frequently Asked Questions

Q: Can the ClickLoc connector be exposed to high-vibration environments without degradation?

A: The ClickLoc connector is designed to maintain electrical continuity under mechanical load; however, it must be fully seated and protected by its integrated armor to prevent cable strain or intermittent signal loss.

Q: Is it necessary to recalibrate the Proximitor when replacing a probe?

A: Yes, each probe is part of a calibrated system. Replacing the probe or cable requires verification of the system's linear range and gap voltage to maintain measurement accuracy.

Field Installation Guidelines

1. Thread Engagement: Ensure the 3/8-24 UNF threads are clean and free of debris. Use the jam nut to lock the probe into position once the -10 VDC static gap is achieved.
2. Shield Grounding: Maintain shield integrity from the probe tip through the entire coaxial run to the terminal block to prevent high-frequency noise injection.
3. Cable Routing: Install the cable within flexible conduit where physical protection is required. Avoid exceeding the minimum bend radius of the coaxial cable to prevent impedance discontinuities.
4. Connector Mating: Inspect the ClickLoc interface for cleanliness before mating. Ensure the lock mechanism is engaged to provide consistent contact resistance.
