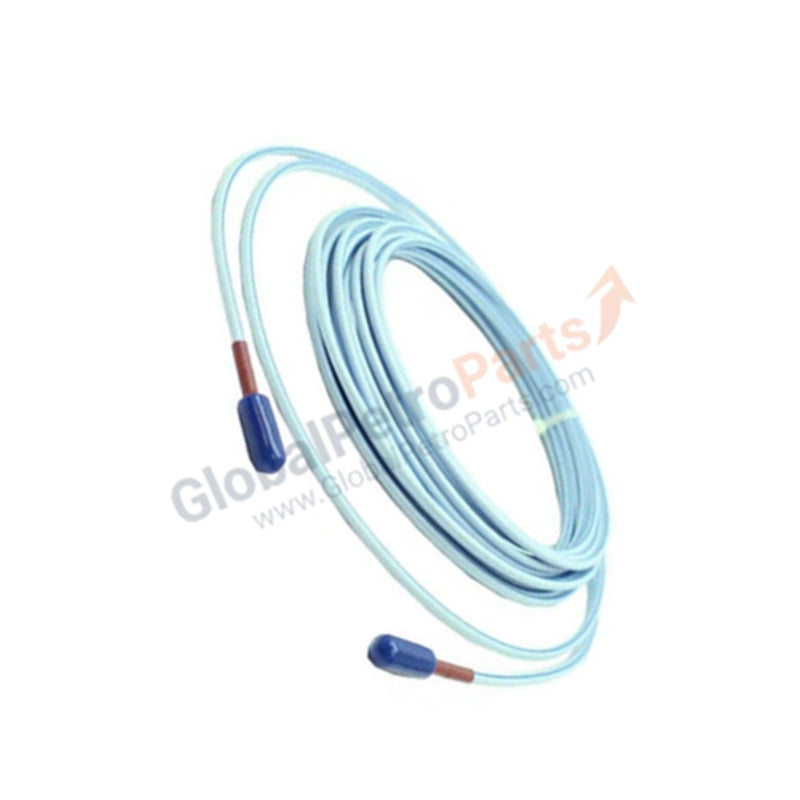

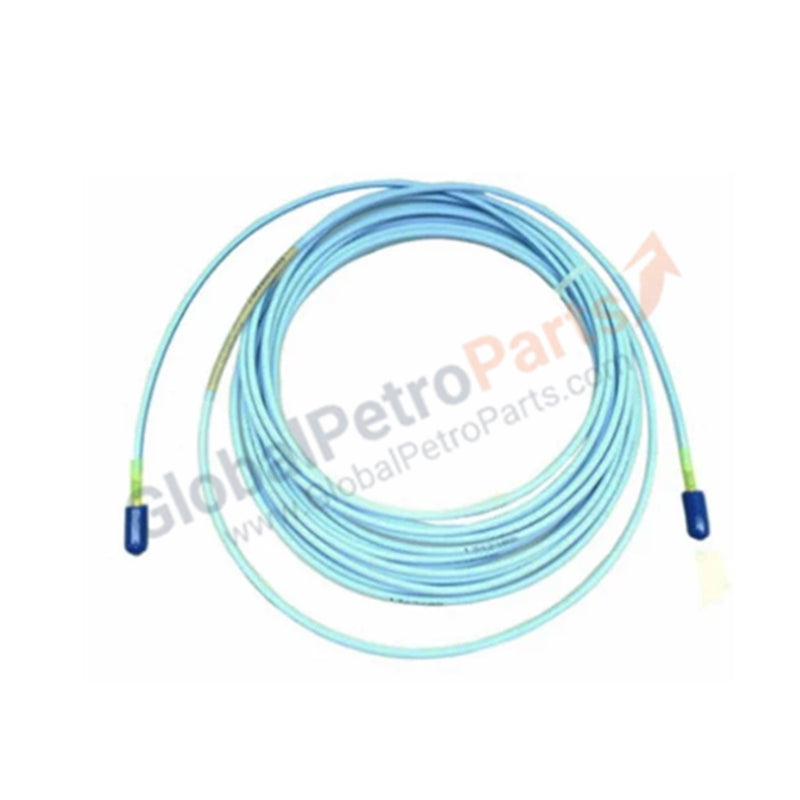

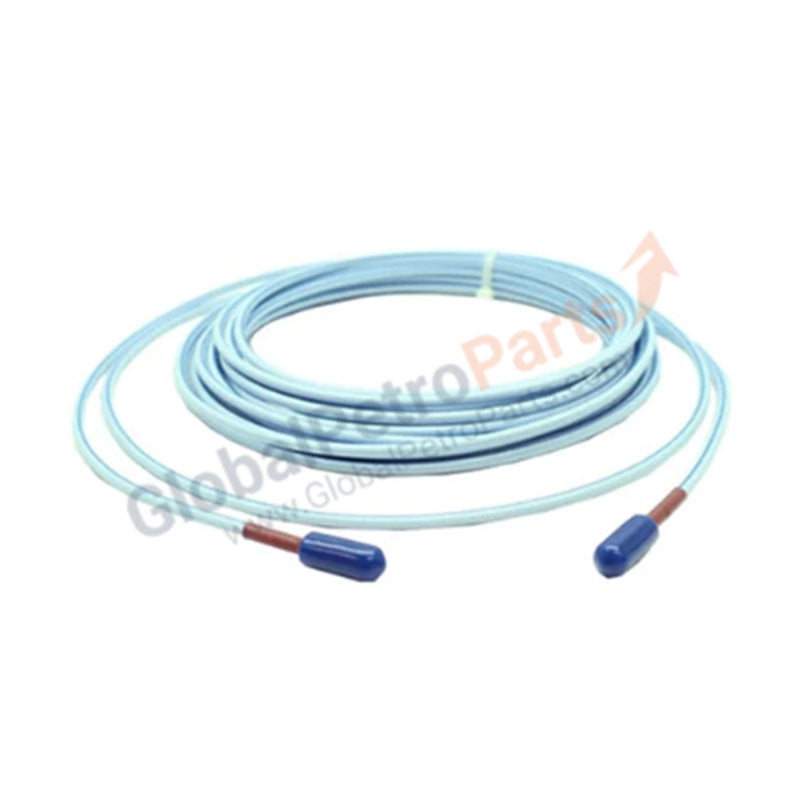

Bently Nevada 330910-00-05-10-02-00 3300 NSv Proximity Probe

Configured for high-frequency displacement measurement in rotating machinery protection networks, the Bently Nevada 330910-00-05-10-02-00 (330910-00-05-10-02-00 3300 NSv Proximity Probe) provides direct physical signal acquisition for rotor position monitoring.

Suffix Breakdown & Model Matrix

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 330910-00-05-10-02-00 utilizes electromagnetic induction to detect target displacement. Successful rotor dynamics analysis, including shaft vibration and centerline monitoring, requires precise system integration with a matched 3300 NSv Proximitor. The probe must be mechanically set to a static gap voltage of -10 VDC at the midpoint of its linear range. Deviation from this target introduces non-linearity and signal distortion. Proper installation mandates cross-talk suppression by maintaining adequate physical clearance between adjacent sensors to avoid induced signal interference within the common measurement plane.

Frequently Asked Questions

Q: Is it permissible to field-cut the coaxial cable to adjust total system length?

A: No. The 3300 NSv system is a calibrated unit comprising the probe, extension cable, and Proximitor. Altering the cable length changes the system impedance, which introduces measurement errors and requires laboratory-grade recalibration.

Q: What is the significance of the -10 VDC static gap target?

A: The -10 VDC target represents the calibrated linear midpoint of the transducer system. Operating at this value ensures maximum linear range for capturing peak-to-peak vibration signals without clipping.

Field Installation Guidelines

1. Thread Engagement: Ensure the M8 x 1.25 threads are clean. Secure the probe with the provided jam nut once the -10 VDC gap voltage is confirmed using a high-impedance digital multimeter.
2. Shielding and Grounding: Maintain the coaxial shield continuity from the probe connector back to the Proximitor terminal block. Use a common instrument ground to minimize common-mode noise.
3. Cable Routing: Protect the coaxial cable from mechanical abrasion. Maintain a minimum bend radius per manufacturer standards to prevent deformation of the internal dielectric.
4. Connector Mating: Inspect the ClickLoc interface for cleanliness. Fully engage the locking mechanism to ensure stable contact resistance, preventing intermittent signal loss during machine operation.
