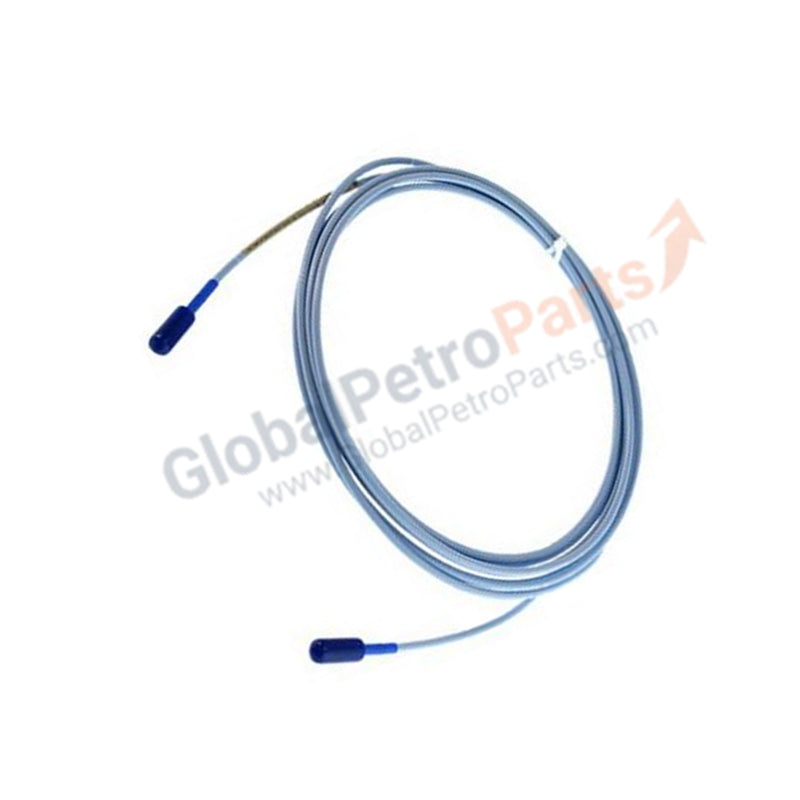

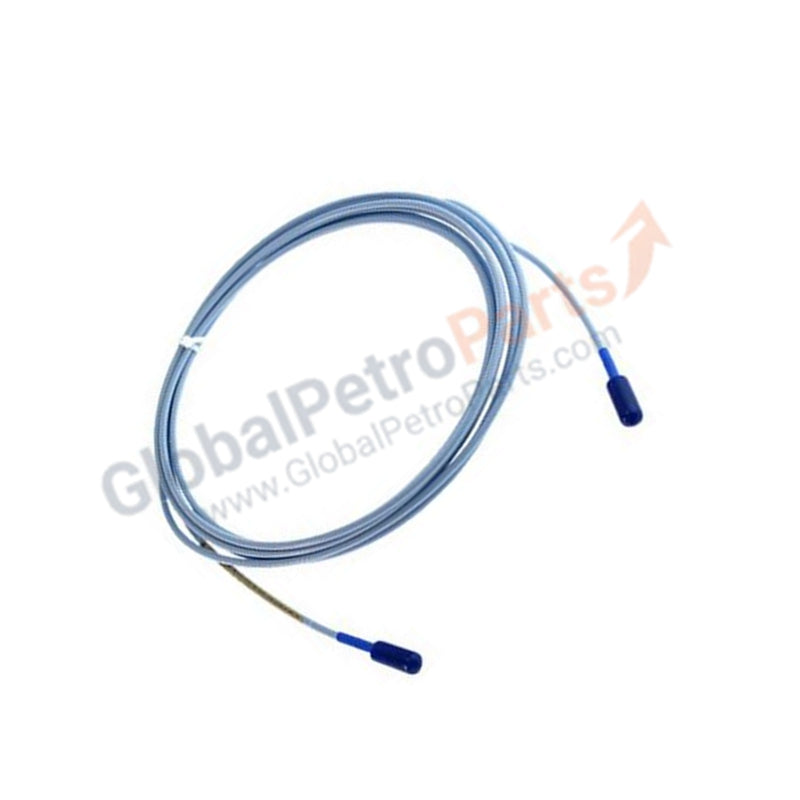

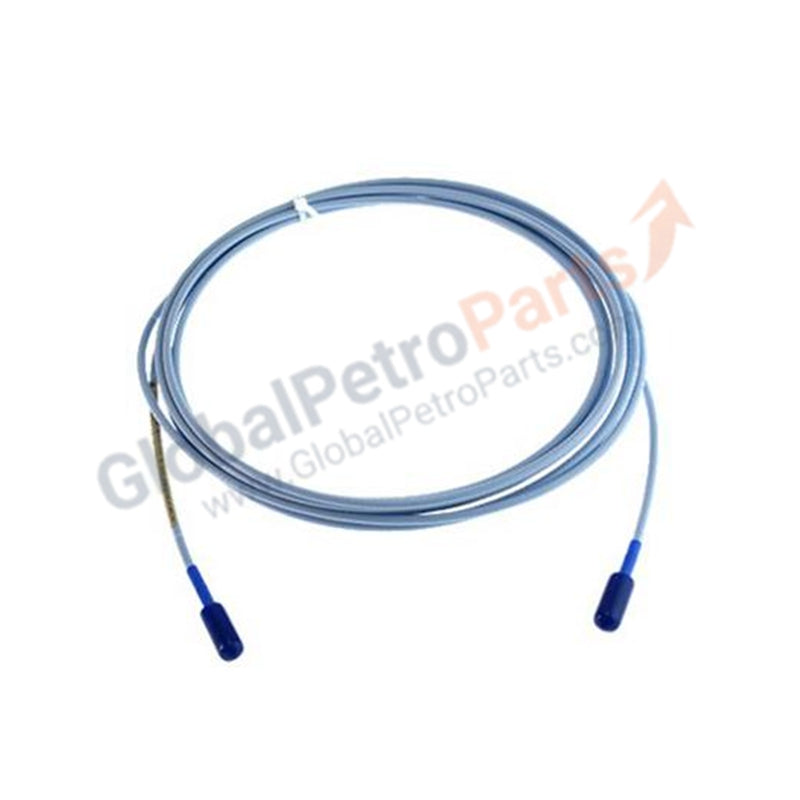

Bently Nevada 330930-040-00-00 3300 XL Standard Extension Cable

Configured for signal transmission between proximitor sensors and monitoring systems in the Bently Nevada 3300 XL machine protection platform, the Bently Nevada 330930-040-00-00 (330930-040-00-00) extension cable provides direct physical coupling for vibration monitoring loops.

Hardware Specifications

Rotor Dynamics and Signal Integrity

The 3300 XL extension cable architecture is engineered to maintain system calibration within the 0.254 mm/V (100 mV/mil) sensitivity standard required for eddy-current transducer systems. The cable construction utilizes a specialized coaxial design to minimize signal attenuation and capacitance shifts that could otherwise introduce errors in gap voltage measurements. Maintaining the integrity of the coaxial shield is imperative to prevent radio frequency interference (RFI) from influencing the transducer output. Any physical degradation or improper termination of the connector interfaces directly impacts the rotor dynamic signal quality, specifically regarding the linearity of the gap voltage versus probe-to-target distance.

Frequently Asked Questions

Q: Does the inclusion of this extension cable affect the system calibration?

A: Yes. The 3300 XL system is calibrated as a complete loop, including the probe, extension cable, and proximitor sensor. Replacing an extension cable with one of a different length requires a system recalibration to maintain the specified scale factor.

Q: Can this cable be used in applications requiring high mechanical protection?

A: This specific part number (330930-040-00-00) does not include stainless steel armor. For installations where the cable is exposed to mechanical abrasion or heavy industrial fluids, an armored cable variant should be utilized.

Field Installation Guidelines

1. Route the extension cable through dedicated electrical conduit to prevent mechanical stress on the coaxial connectors.
2. Ensure the connector interface is clean and dry; contamination at the junction can introduce impedance changes and signal noise.
3. Tighten coaxial connections using finger-tight pressure; avoid using pliers or wrenches as excessive torque may damage the center pin or the dielectric insulator.
4. Secure the cable with plastic cable ties to prevent vibration-induced fretting at the connection point.
5. Verify the total system length (Probe + Extension Cable) matches the intended proximitor sensor calibration length to ensure the -10 VDC to -18 VDC operating gap range is maintained.
